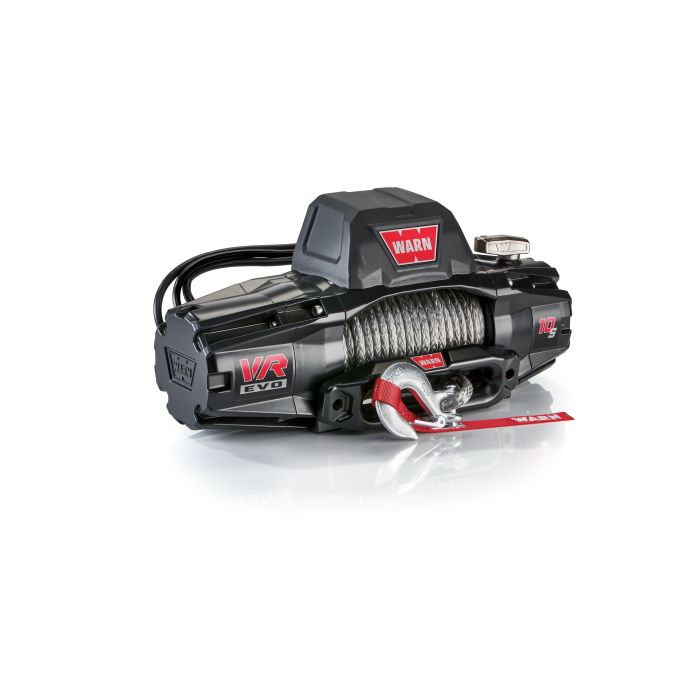

WARN VR EVO Series Winch
Legendary Warn Recovery: Warn offers the most reliable winch in the marketplace. A winch is only good when it works when you are in a bind. There is nothing worse than trying to use a winch that has been sitting on the front of your Jeep for months and your stuck in that nasty mud hole with a defective winch that does not work. The Warn brand name is know world wide for dependable winches that you can trust with endless reviews and customers proving it.
Trail Ready Ultimate Pulling Power: The 8,000 lb winch offers fast, efficient pulling power, while the 10,000 lb winch has the perfect blend of speed and power. Then there is the 12,000 lb winch that is made for heavier loads and those larger vehicles. The perfect blend of options for every application.
Standard Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
Overall Winch Dimensions: 21" L x 6.3" D x 10.1" H (534mm L x 160.5mm D x 256mm H)
| VR EVO 8, VR EVO 8-S SPECS/PART NUMBERS |
| Part Numbers: PN 103250 (VR EVO 8), 103251 (VR EVO 8-S) |
| Rated Line Pull: 8,000 lbs (3629 kgs) |
| Motor: 12V DC, Series Wound™ |
| Electrical Controls: Albright Contactor |
| Remote Control: Wired remote with 11.5' (3.5m) Lead |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 218:1 |
| Clutch (freespooling): Rotating Ring Gear Clutch |
| Brake: Spring Brake |
| Drum Diameter/Length: 2.5"/9.0" (6.73cm/23cm) |
| Weight: Shipping Steel - 83.53 lbs (37.89 kgs), Shipping Synthetic - 72.40 lbs (32.84 kgs) |
| Rope: Steel - 5/16" x 90' (8mm x 27.4m), Synthetic - 3/8" x 90' (9.5mm x 27.4m) |
| Fairlead: Steel - Roller, Synthetic - Die Cast Hawse |
| Recommended Battery: 650 CCA min. for winching |
| Battery Leads: .098" x 6.5' (25mm x 2m) |
| Finish: Powder coat finish over primer undercoat |
| Warranty: Limited Lifetime |
| VR EVO 8, VR EVO 8-S: 12V DC Performance Specs (based on first layer of drum) | |||
| Line Pull Lbs (Kgs) |
Line Speed Ft/min (M/min) |
Motor Current |
Pull by layer layer/Lbs (Kgs) |
| 0 | 24.8 (7.6) | 57 amps | 1/8000 (3630) |
| 2000 (910) | 13.1 (4.0) | 122 amps | 2/6716 (3046) |
| 4000 (1810) | 9.6 (2.9) | 183 amps | 3/5788 (2625) |
| 6000 (2720) | 7.6 (2.3) | 242 amps | 4/5085 (2306) |
| 8000 (3630) | 6.0 (1.8) | 298 amps | |
| VR EVO 10, VR EVO 10-S SPECS/PART NUMBERS |
| Part Numbers: PN 103252 (VR EVO 10), 103253 (VR EVO 10-S) |
| Rated Line Pull: 10,000 lbs (4536 kgs) |
| Motor: 12V DC, Series Wound™ |
| Electrical Controls: Albright Contactor |
| Remote Control: Wired Remote with 11.5' (3.5m) Lead |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 218:1 |
| Clutch (freespooling): Rotating Ring Gear Clutch |
| Brake: Spring Brake |
| Drum Diameter/Length: 2.5"/9.0" (6.73cm/23cm) |
| Weight: Shipping Steel - 91.93 lbs (41.7 kgs), Shipping Synthetic - 72.40 lbs (32.84 kgs) |
| Rope: Steel - .354" x 90' (9mm x 27.4m), Synthetic - 3/8" x 90' (9.5mm x 27.4m) |
| Fairlead: Steel - Roller, Synthetic - Die Cast Hawse |
| Recommended Battery: 650 CCA min. for winching |
| Battery Leads: .098" x 6.5' (25mm x 2m) |
| Finish: Powder coat finish over primer undercoat |
| Warranty: Limited Lifetime |
| VR EVO 10, VR EVO 10-S: 12V DC Performance Specs (based on first layer of drum) | |||
| Line Pull Lbs (Kgs) |
Line Speed Ft/min (M/min) |
Motor Current |
Pull by layer layer/Lbs (Kgs) |
| 0 | 27.1 (8.3) | 58 amps | 1/10000 (4536) |
| 2000 (910) | 13.9 (4.2) | 125 amps | 2/8226 (3731) |
| 4000 (1810) | 9.9 (3.0) | 185 amps | 3/6987 (3169) |
| 6000 (2720) | 8.2 (2.5) | 244 amps | 4/6072 (2754) |
| 8000 (3630) | 6.5 (2.0) | 303 amps | 5/5370 (2436) |
| 10000 (4536) | 5.2 (1.6) | 358 amps | |
| VR EVO 12, VR EVO 12-S SPECS/PART NUMBERS |
| Part Numbers: PN 103254 (VR EVO 12), 103255 (VR EVO 12-S) |
| Rated Line Pull: 12000 lbs (5443 kgs) |
| Motor: 12V DC, Series Wound™ |
| Electrical Controls: Albright Contactor |
| Remote Control: Wired Remote 11.5' (3.5m) Lead |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 234:1 |
| Clutch (freespooling): Rotating Ring Gear Clutch |
| Brake: Spring Brake |
| Drum Diameter/Length: 2.5"/9.0" (6.73cm/23cm) |
| Weight: Shipping Steel - 90.81 lbs (41.19 kgs), Shipping Synthetic - 72.27 lbs (32.84 kgs) |
| Rope: Steel - 3/8" x 85' (9.5mm x 25.9m), Synthetic - 3/8" x 90' (9.5mm x 27.4m) |
| Fairlead: Steel - Roller, Synthetic - Die Cast Hawse |
| Recommended Battery: 650 CCA min. for winching |
| Battery Leads: .098" x 6.5' (25mm x 2m) |
| Finish: Powder coat finish over primer undercoat |
| Warranty: Limited Lifetime |
| VR EVO 12, VR EVO 12-S: 12V DC Performance Specs (based on first layer of drum) | |||
| Line Pull Lbs (Kgs) |
Line Speed Ft/min (M/min) |
Motor Current |
Pull by layer layer/Lbs (Kgs) |
| 0 | 26.2 (8.0) | 55 amps | 1/12000 (5443) |
| 2000 (910) | 13.9 (4.2) | 120 amps | 2/9801 (4446) |
| 4000 (1810) | 9.5 (2.9) | 178 amps | 3/8283 (3757) |
| 6000 (2720) | 8.1 (2.5) | 234 amps | 4/7173 (3254) |
| 8000 (3630) | 6.8 (2.1) | 288 amps | 5/6324 (2869) |
| 10000 (4536) | 4.9 (1.5) | 337 amps | |
| 12000 (5440) | 4.0 (1.2) | 396 amps | |
The WARN VR EVO Series Winch sets the standard for what consumers are looking for in the world of winches. Offering fast line speeds with lower amp draw at a price that is extremely competitive. Made with a bold tactical look giving your vehicle an aggressive style with premium recovery equipment. Whether you are attending an off-road event in your Jeep Wrangler JK and get stuck in the mud, using your Jeep Wrangler JL to pull out out some bushes on your property, or need assistance climbing those overly steep obstacles in your rock buggy Warn has you covered. The hardest working standard-duty winch that Warn has ever offered which is built to outlast the competition and your expectations. Made with a powerful series wound motor and a 3-stage planetary gear train for ultimate performance. The IP68-rated waterproof winch keeps the elements out while the high-end Albright contactor delivers maximum reliability. Available in 8,000 lb, 10,000 lb or 12,000 lb capacities with the option for a synthetic or steel line and a versatile control pack that can be re-located. Designed and tested by Warn engineers in the USA.
| Product Name | WARN VR EVO Series Winch |
|---|---|
| Dropdown Labels | Capacity Rope Style |
| Hazmat | No |
| Item Returns | This item can be returned |
-
