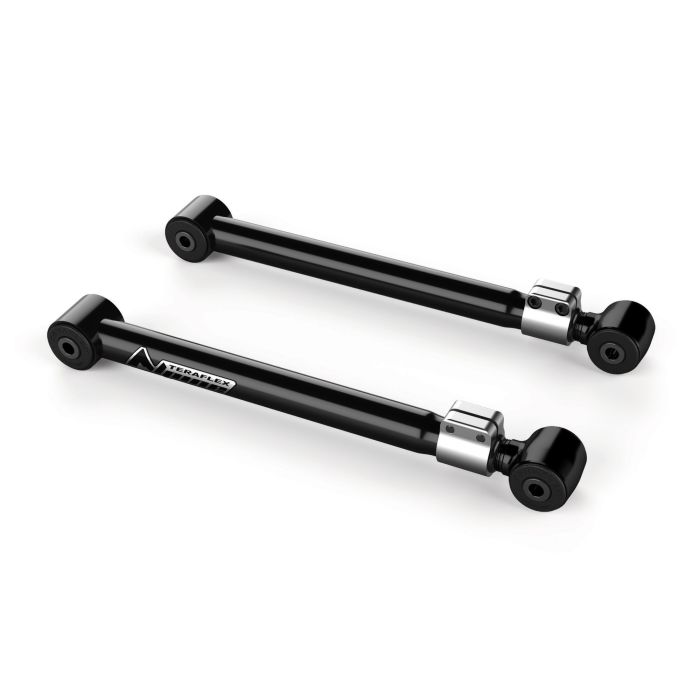

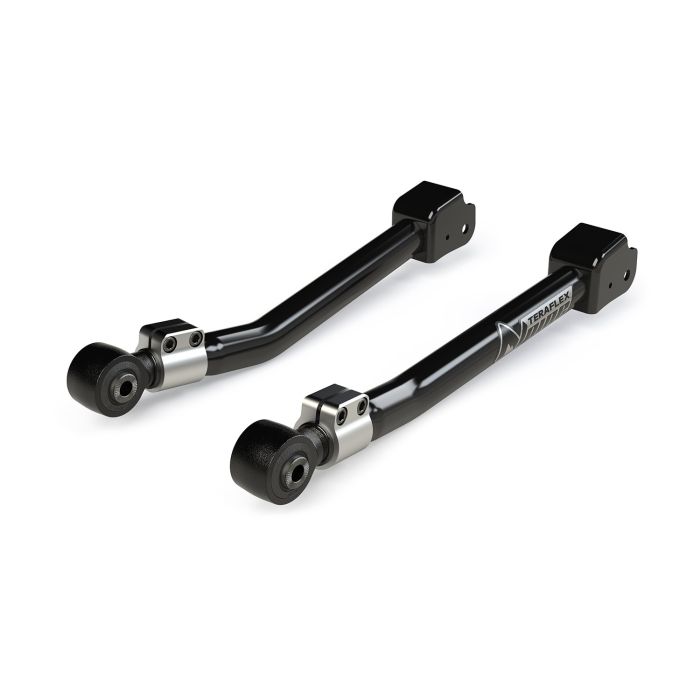

Teraflex Alpine Adjustable Control Arms for 18-20 Jeep Wrangler JL

Fully Adjustable: Teraflex’s Alpine Flexarms allow you to fine tune your caster and pinion angle angle while re-centering the axles under your Jeep Wrangler JL. The factory style bushings are designed to reduce noise, vibration, and harshness (NVH).

Heavy Duty Construction: These control arms are made from durable Drawn Over Mandrel (DOM) tubing which is finished with black e-dipped coating. The adjustment clamp collars are made from anodized 6061-T6 aluminum.

Front Upper Control Arm Specs:

• Lift Height Range: 0-4.5”
• Tube Diameter: 1-5/8” (42mm)
• Tube Wall Thickness 0.157” (4mm)
• Factory Length: 20.185” (512.699mm)
• Minimum Adjusted Length: 20” (508mm)
• Maximum Adjusted Length: 21" (533.4mm)

Front Lower Control Arm Specs:

• Lift Height Range: 0-4.5”
• Tube Diameter: 1-5/8” (42mm)
• Tube Wall Thickness 0.157” (4mm)
• Factory Length: 24” (609.6mm)
• Minimum Adjusted Length: 24” (609.6mm)
• Maximum Adjusted Length: 25.25” (641.35mm)

Rear Upper Control Arm Specs:

• Lift Height Range: 0-4.5”
• Tube Diameter: 1-5/8” (42mm)
• Tube Wall Thickness 0.157” (4mm)
• Factory Length: 17.425" (442.595mm)
• Minimum Adjusted Length: 17-3/8" (441.325mm)
• Maximum Adjusted Length: 18-1/2" (469.90mm)

Rear Lower Control Arm Specs:

• Lift Height Range: 0-4.5”
• Tube Diameter: 1-5/8” (42mm)
• Tube Wall Thickness 0.157” (4mm)
• Factory Length: 19-3/4” (501.65mm)
• Minimum Adjusted Length: 19-13/16” (503.24mm)
• Maximum Adjusted Length: 21-1/16” (535.99mm)
