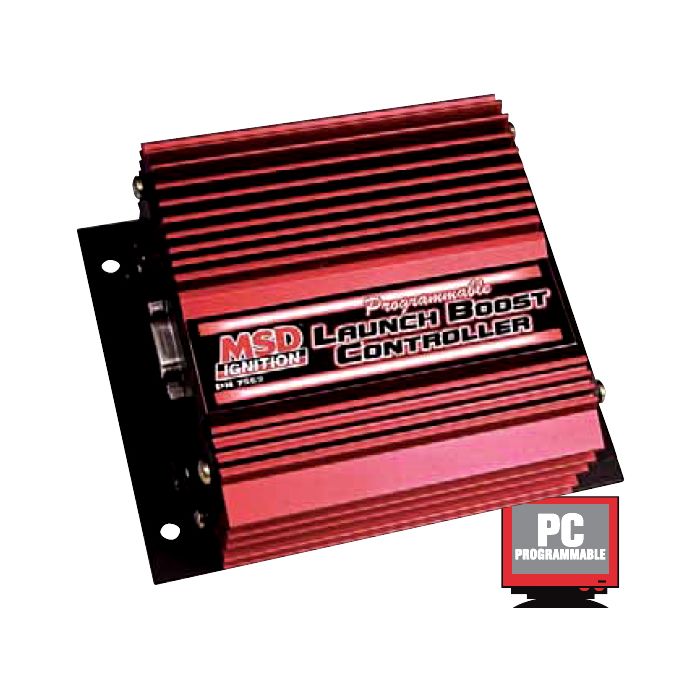

MSD PROGRAMMABLE TURBO CONTROLLER
$449.99
In stock
SKU
MSD-7562
Control over the boost pressure is achieved through a PWM output that controls a three way electrically operated air valve that is installed between the turbo and the waste gate actuator. (This can also be programmed to your particular actuator.)
To help in setting up and tuning the Controller, there is also an acquisition file that records the engine rpm, manifold pressure and the pulse width modulator output. After a pass you can save and download the file to revie review each pass. t tAbsolute control over a turbo's boost pressure during the launch through advanced programming.
Map a boost pressure curve based on time from a PC.
Ideal to control boost pressures during the hole-shot to aid in getting the tires hooked.
Program boost pressure that is used during the burnout.
Record and review 20 seconds of pressure and rpm information.
To help in setting up and tuning the Controller, there is also an acquisition file that records the engine rpm, manifold pressure and the pulse width modulator output. After a pass you can save and download the file to revie review each pass. t tAbsolute control over a turbo's boost pressure during the launch through advanced programming.
Map a boost pressure curve based on time from a PC.
Ideal to control boost pressures during the hole-shot to aid in getting the tires hooked.
Program boost pressure that is used during the burnout.
Record and review 20 seconds of pressure and rpm information.
This stand alone microprocessor boost controller is exactly what-over-the-top turbo powered cars need. This Control uses an extremely fast micro-controller to control boost pressure via an electronically operated waste gate valve. Through easy to use Pro-Data+ software, you can control the amount of boost pressure used during the burnout and map a boost curve based on time for the launch (up to 12.5 seconds).
| Wheel Tire Builder | No |
|---|---|
| White Letter Available | No |
| Product Name | MSD PROGRAMMABLE TURBO CONTROLLER |
| Hazmat | No |
| Length | 0 |
| Width | 0 |
| Depth | 0 |
| Weight | 1.250000 |
| Item Returns | This item can be returned |
