Diode Dynamics HD LED Headlight Halos for 18-20 Jeep Wrangler JL & Gladiator JT

Be the first to review this product
As low as $149.95
In stock
SKU
C-1026997
Add to Wish List Add to Compare

Features:

Construction: Proprietary durable phosphor coating, for uniform solid appearance.

Switchback Function: Multi-function PWM drivers, fully waterproof, featuring low power, high power, and turn signal modes.

LED Lights: Extremely bright, high-density LEDs that are visible even in direct sunlight.

Installation: Integrated mounting tabs for easy installation.

Complete Wiring: All wires have a durable braided wire covering. The LED has a 20-inch wire with female JST type connector. This connector may be de-pinned in order to run wires through small holes during installation. Both the input and output wire on the driver are also 20 inches each. A pigtail is included that is also 20 inches, with male spade connectors on the end to connect to factory wiring with included T-taps. You will have plenty of room to run wires anywhere you'd like.

HDHalo Technology: These HD LED halo rings have been designed to provide a perfectly uniform light when turned on. When off, the diffusing gel hides the chips, resulting in a clean, OEM appearance.

    Specifications:

  • Measured Lumens: 670 (amber), 590 (white)
  • Color Temp (CCT): 6000K
  • Power (watts): 12.05
  • Operating Voltage: 9-16V
  • Current (amps @ 13.2V): 913
  • Operating Temperature: -40C to 85C (-40F to 185F)
  • Connector(s): JST Inline Connectors, T-Tap Inputs
  • Driver Features: External, Waterproof, Linear Regulated

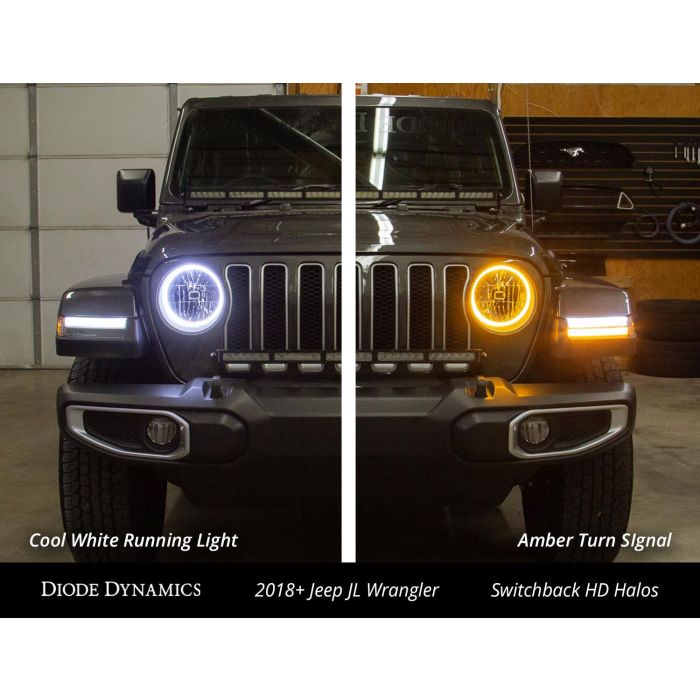

The Diode Dynamics HD LED Halo Rings are designed be absolutely the brightest, most reliable halos physically possible for your Jeep Wrangler JL or Gladiator JT. Each halo is populated with a large number of high-density (HD) LEDs, which are then coated by a diffusing gel, resulting in a perfectly uniform light when turned on. When off, the diffusing gel hides the chips, resulting in a clean, OEM appearance. All switchback halos ship with "low" priority drivers. This means that if both "low" and "high" power inputs are powered, the LED will light up in white, with low power level. This is convenient for connecting the red wire to a parking light or DRL signal, for use during the day as a high-power DRL. Then, if the white wire is connected to the headlamp power, they will dim down at night. If the yellow wire is powered at any time, the halo will light up in amber color, intended for signaling. If you'd like to use amber all the time, no problem! It will dim automatically if powered for more than two seconds, to keep it safe. This entire setup allows you to connect the halo directly as a multifunction lamp, without any external controllers.

NOTE: This product is only compatible with 2018+ Jeep JL Wrangler with halogen headlights.

More Information
Dropdown Labels Pair or Single Halo Ring
Product Name Diode Dynamics HD LED Headlight Halos for 18-20 Jeep Wrangler JL & Gladiator JT
Hazmat No
Item Returns This item can be returned
