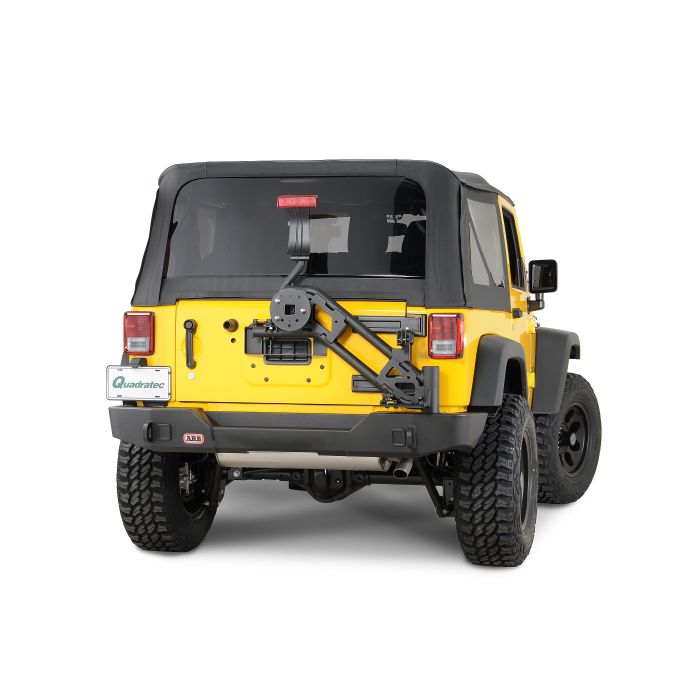

ARB Modular Rear Bumper with Swing Away Tire Carrier for 07-18 Jeep Wrangler JK
As low as
$2,191.90
In stock
SKU
C-30389
Product Features:
Recovery points manufactured from flame cut 20mm steel plate pass through the rear bumper and are welded to the mounting bracket uprights for extra reinforcement.
The rear bar recovery points also include an elongated slot so that the shackle bow can be passed through the point, allowing the shackle to pivot when pulling from slight angles.
HI-LIFT JACK POINTS:
Designed primarily for Hi-Lift brand jacks, the Hi-Lift lifting point is reinforced with 4mm steel plate to prevent distortion or damage. When the jack is inserted into the point, the lip of the jack foot locates past the internal reinforcing plate to prevent slippage.
When not in use, lifting points are fitted with a rubber plug.
WHEEL CARRIER CNC MACHINED PIVOT:
The strength of the carrier comes from the wheel carrier support being direct from the chassis.
The support tube to the chassis is a 20MnV6 carbon manganese steel micro alloyed tube with vanadium.
The wheel carrier has had extensive Finite Elemental Analysis (FEA) testing conducted alongside real world testing to ensure that the carrier exceeds the demands of the large tire combinations fitted to the JK on different road surfaces.
ROD END SYNCHRONIZING SYSTEM AND CRADLE:
The tire carrier utilizes an adjustable turnbuckle with dual rod ends to connect the wheel carrier to the vehicle's rear door.
When the door is closed, the wheel carrier is securely held within a rubber cradle to ensure a strong and quiet fitment.
This system ensures that the tire carrier swings away seamlessly synchronized with the vehicle's rear door.
HI-LIFT JACK MOUNT:
Integrated into the swing arm is a mounting platform and arm support for a Hi-Lift jack.
Heavy-duty injection molded plastic knob bolts ensure easy removal of the jack without the need for tools.
EXTENDED HIGH BRAKE LIGHT MOUNT:
The extended brake light mount incorporates provision for additional work light/reverse light and VHF/UHF/CB radio antennas.
- Vehicle specific design to suit the Jeep Wrangler JK
- Designed to accommodate up to a 40" tire
- CNC machined pivot including bronze bushings
- Rod ends used on door mechanism for smooth, symphonized opening and ease of adjustment and set up
- Hi-Lift Jack mount bracket that can be used as a step when jack not fitted
- High mount bracket includes mounts for additional rear-facing lights and VHF/CB antennas
- Urethane packer to reduce movement
- Durable steel protection for maximum vehicle protection
- Dual Hi-lift Jacking Points
- Zinc primed followed by a black powder coat finish
- Compatible with Factory Tow Package
- Integrated Recovery Points
- Provision to mount ARB mud flaps
Recovery points manufactured from flame cut 20mm steel plate pass through the rear bumper and are welded to the mounting bracket uprights for extra reinforcement.
The rear bar recovery points also include an elongated slot so that the shackle bow can be passed through the point, allowing the shackle to pivot when pulling from slight angles.
HI-LIFT JACK POINTS:
Designed primarily for Hi-Lift brand jacks, the Hi-Lift lifting point is reinforced with 4mm steel plate to prevent distortion or damage. When the jack is inserted into the point, the lip of the jack foot locates past the internal reinforcing plate to prevent slippage.
When not in use, lifting points are fitted with a rubber plug.
WHEEL CARRIER CNC MACHINED PIVOT:
The strength of the carrier comes from the wheel carrier support being direct from the chassis.
The support tube to the chassis is a 20MnV6 carbon manganese steel micro alloyed tube with vanadium.
The wheel carrier has had extensive Finite Elemental Analysis (FEA) testing conducted alongside real world testing to ensure that the carrier exceeds the demands of the large tire combinations fitted to the JK on different road surfaces.
ROD END SYNCHRONIZING SYSTEM AND CRADLE:
The tire carrier utilizes an adjustable turnbuckle with dual rod ends to connect the wheel carrier to the vehicle's rear door.
When the door is closed, the wheel carrier is securely held within a rubber cradle to ensure a strong and quiet fitment.
This system ensures that the tire carrier swings away seamlessly synchronized with the vehicle's rear door.
HI-LIFT JACK MOUNT:
Integrated into the swing arm is a mounting platform and arm support for a Hi-Lift jack.
Heavy-duty injection molded plastic knob bolts ensure easy removal of the jack without the need for tools.
EXTENDED HIGH BRAKE LIGHT MOUNT:
The extended brake light mount incorporates provision for additional work light/reverse light and VHF/UHF/CB radio antennas.
ARB's Rear Bumper with Tire Carrier is the only way to carry up to a 40" tire without rattling noises or vibration. Engineered to take the weight, this carrier is one of the toughest on the market. Attached to the tailgate via a tailgate support plate allows you to open the carrier and tailgate at the same time. Made from premium quality Australian steel, this tire carrier combined with the ARB rear bumper is the only way to carry your oversized tires. The ARB rear Jeep Wrangler JK bumper delivers an enormous amount of protection for the back of a vehicle and has been designed for maximum functionality with a recessed bumper section, dual Hi-Lift jacking points and a heavy duty towing system.
| Product Name | ARB Modular Rear Bumper with Swing Away Tire Carrier for 07-18 Jeep Wrangler JK |
|---|---|
| Dropdown Labels | Select |
| Hazmat | No |
| Item Returns | This item can be returned |
