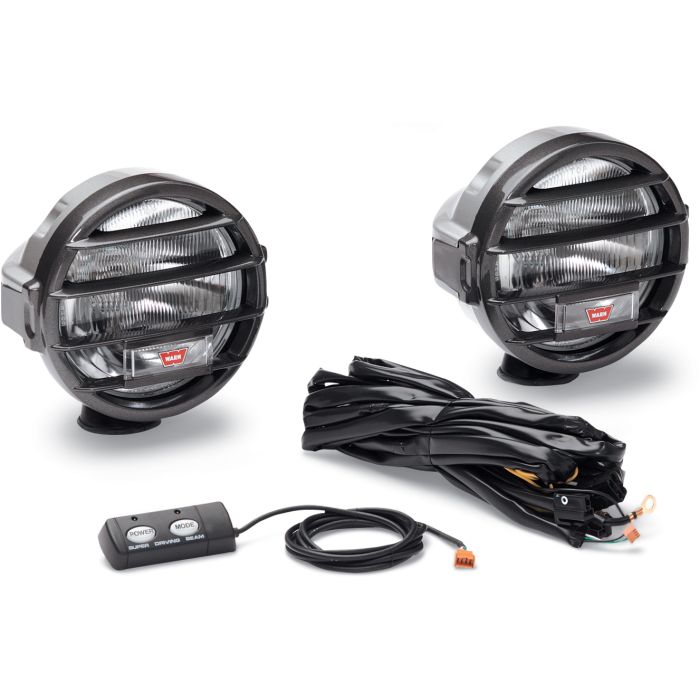

WARN SDB-160 HB 6IN DRIVE/SPOT

The SDB-160HB has an internal light frame to protect the lamp from vibration and shock when running off-road, plus an impact resistant polycarbonate body protects the exterior. Heat and weather resistant EPT material helps protects lamp integrity.
The lens of the SDB-160HB is protected by a stone guard in a "V"-shape to let air cool the lens surface, allowing extended operation of the lamp. Hardened glass lens has excellent heat and thermal shock resistance, strength and translucency.

Easily adjustable illumination angle to 15° up or down. Dual beam control switch includes relay control feature and LED illumination when lamps are in use.

SPECIFICATIONS/PART NUMBER

Part Number: 37606

Model: SDB-160HB

Bulb:  H4

Rating:  12V 100/90-Watt

Maximum Brightness:  100,000CD

Spot Beam:  770'/235m

Driving Beam:  410'/125m

Beam Color:  White

Lens Diameter:  5-1/4"/134mm

Attachment Bolt Dimensions:  13/32"/10mm

Switch:  1 (12V/24V)

Relays: 2

Harness:  1 (H4 TYPE)

Cord Clamps:  4

Relay Locating Clamp: 1

U-clip: 4

Clip Tape:  4

Self-Tapping Screw/Washer: 2

Switch Locating Double-Sided Tape: 1
