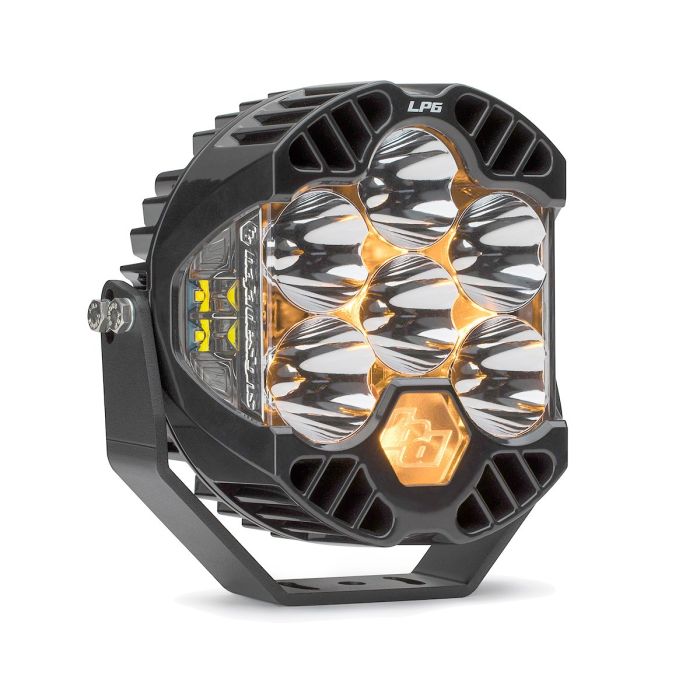

97022-2092

IPT: This light brings you Integrated Peripheral Technology that provides an incredibly wide 200° spread of usable light.

Driving/Combo: Get the best of both worlds with both a Driving beam (42°) pattern along with a Spot (9°) beam pattern to give you a blend for both near & distance lighting.

High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Pattern:

Zone 3: The recommended light pattern is Driving/Combo pattern. Lights in Zone 3 are typically in the center of the vehicle, either on the bumper or in the grill.

Zone 4: The recommended light pattern is spot pattern lens. This lens provides the greatest amount of distance throw, while also keeping a tighter pattern of light - causing less glare if you choose to mount lights on the roof or a-pillar.

Specifications:

• Forward Projecting Lumens: 8,600 Utilizing 6 LEDs
• Forward Projecting Wattage/Amps: 90W / 6.5A
• IPT Lumens: 1,700
• IPT Wattage/Amps: 15W / 1.0A
• Dimensions: 6.5" Diameter; 3.2" Depth
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hardcoated Polycarbonate
• Housing: Hard Anodized Machined Aluminum
• Bezel: Billet Machined Aluminum
• Hardware & Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof up to 9ft & Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing)
