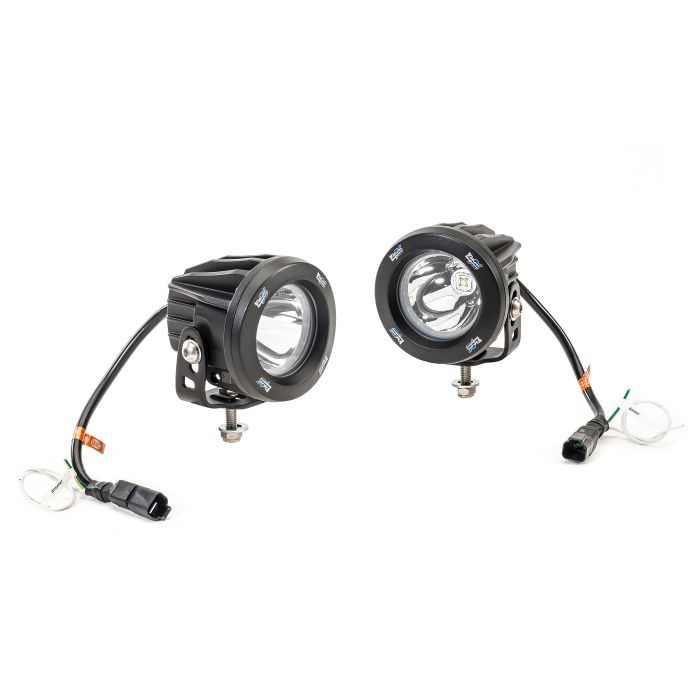

97022-0350

Key Features

• Two 10-Watt LED Produces 693' of Usable Light
• Integrated Electronic Thermal Management (ETM)
• Unmatched Distance In light this size

Compact, Bold Design

Small Doesn't mean Weak The new Optimus Prime doesn't sacrifice light output to achieve an ultra-compact housing. Actually the opposite. The Optimus Prime outperforms traditional Halogen Off Road Lighting solutions in both distance and output, all while fitting within a housing that doesn't look bulky and in the way. So put away the huge, awkward looking lights, and get the driving lights that will amaze you every time you light them up.

Distance
The Single Optimus Prime throws 1 lux of light 680 feet. For comparison, a motorcycle headlight low beam measures 1 lux at 88 feet, and high beam 1 lux at 153 feet. The Optimus Prime is truly "lighting evolved".

Prime Drive

The More Powerful and Long Lasting LED
The Optimus Prime with Prime Drive drives the LED more efficiently while managing heat levels. This means more light from the LED and a longer lifespan. This is advanced LED technology in action.

Electronic Thermal Management
ETM monitors the heat output of the LEDs and makes use of integrated Pulse Width Modulation circuitry in order to maintain safe operating temperatures in order to prolong the LED life span to its full 50,000 hour potential.

Pulse Width Modulation
The Optimus Prime utilizes integrated Pulse Width Modulation (PWM) dimming circuitry to manage heat levels. PWM works by flashing the LED at a frequency faster than the human eye can detect, reducing the time that the LED is operating while still delivering 100% light output.

Added Features

• Weatherproof Deutsch Connector
• Trunnion Bracket or Stud-Mount Available
• Die-Cast Aluminum Housing
• Polycarbonate lens
• Patent Pending

Specifications

• Warranty: Extended
• Mounting Depth: 1.00"
• Lumens: 1720 Lm
• Watts: 20
• LED Lifespan: 50,000

Technical Details

• Height: 3.07"
• Depth: 3.80"
• Optic Purity: 90%
• Driven At: 90%
• Amp Draw (12V DC): 1.67A
• Input Voltage: 12-32V DC
• IP Rating: IP-68
• Vibration Rating: 15.6G
• Operating Temperature: -40 Celsius ~ +80 Celsius
