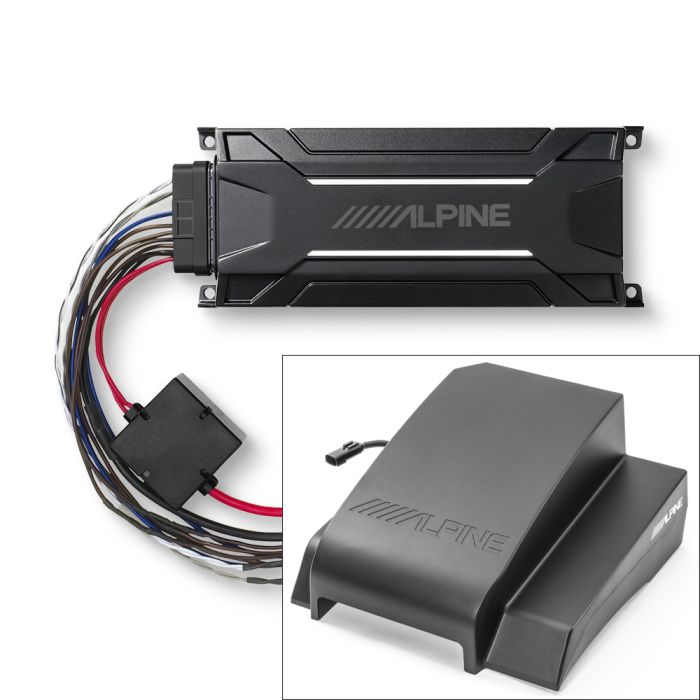

ALPINE SBV-10-WRA SUB W/ KTA-30MW AMP

Alpine KTA-30MW Mono Tough Pack Amplifier

Class: D

Dynamic Pulse Power (DPP) Equipped: Yes

Power: 600W DPP x 1 @ 2Ω, 14.4V, ≤1% THD+N

Root Mean Squared: 300W RMS x 1 @ 2Ω, 14.4V, ≤1% THD+N (CTA-2006-B compliant)

Signal to Noise (1W into 4Ω): >83dB

THD (ref. 1W into 4Ω): <0.1%

Frequency Response: 20-400kHz (+/- 1dB)

Waterproof Rating: IP66 rating

Inputs: Speaker/RCA inputs (selectable, High range=0.5-10V, Low range=0.2-4V)

Sound Control: LP filter - Off/LP, Fc = 50-400Hz @ -24dB/Oct. (variable); Input gain settings (variable); Bass EQ: 0 to +12dB, Fc = 50Hz (variable)

Chassis: Cast Aluminum

Alpine SBV-10-WRA 10in Water Resistant Subwoofer:

Speaker Size: 10 inch

Location: Under passenger seat

Recommended Amplifier Size: For use with 500 Watt amps

Vehicle Specific: For use with 4 door Wrangler JKs only

Rated Waterproof: IP66 Rating

Peak Power: 1050 Watts

Root Mean Square (RMS): 350 Watts

Nominal Impedance: 2 Ohm

Frequency Response: 45-200Hz

Wiring Pigtail: OEM-grade Molex 2-pin connector
