ALPINE WTHRPRF SOUND SYSTEM 11-18 JKU
Designed for Jeeps: Alpine engineered PSS-22WRA Waterproof Full Sound System Upgrade to be compatible with all late model four-door JK Wranglers with automatic transmissions. The included SPV-65X-WRA speakers are Jeep specific and include adapter that fit will all JK year ranges.
Complete Package: The PSS-22WRA Waterproof Full Sound System Upgrade includes everything you need to take your Jeep’s audio to the next level. With the high-performance replacement speakers, sub-woofer, and amplifiers, you will be able to get the most from your factory or aftermarket stereo.
SPV-65X-WRA Replacement Speaker Specs:
Woofer Diameter: 6-1/2”
Woofer Cutout Diameter: 5-7/16”
Woofer Cutout Depth: 2-5/8”
Tweeter Diameter: 1”
Peak Wattage: 225 watts
Root Mean Square (RMS) Wattage: 75 watts
Frequency Response: 65Hz – 22kHz
Impedance: 4 ohms
Sensitivity: 88 dB SPL (1 W @ 1m)
Waterproof Rating: IP55
SBV-10-WRA Sub-Woofer Specs:
Speaker Diameter: 10”
Peak Wattage: 1050 watts
Root Mean Square (RMS) Wattage: 350 watts
Frequency Response: 45Hz – 200Hz
Impedance: 2 ohms
Waterproof Rating: IP66
KTA-30FW Four Channel Tough Pack Amplifier Specs:
Class: D
Dynamic Pulse Power (DPP) Equipped: Yes
Power: 150W DPP x 4 @ 2Ω/4Ω, 14.4V, ≤1% THD+N
Root Mean Squared: 75W RMS x 4 @ 2Ω/4Ω, 14.4V, ≤1% THD+N (CTA-2006-B compliant)
Signal to Noise (1W into 4Ω): >85dB
THD (ref. 1W into 4Ω): <0.1%
Frequency Response: 20-20kHz (+/- 1dB)
Waterproof Rating: IP66 rating
Inputs: Speaker/RCA inputs (selectable, High range = 0.5-10V, Low range = 0.2-4V)
Sound Control: Crossovers - Off/HP/LP, Fc = 50-400Hz @ -12dB/Oct. (variable); Input gain settings (variable); 2ch/4ch input (selectable)
Alpine KTA-30MW Mono Tough Pack Amplifier
Class: D
Dynamic Pulse Power (DPP) Equipped: Yes
Power: 600W DPP x 1 @ 2Ω, 14.4V, ≤1% THD+N
Root Mean Squared: 300W RMS x 1 @ 2Ω, 14.4V, ≤1% THD+N (CTA-2006-B compliant)
Signal to Noise (1W into 4Ω): >83dB
THD (ref. 1W into 4Ω): <0.1%
Frequency Response: 20-400kHz (+/- 1dB)
Waterproof Rating: IP66 rating
Inputs: Speaker/RCA inputs (selectable, High range=0.5-10V, Low range=0.2-4V)
Sound Control: LP filter - Off/LP, Fc = 50-400Hz @ -24dB/Oct. (variable); Input gain settings (variable); Bass EQ: 0 to +12dB, Fc = 50Hz (variable)
Chassis: Cast Aluminum

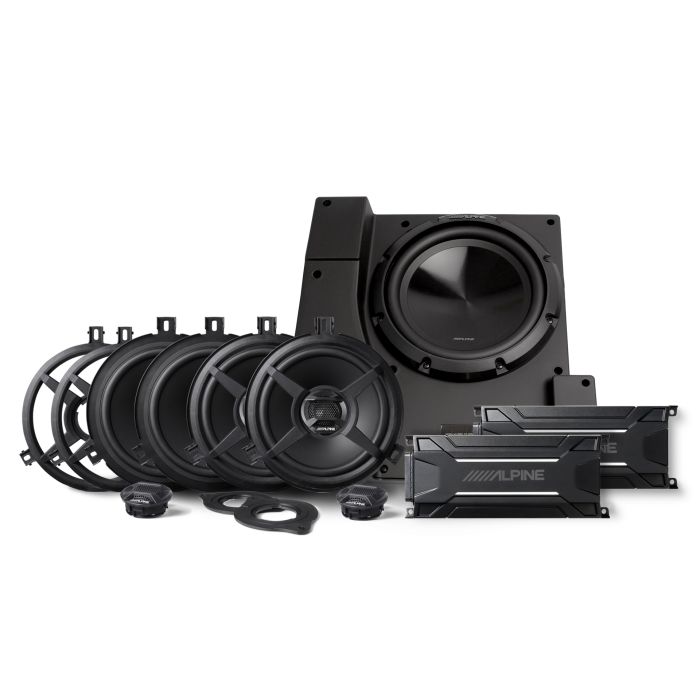

Completely revolutionize the audio experience in your Jeep with the Alpine PSS-22WRA Waterproof Full Sound System Upgrade. This 600-watt kit is designed specifically for four door Jeep JK Wranglers, and features four 6.5” speakers, four 1” tweeters, a 10” sub-woofer, and two amplifiers. Unlike other replacement speakers and sub woofers on the market, Alpine specifically tuned this entire system for Jeep Wrangler. All wiring, adapters, and connectors are included to install this plug-n-play kit into your Jeep. Best of all, you do not need to worry about damaging the PSS-22WRA when your top is down, because every component has a minimum of IP55 waterproof rating.
Installation Note: The Alpine 10" Water Resistant Subwoofer is designed for use with factory carpet. If your Jeep does not have carpets, additional padding may be required.
Designed for use on Jeeps with Automatic Transmission
Not Compatible with Factory Premium Sound System
Not Compatible with 2-Door Wranglers
| Manufacturers Part Number | PSS-22WRA |
|---|---|
| Product Name | ALPINE WTHRPRF SOUND SYSTEM 11-18 JKU |
| Length | 22 |
| Width | 20 |
| Depth | 20 |
| Weight | 48.000000 |
| Hazmat | No |
| Brand | Alpine |
| Color | Black |
| Included Parts | SPV-65X-WRA Component 2 Way Speaker System:
SBV-10-WRA 10" Water Resistant Subwoofer:
KTA-30FW Four Channel Tough Pack Amplifier:
KTA-30MW Mono Tough Pack Amplifier:
Dual Amplifier Bracket |
| Location | Full surround |
| Size | 10", 6" Woofer |
| Item Returns | This item can be returned |
