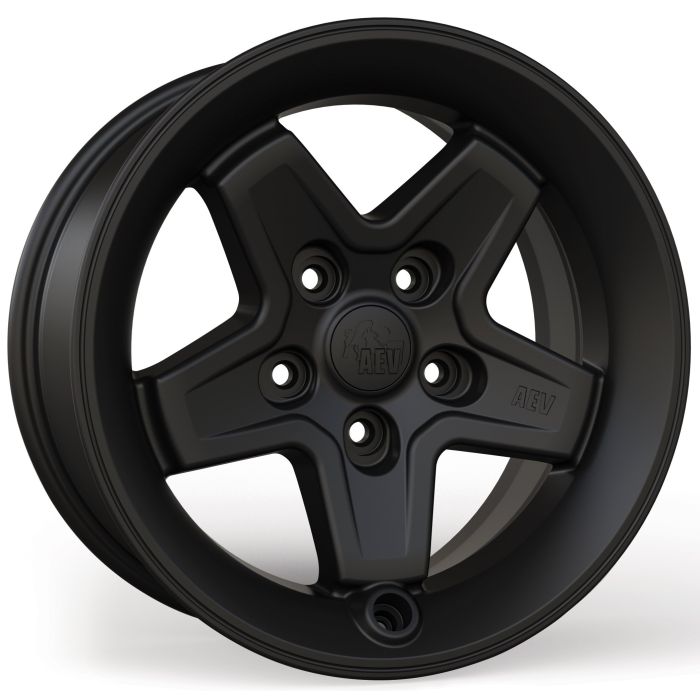

AEV BLACK PINTLER WHEEL 17X8.5 5.8BS JL
JL Specific Design: When designing the Pintler Wheel for JL Wranglers, AEV covered every detail. They optimized the offset and backspacing for the JL, enlarged the center bore, and redesigned the center cap. The larger center bore allows the spare to easily fit over the JL’s factory backup camera.
Safety Tested: AEV tests all of their wheels under SAE J2530 requirements. The wheels are tested on radial fatigue, cornering load, and curb impact.
Wheel Clearance: The Pintler Wheel’s barrel shape and high offset allows it to clear the Jeep Wrangler JL’s brakes. However, there is not enough room for .5oz and 1oz stick-on wheel weights, so standard .25oz wheel weights must be used.
Pintler Wheel Specs:
Wheel Size: 17x8.5
Backspacing: 5.77”
Offset: +25mm
Center Cap Bore Diameter: 71.5mm
Load Rating: 2400lbs
Wheel Material: A356 T6 Cast Aluminum
| Manufacturers Part Number | 20402034AA |
|---|---|
| Product Name | AEV BLACK PINTLER WHEEL 17X8.5 5.8BS JL |
| Dropdown Value 1 | Matte black |
| Length | 20 |
| Width | 20 |
| Depth | 11 |
| Weight | 34.000000 |
| Hazmat | No |
| Prop 65 Message | California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm |
| Back Spacing | 5.8 |
| Back Spacing Range | 5.75" - 5.99" |
| Bolt Pattern | 5x5 |
| Brand | AEV |
| Color | Black |
| Included Parts |
|
| Offset | + 25mm |
| Wheel Diameter | 17.0 |
| Wheel Tire Builder | Yes |
| Wheel Width | 8.5 |
| Item Returns | This item can be returned |
