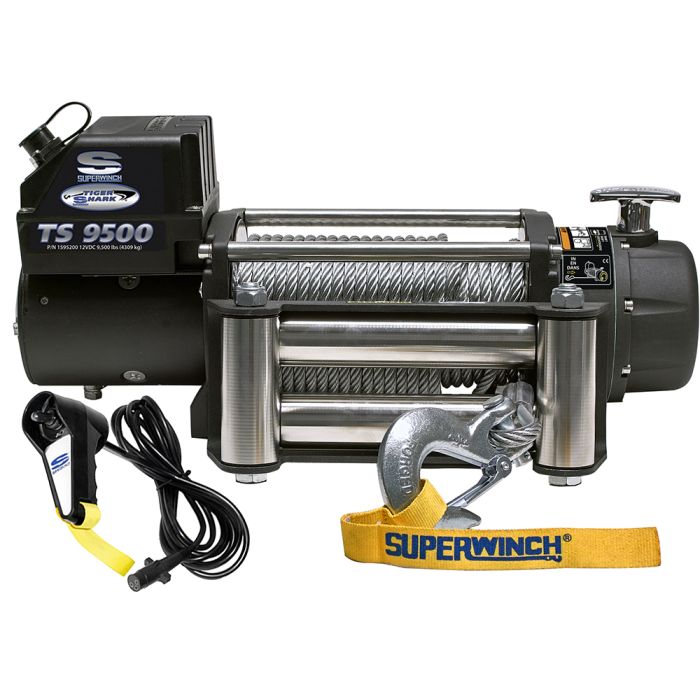

TIGER SHARK WINCH-TS9500
$663.99
In stock
SKU
92140-0300
Here is what separates the Tiger Shark Series apart from the pretenders:
9500 lbs of Rated Line Pull-Built to bite almost any application
Weather Sealed 5.0 HP motor-Reduces damage from rain, snow and blowing dust
Heavy-Duty 3-Stage gearbox-Handles stress and torque on demand
Heavy-Duty Drum Supports-Load tested all the way to stall
Weather Sealed Solenoids-Reduces damage from rain, snow and blowing dust
Severe-Duty Textured Finish-Resists harsh outdoor and off-road abuse
Heavy-Duty Rubber Hand-held Remote-Field proven design provides effortless switching
Stainless Steel Tie Bars and Hardware-Great appearance & resists damage from rain and snow
Heavy-Duty Fairlead with Stainless Steel Rollers-Brushed finish endures weather and wire rope abuse
Ergonomically Shaped Freespool Control-Easy to grip and effortless to operate
Specifications
Rated Line Pull: 9,500 lbs (4309 kg)
Motor: Sealed 5.2 HP Series Wound
Gearing: 3-Stage Planetary
Gear Ratio: 218:1
Solenoid: Weather Sealed Solenoid and Circuit Breaker Protected
Clutch: Free-Spooling, Pull and Turn
Brake: Mechanical, Automatic Load Holding
Rope: Wire 21/64" x 96' (8.3mm x 28m)
Hook: Heavy Duty Clevis Pinned Latched
Fairlead: Heavy-Duty, Stainless Steel 4-Way Roller
Remote: 12' Rubber Sealed Hand-held
Dimensions: 20.83" L x 6.3" W x 9.23 H (529mm L x 160mm W x 234.5mm H)
Drum Diameter: 2.5" (63.5mm)
Drum Length: 9" (228.6mm)
Installed Weight: 90 lbs. (41kgs)
Shipping Weight: 96 lbs (43.54kgs)
Warranty: Limited 2 Year Warranty
Line PUll: 0 lbs (0 kgs): 90 Amps Motor Draw/16 FPM (4.87 MPM) Line Speed
Line PUll: 9,500 lbs (4,309 kgs): 340 Amps Motor Draw/1.52 FPM (.46 M/M) Line Speed
9500 lbs of Rated Line Pull-Built to bite almost any application
Weather Sealed 5.0 HP motor-Reduces damage from rain, snow and blowing dust
Heavy-Duty 3-Stage gearbox-Handles stress and torque on demand
Heavy-Duty Drum Supports-Load tested all the way to stall
Weather Sealed Solenoids-Reduces damage from rain, snow and blowing dust
Severe-Duty Textured Finish-Resists harsh outdoor and off-road abuse
Heavy-Duty Rubber Hand-held Remote-Field proven design provides effortless switching
Stainless Steel Tie Bars and Hardware-Great appearance & resists damage from rain and snow
Heavy-Duty Fairlead with Stainless Steel Rollers-Brushed finish endures weather and wire rope abuse
Ergonomically Shaped Freespool Control-Easy to grip and effortless to operate
Specifications
Rated Line Pull: 9,500 lbs (4309 kg)
Motor: Sealed 5.2 HP Series Wound
Gearing: 3-Stage Planetary
Gear Ratio: 218:1
Solenoid: Weather Sealed Solenoid and Circuit Breaker Protected
Clutch: Free-Spooling, Pull and Turn
Brake: Mechanical, Automatic Load Holding
Rope: Wire 21/64" x 96' (8.3mm x 28m)
Hook: Heavy Duty Clevis Pinned Latched
Fairlead: Heavy-Duty, Stainless Steel 4-Way Roller
Remote: 12' Rubber Sealed Hand-held
Dimensions: 20.83" L x 6.3" W x 9.23 H (529mm L x 160mm W x 234.5mm H)
Drum Diameter: 2.5" (63.5mm)
Drum Length: 9" (228.6mm)
Installed Weight: 90 lbs. (41kgs)
Shipping Weight: 96 lbs (43.54kgs)
Warranty: Limited 2 Year Warranty
Line PUll: 0 lbs (0 kgs): 90 Amps Motor Draw/16 FPM (4.87 MPM) Line Speed
Line PUll: 9,500 lbs (4,309 kgs): 340 Amps Motor Draw/1.52 FPM (.46 M/M) Line Speed
Engineered, designed and built by Superwinch, the new Tiger Shark series combines every advantage, cost saving and power boosting technique learned in over 40 years of winch design. You'll not find a better winch even close to the price.
The Tiger Shark 9,500 features weather-sealed motor, gearbox and solenoid to keep natures best in check. The power curve generated by our high-end motors combined with 4 stage planetary gearing will save the day time and time again. Stainless steel hardware, tie bars and rollers will keep your Tiger Shark looking great for years to come.
| Manufacturers Part Number | 1595200 |
|---|---|
| Product Name | TIGER SHARK WINCH-TS9500 |
| Dropdown Value 1 | TIGER SHARK WINCH-TS9500 |
| Length | 24 |
| Width | 13 |
| Depth | 13 |
| Weight | 90.000000 |
| Hazmat | No |
| Brand | Superwinch |
| Included Parts | Winch Roller Fairlead 96' Wire Rope Sealed Hand-held Remote |
| Winch Current Draw | 340 |
| Winch Intended Usage | Occasional |
| Winch Max Line Speed | 16 |
| Winch Line Length | 96 |
| Winch Line Pull | 9500 |
| Winch Line Type | Steel Cable |
| Winch Remote | Wired |
| Winch Solenoid | Remote |
| Item Returns | This item can be returned |
