SUPERWINCH ROCK 12.8 COMPETITION WINCH 1612221
$1,342.11
In stock
SKU
92140-0013
Superwinch synthetic ropes are genuine AmSteel-Blue with Samthane, a special coating to help resist abrasion. The raw material in AmSteel-Blue is made from genuine Dyneema® SK-75 HMPE fiber, "which is the worlds strongest fiber" made by Samson Rope Technologies.
AmSteel®-Blue is a torque-free 12-strand single braid that yields the maximum in strength-to-weight ratio and, size for size, is the same strength as steelyet it floats. AmSteel®-Blue outlasts wire 3:1, making it an excellent wire rope replacement. It has extremely low stretch and superior flex fatigue and wear resistance. Average strength is 19,600 lbs. and minimum strength is 17,600 lbs. Elastic elongation is only 0.96% at 30% of the break strength.
Copyright © 2013-present Magento, Inc. All rights reserved.
AmSteel®-Blue is a torque-free 12-strand single braid that yields the maximum in strength-to-weight ratio and, size for size, is the same strength as steelyet it floats. AmSteel®-Blue outlasts wire 3:1, making it an excellent wire rope replacement. It has extremely low stretch and superior flex fatigue and wear resistance. Average strength is 19,600 lbs. and minimum strength is 17,600 lbs. Elastic elongation is only 0.96% at 30% of the break strength.
| Super Winch Rock 12.8 Competition Winch SPECS |
| Part Number: PN 1612221 |
| Rated Line Pull: 12,800 lbs. (5,806 kgs.) single-line |
| Motor: Sealed 6.0hp, (4.48 kw) Series Wound™ |
| Gearing: 2-Stage Planetary and 2-Stage Spur |
| Gear Ratio: 148:1 |
| Solenoid: Vented, Sealed Submersible Solenoid with 3 Year Warranty |
| Clutch: Free-spooling Clutch/Pull and Turn |
| Brake: Automatic 100% Load Holding (outside of drum) |
| Rope: Synthetic Rope 3/8 x 50' (9.5mm x 15.24m) |

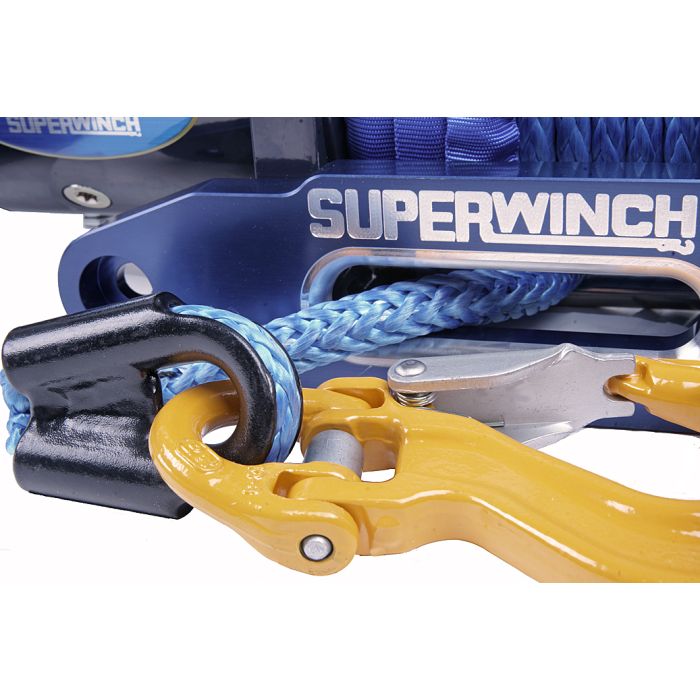

| Hook: Yellow Heavy Duty/Clevis Pinned/Latched |
| Fairlead: Anodized Blue Aluminum Hawse with Engraved Superwinch Logo |
| Remote: 15' Sealed Ergonomic Hand-held with Coiled Cord |
| Dimensions: 20.58 L x 6.2 D x 10.95 H (522.60mm L x 157.50mm D x 278.15mm H) |
| Drum Diameter: 2.5 ( 63.5mm) |
| Drum Length: 4.75 (120.65mm) |
| Mounting Bolt Pattern: 6 x 4.5 (152.4mm x 114.3mm) |
| Installed Weight: 64 lbs (28 kgs) |
| Shipping Weight: 77 lbs (34 kgs) |
| Warranty: Limited Lifetime Warranty/3-Year Electrical |
| UPC: 022705169219 |
| Line Pull 0 lbs: 75 Amps Motor Draw / 62 FPM (18.9 MPM) Line Speed |
| Line Pull 12,800 lbs: 560 Amps Motor Draw / 2.75 FPM (0.84 MPM) Line Speed |
How can you pull at max power and get back on the ride so fast? The answer is a Superwinch Rock 12.8. With 12,800lbs of pulling power on 50' of rope, you'll be pulling in the "Power Zone" - the first two layers on the drum. Higher layers rob your winch of power - with the Rock 12.8 you won't need to spool out extra rope to get at it.
12,800 lbs of pulling power in a small, lightweight package! Weighs 28 lbs less with Dyneema synthetic rope, 4 narrower for smaller modified competition vehicles, Free-spool knob rotates in 45° increments for custom applications, Industrial grade, over-sized, safety yellow latched hook and 3 solenoid box installation options; Offset (solenoid over motor, as shipped), Centerline (solenoid over drum, kit included) and Competition (solenoid remotely mounted, kit included). Note, mounting bolt pattern is 4 inches narrower as compared to the standard Talon (6" x 4.5").
12,800 lbs of pulling power in a small, lightweight package! Weighs 28 lbs less with Dyneema synthetic rope, 4 narrower for smaller modified competition vehicles, Free-spool knob rotates in 45° increments for custom applications, Industrial grade, over-sized, safety yellow latched hook and 3 solenoid box installation options; Offset (solenoid over motor, as shipped), Centerline (solenoid over drum, kit included) and Competition (solenoid remotely mounted, kit included). Note, mounting bolt pattern is 4 inches narrower as compared to the standard Talon (6" x 4.5").
| Manufacturers Part Number | 1612221 |
|---|---|
| Product Name | SUPERWINCH ROCK 12.8 COMPETITION WINCH 1612221 |
| Dropdown Value 1 | SUPERWINCH ROCK 12.8 COMPETITION WINCH |
| Length | 20 |
| Width | 11 |
| Depth | 7 |
| Weight | 77.000000 |
| Hazmat | No |
| Brand | Superwinch |
| Included Parts | Rock 12.8 Winch 50' x 3/8" Synthetic Rope Yellow Heavy Duty/Clevis Pinned/Latched Anodized Blue Aluminum Hawse with Engraved Superwinch Logo |
| Winch Current Draw | 75 |
| Winch Intended Usage | Frequent |
| Winch Max Line Speed | 62 |
| Winch Line Length | 50 |
| Winch Line Pull | 12800 |
| Winch Line Type | Synthetic Rope |
| Winch Remote | Wired |
| Winch Solenoid | Remote |
| Item Returns | This item can be returned |
