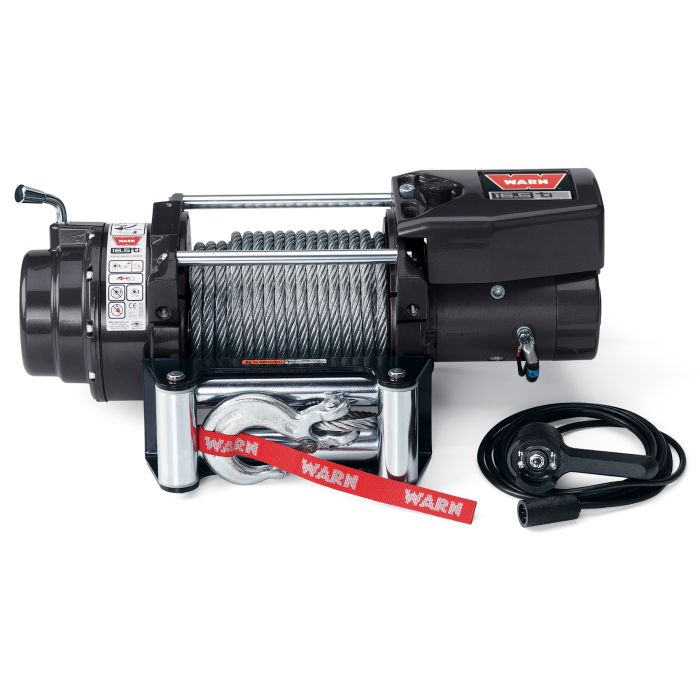

WARN 16.5ti HEAVYWEIGHT WINCH

$2,974.99
In stock
SKU
92138-00
The WARN 16.5ti-S Winch is engineered for extreme-duty recovery situations where maximum pulling power and unwavering reliability are essential. Featuring an impressive 16,500-pound pulling capacity, this premium winch is ideal for heavily equipped off-road vehicles, full-size trucks, recovery rigs, and commercial applications. Built with WARN's proven performance and durability, the 16.5ti-S combines a powerful series-wound motor, and features the full diagnostic ability of WARN Thermometric technology, and a high-strength wire or synthetic rope to deliver dependable operation when recovery conditions are at their toughest. Whether you're navigating remote trails, hauling heavy loads, or assisting other vehicles, this winch provides the confidence needed to tackle demanding challenges.

Designed for serious off-road enthusiasts and professionals alike, the WARN 16.5ti-S offers exceptional strength without compromising ease of use. The lightweight synthetic rope improves handling and safety compared to traditional steel cable, while the polished aluminum hawse fairlead enhances durability and rope protection. Advanced sealing helps defend critical components from water, mud, and debris, ensuring reliable performance in harsh environments. When failure isn't an option, the WARN 16.5ti-S delivers the power, control, and dependability required to keep your adventures moving forward.



16.5ti SPECS/PART NUMBERS
Part Number: PN 68801 CE (12V DC)
Rated Line Pull: 16500 lbs. (7484 kgs.) single-line
Motor: 12V 4.6 hp, Gen II, Series Wound
Remote Control: Remote switch, 12' (3.7m) lead, thermometric indicator, S2 elements, integrated flashlight
Geartrain: 3-Stage Planetary
Gear Ratio: 315:1
Lubrication: Molybue: #1 or Aeroshell #17
Clutch (freespooling): Rotating Ring Gear
Brake: Automatic Direct Drive Cone
Wire Rope: 90', 7/16" diameter (27m, 11mm diam.)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Chromate with high-gloss dark gray powder coat
Drum Diameter/Length: 3.5"/8.2" (9cm/21cm)
Weight: 138 lbs. (63 kgs.)

12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 23.6(7.20) 68 amps 1/16500(7484)
2000(907) 12.07(3.68) 138 amps 2/15279(6930)
4000(1814) 9.22(2.81) 189 amps 3/12672(5748)
6000(2721) 7.37(2.25) 240 amps 4/10824(4910)
8000(3628) 6.08(1.85) 291 amps
10000(4536) 5.12(1.56) 342 amps
12000(5443) 4.40(1.34) 393 amps
14000(6350) 3.86(1.18) 444 amps
16000(7257) 3.38(1.03) 494 amps
16500(7484) 3.24(0.99) 507 amps


Above performance specs are based on first layer of drum


Winch Dimensions: 24.7" L. x 8.5" D. x 9.7" H.
(628mm L. x 216mm D. x 247mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)

Massive 16,500-lb Pulling Capacity: Provides exceptional recovery power for heavily outfitted trucks, off-road vehicles, commercial rigs, and demanding recovery operations.

Premium Synthetic Rope: Offers easier handling, reduced weight, and improved safety compared to traditional steel cable while maintaining impressive strength. (when selected)

Wire Cable: 90 feet of aircraft grade, 7/16" wire rope.( when selected).

Trusted WARN Reliability: Built by one of the most respected names in vehicle recovery, delivering proven performance in challenging off-road and work environments.

Powerful Series-Wound Motor: Delivers strong, consistent pulling performance and dependable operation under heavy loads.

Advanced Weather Resistance: Engineered to help protect critical internal components from mud, water, dust, and harsh outdoor conditions.

High-End Recovery Components: Includes a durable aluminum hawse fairlead and premium hardware designed for long-term performance.

Ideal for Heavy-Duty Applications: Perfect for full-size trucks, overland builds, recovery vehicles, and commercial equipment requiring maximum winching capability.

Confidence in Remote Situations: Provides dependable self-recovery and vehicle extraction capabilities when tackling difficult terrain far from assistance.

Note: The synthetic rope winch dimensions are shown in the adiitional images.

More Information
Manufacturers Part Number 68801
Product Name WARN 16.5ti HEAVYWEIGHT WINCH
Dropdown Value 1 Wire Cable
Prop 65 Message WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Length 27
Width 17
Depth 11
Weight 137.000000
Hazmat No
Brand WARN
Included Parts 90', 7/16" diameter (27m, 11mm diam.) Wire Rope 12V 4.6 hp Series Wound Motor Remote switch, 12' (3.7m) lead Direct Drive Cone Break Spring- loaded control switches Contactor Control Pack 3-Stage Planetary Gears with a 315.1 Ratio Rotating Ring Gear clutch for free spooling Weather-shielded solenoids. Color-coded cables and connectors. Roller Fairlead
Winch Current Draw 291
Winch Intended Usage Frequent
Winch Max Line Speed 23
Winch Line Length 90
Winch Line Pull 16500
Winch Line Type Steel Cable
Winch Remote Wired
Winch Solenoid Remote
