WARN M15000 HEAVYWEIGHT WINCH

Be the first to review this product

$2,677.49

In stock

SKU

92137-00

M15000 SPECS/PART NUMBERS

Part Numbers: PN 47801 CE (12V DC)

Rated Line Pull: 15000 lbs. (6804 kgs.) single-line

Motor: 12V 4.6 hp Series Wound™

Remote Control: Remote switch, 12' (3.7m) lead

Geartrain: 3-Stage Planetary

Gear Ratio: 315:1

Lubrication: Molylube #1 or Aeroshell #17

Clutch (freespooling): Rotating Ring Gear

Brake: Automatic Direct Drive Cone

Drum Diameter/Length: 3.5"/8.2" (9cm/21cm)

Weight: 136lbs. (62kgs.)

Wire Rope: 90', 7/16" diameter (27m, 11mm diam.)

Fairlead: Roller

Recommended Battery: 650 CCA minimum for winching

Battery Leads: 2 gauge, 72" (1.83m)

Finish: Argent Gray Powder Coat

Nuts/Bolts: PN 61946

CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead and safety hook.

12V DC PERFORMANCE SPECS
Line Pull Lbs.(Kgs.)	Line Speed FT./min(M/min.)	Motor Current	Pull by layer layer/Lbs(Kgs.)
0	22.2(6.77)	67 amps	1/15000(6804)
2000(910)	7.27(2.22)	135 amps	2/13890(6300)
4000(1810)	5.41(1.65)	185 amps	3/11520(5225)
6000(2720)	4.43(1.35)	235 amps	4/9840(4463)
8000(3630)	3.79(1.16)	285 amps
10000(4540)	3.31(1.01)	335 amps
12000(5440)	2.93(.893)	385 amps
14000(6350)	2.61(.796)	435 amps
15000(6800)	2.48(.756)	460 amps

Above performance specs are based on first layer of drum

Winch Dimensions: 25.2" L. x 8.5" D. x 11" H.
(556mm L. x 215mm D. x 279mm H.)

Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)

Skip to the end of the images gallery

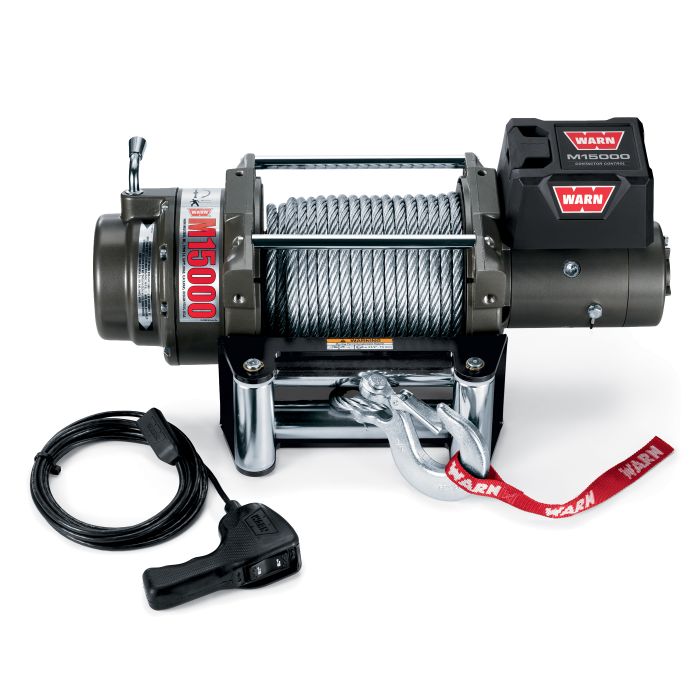

WARN 47801 M15000 Self-Recovery Winch (12V DC)

Skip to the beginning of the images gallery

Details

When you work hard enough to need a really big truck, you'll want a winch with enough capacity to get the job done. The WARN M15000 winch boasts high strength carrier plates to handle the gear train stresses of a 15,000lb load. The gear ratio is 315:1, with 90 feet of 7/16" wire rope equipped with a large latched hook. The control pack is designed for generous clearance and ease of access.

More Information

More Information
Manufacturers Part Number	47801
Product Name	WARN M15000 HEAVYWEIGHT WINCH
Dropdown Value 1	WARN M15000 HEAVYWEIGHT WINCH
Prop 65 Message	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Length	27
Width	17
Depth	11
Weight	136.000000
Hazmat	No
Brand	WARN
Included Parts	90', 7/16" diameter (27m, 11mm diam.) Wire Rope 12V 4.6 hp, 24V 2.5 hp Series Wound Motor Remote switch, 12' (3.7m) lead Direct Drive Cone Break Spring- loaded control switches Contactor Control Pack 3-Stage Planetary Gears with a 216.1 Ratio Rotating Ring Gear clutch for free spooling Weather-shielded solenoids Color-coded cables and connectors Roller Fairlead
Winch Current Draw	285
Winch Intended Usage	Frequent
Winch Max Line Speed	22
Winch Line Length	90
Winch Line Pull	15000
Winch Line Type	Steel Cable
Winch Remote	Wired
Winch Solenoid	Remote
