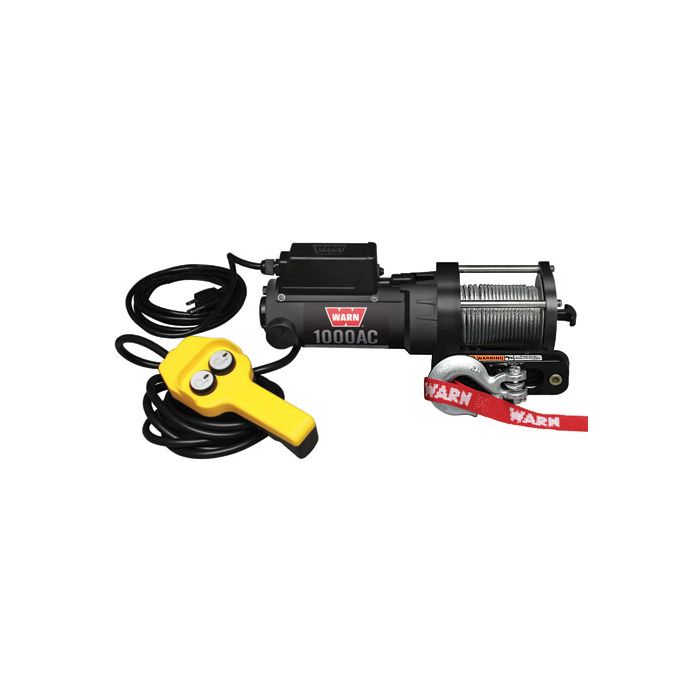

WARN 1000LB AC UTILITY WINCH
$527.99
In stock
SKU
92136-1000
| 1000AC SPECS/PART NUMBERS | Part Number: PN 80010 | Capacity: 1000 lbs. (454 kgs.) | Motor: Permanent Magnet | Horsepower: 0.8hp | Power Source: 120V AC, GFCI | Switch Type: Remote With 10' (3 m) Lead | Geartrain: Planetary, Differential Planetary | Gear Ratio: 261:1 | Clutch (freespooling): Pull & Turn | Brake: Self Braking Transmission | Warranty: 1 year limited | Wire Rope: 3/16" x 43' (4.8mm x 13.1 m) | Length: 15.42" (39.2cm) | Drum Diameter: 2.0" (52mm) | Fairlead: Hawse | Hole Pattern: 4 holes 3.1" x 2.5" (78.8mm x 63.5mm) | Weight: 26.5 lbs (12.0 kgs) |
| PERFORMANCE SPECS (first layer of drum) | |||
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Amp Draw |
|
| 0 | 9.0 FPM | 1.2 | |
| 500(227) | 7.5 FPM | 3.7 | |
| 1000(454) | 6.9 FPM | 6.9 | |
Wherever there is a wall socket, you can now pull or drag just about anything anywhere with the versatile WARN 1000AC Utility Winch. The 1000AC winch delivers 1,000 lbs. of pulling capacity, 43' of wire rope, a long duty cycle and legendary WARN durability make this a tool you can rely on to get the job done.
| Manufacturers Part Number | 80010 |
|---|---|
| Product Name | WARN 1000LB AC UTILITY WINCH |
| Dropdown Value 1 | WARN 1000LB AC UTILITY WINCH |
| Prop 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Length | 0 |
| Width | 0 |
| Depth | 0 |
| Weight | 26.000000 |
| Hazmat | No |
| Brand | WARN |
| Winch Current Draw | 7 |
| Winch Intended Usage | Occasional |
| Winch Max Line Speed | 9 |
| Winch Line Length | 43 |
| Winch Line Pull | 100 |
| Winch Line Type | Steel Cable |
| Winch Remote | Wired |
| Winch Solenoid | Integrated |
| Item Returns | This item can be returned |
