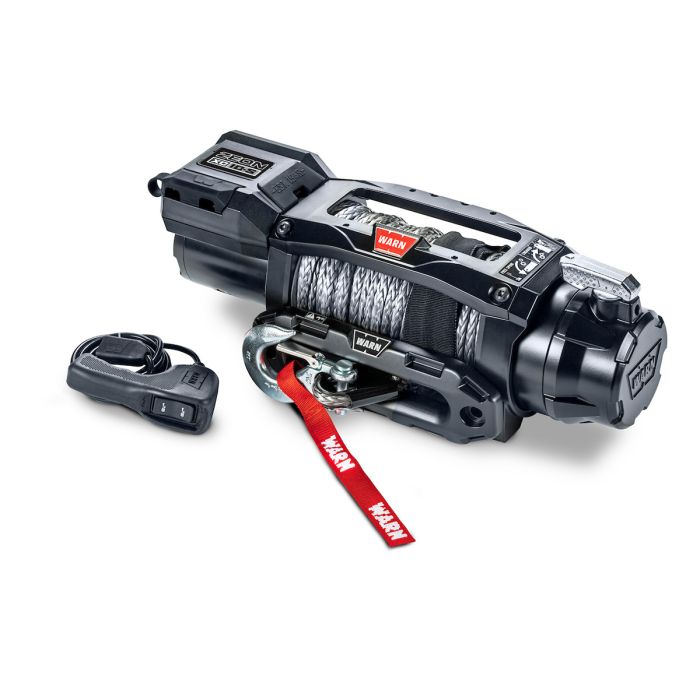

ZEON XC 10-S SYNTHETIC ROPE
The WARN ZEON XC Winch Series is built for Jeep owners who demand serious recovery capability without sacrificing fitment or reliability. Designed around a compact, low‑profile architecture, ZEON XC winches deliver the same proven performance found in WARN’s premium ZEON XD line, but in a package that fits cleanly behind modern Jeep bumpers and tight trail‑focused builds. With capacities ranging from 10,000 to 14,000 pounds, ZEON XC winches are suited for everything from lightweight Wrangler recoveries to fully equipped overland and rock‑crawling setups.
Engineered, tested, and assembled in the USA, ZEON XC winches feature sealed electronics rated to IP68 submersion and IP69K high‑pressure spray, making them well‑suited for water crossings, mud runs, and year‑round trail use. A high‑efficiency motor and optimized planetary geartrain deliver no‑load line speeds up to 40 feet per minute, helping get recoveries done quickly when terrain, weather, or daylight is working against you. With options for steel cable or Spydura synthetic rope, EPIC forged aluminum fairleads, and WARN’s industry‑leading warranty, ZEON XC is built for Jeep owners who rely on their winch every time they leave pavement.
| Specification | ZEON XC 10 | ZEON XC 12 | ZEON XC 14 |
|---|---|---|---|
| Rated Line Pull | 10,000 lb (4,536 kg) | 12,000 lb (5,443 kg) | 14,000 lb (6,350 kg) |
| No‑Load Line Speed (max) | Up to 40 ft/min | ||
| Motor | 12V DC, series wound | ||
| Geartrain | 3‑stage planetary | ||
| Gear Ratio | 141:1 | 176:1 | 213:1 |
| Brake | Automatic, six‑segment mechanical cone | ||
| Clutch (Freespool) | Rotating ring gear | ||
| Drum Diameter / Length | 3.15 in × 9.0 in (80 mm × 229 mm) | ||
| Rope Included |
• 3/8 in × 80 ft steel • 3/8 in × 100 ft Spydura synthetic |
• 3/8 in × 80 ft steel • 3/8 in × 80 ft Spydura Pro synthetic |
• 3/8 in × 80 ft Spydura Pro synthetic |
| Fairlead |
• Roller (steel rope) • EPIC forged aluminum hawse (synthetic) |
• Roller (steel rope) • EPIC forged aluminum hawse (synthetic) |
• EPIC forged aluminum hawse (synthetic) |
| Electrical Controls | WARN exclusive Albright contactor | ||
| Remote | Wired remote, 12 ft (3.7 m) | ||
| Sealing | IP68 submersion & IP69K high‑pressure spray rated | ||
| Finish / Corrosion Protection | Satin‑black powder coat; OEM‑grade black fasteners; 408‑hour salt spray | ||
| Dimensions | Length: 22.06 in (560.3 mm) • Height: 7.83 in (198.8 mm) | ||
| Mounting Bolt Pattern | 10.0 in × 4.5 in (254 mm × 114.3 mm) | ||
| Recommended Battery | 650 CCA minimum | ||
| Warranty | Limited lifetime mechanical / 7‑year electrical | ||
Compact Design: The low‑profile control pack sits below the tie plate, making ZEON XC ideal for hidden, stubby, and high‑clearance Jeep bumpers where space is limited.
Fast, Controlled Recoveries on the Trail: Best‑in‑class no‑load line speeds up to 40 ft/min help speed up vehicle recoveries, reducing time spent exposed to obstacles or changing trail conditions.
Built for Water, Mud, and Abuse: IP68 and IP69K sealing, OEM‑grade corrosion resistance, and durable internal components allow ZEON XC to perform in deep water crossings, mud, snow, and dust.
Multiple Rope and Fairlead Options: Available with steel cable or Spydura and Spydura Pro synthetic rope, paired with roller or EPIC forged aluminum hawse fairleads to match different Jeep recovery styles.
Proven WARN Quality and Warranty: Designed, engineered, and assembled in the USA, backed by a limited lifetime mechanical warranty and a seven‑year electrical warranty.
| Manufacturers Part Number | 110510 |
|---|---|
| Product Name | ZEON XC 10-S SYNTHETIC ROPE |
| Dropdown Value 1 | 10,000 lbs |
| Dropdown Value 2 | Synthetic Rope |
| Length | 27 |
| Width | 19 |
| Depth | 9 |
| Weight | 76.000000 |
| Hazmat | No |
| Brand | WARN |
| Item Returns | This item can be returned |
