All-new high-speed motor, stronger gears, and heat-treated ring gear deliver 20% faster line speed, best-in-class efficiency, and our highest durability rating.
The new Advanced Wireless Remote gives you total control in the palm of your hand, allowing you to control the winch and up to two accessories. This sophisticated, advanced remote provides
operator feedback on vehicle battery charge and winch motor temperature, controls operation of the winch clutch, and more.Includes USB charging cable and car charger adapter.
Remote Controlled Clutch is engaged and disengaged with the Advanced Wireless Remote. The remote clutch controls winch-in, winch-out, and freespool operations. No more engaging a manual
clutch with frozen fingers while standing in the mud.
Durable aluminum structure with flat black powder-coated finish and stainless steel fasteners delivers durability and maximum corrosion resistanceexceeding 400 hours of salt-spray testing.
Large diameter alloy winch drum with steel sleeve is strong, light weight, reduces rope wear, and has an integrated rope anchor for easy rope installation.
Extreme waterproofing meets rigorous IP68 standardsthe highest rating in the WARN Truck/SUV winch lineup.
Automatic mechanical cone brake offers excellent control while winching.
Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately). The new-style control
pack with contactor and advanced controls gives you extreme reliability and weather resistance.
Includes 80' of 3/8 aircraft-grade wire rope and a roller fairlead.

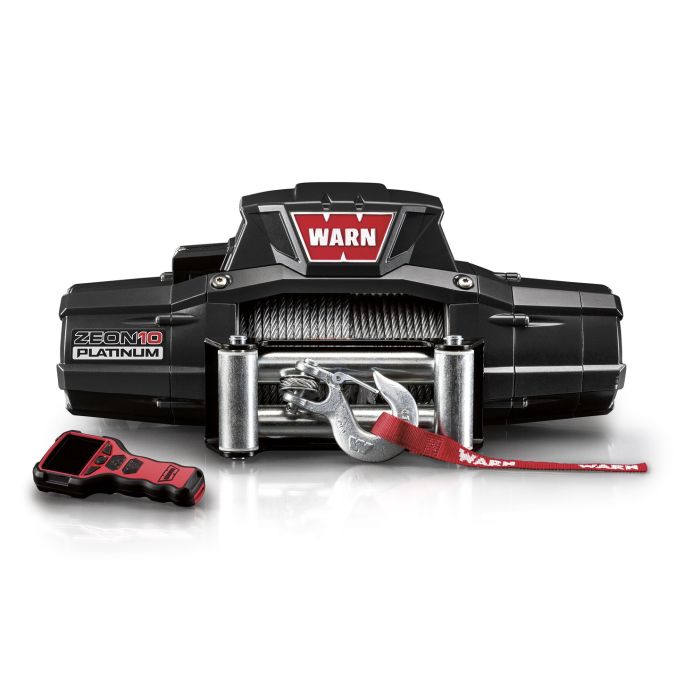

ZEON™ 10 Platinum SPECS/PART NUMBERS
Part Numbers: PN 92810
Rated Line Pull: 10,000 lbs. (4536 kgs.) single-line
Motor: 12V DC, Series Wound™
Electrical Controls: Contactor
Remote Control: Advanced Wireless
Geartrain: 3-Stage Planetary
Gear Ratio: 216:1
Clutch (freespooling): Rotating Ring Gear
Brake: Automatic Mechanical Cone
Drum Diameter/Length: 3.15"/9.0" (80mm/229mm)
Weight (kit shipping): 106 lbs. (48.08 kgs.)
Rope: 3/8" x 80' (9.52mm x24.38m) steel
Fairlead: Roller
Recommended Battery: 650 CCA for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Satin-black Powder coat
Warranty: Limited Lifetime
12V DC PERFORMANCE SPECS
Line Pull Lbs.(Kgs.)
Line Speed FT./min(M/min.)
Motor Current
0
44 (13.41)
55 amps
2000 (910)
17.8 (5.42)
149 amps
4000 (1810)
12 (3.65)
233 amps
6000 (2720)
10.7 (3.26)
311 amps
8000 (3630)
7.5 (2.28)
387 amps
10000 (4536)
5.6 (1.7)
465 amps
Above performance specs are based on first layer of drum
Winch Dimensions:
Integrated configuration 24.25" L. x 7.15" D. x 10.52" H. (615.9mm L. x 181.6mm D. x 267.1mm H.)
Low-profile configuration 24.25" L. x 7.84" D. x 10.52" H. (615.9mm L. x 181.6mm D. x 199.02mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
Winching's gold standard has just been raised: introducing ZEON Platinum. Featuring the Advanced Wireless Remotethe new command central control. With remote clutch, vehicle battery feedback, and even auxiliary controls for lights and more. Combine this with a new high-performance package and extreme waterproofing and you have the toughest, most technologically-advanced winch on the trail today. Backed by the WARN Limited Lifetime Warranty.
