WARN ZEON 10-S MULTI-MOUNT WINCH KIT

$1,649.99
In stock
SKU
92136-0216

Reliability and Performance: The 10,000 lb. (4536 kg) capacity is perfect for Jeeps, trucks, and SUVs.

Synthetic Rope: 100ft. of 3/8" Spydura synthetic winch rope is constructed from a unique ultra-high molecular weight polyethylene material to provide high abrasion resistance and tremendous tensile strength. Spydura is coated with high-temperature urethane and equipped with a temperature-resistant sleeve on first layer and ballistic nylon sliding sleeve to deliver extreme protection against wear and abrasion.

Winch Carrier: The WARN ZEON Multi-Mount Kits allow users to have a winch on the front or rear of the vehicle for maximum flexibility. Simply add the receiver to the front of the vehicle, the Quick Connect wiring to the rear and you're ready to go. Plugs into any standard 2 Inch Class III receiver.

Unique Exterior Styling: The symmetrical design gives this winch a look that is advanced, capable, and strong.

Remote Control: This Winch Kit includes an ultra-durable rubberized corded remote with 12' lead.

Robust and Strong: Planetary geartrain and series-wound motor deliver fast, quiet, and reliable pulling power. Robust aluminum housing is durable and helps dissipate heat. Automatic mechanical cone brake holds the full-rated load and offers excellent control while winching.

Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm).

Duty Cycle: Intermittent.

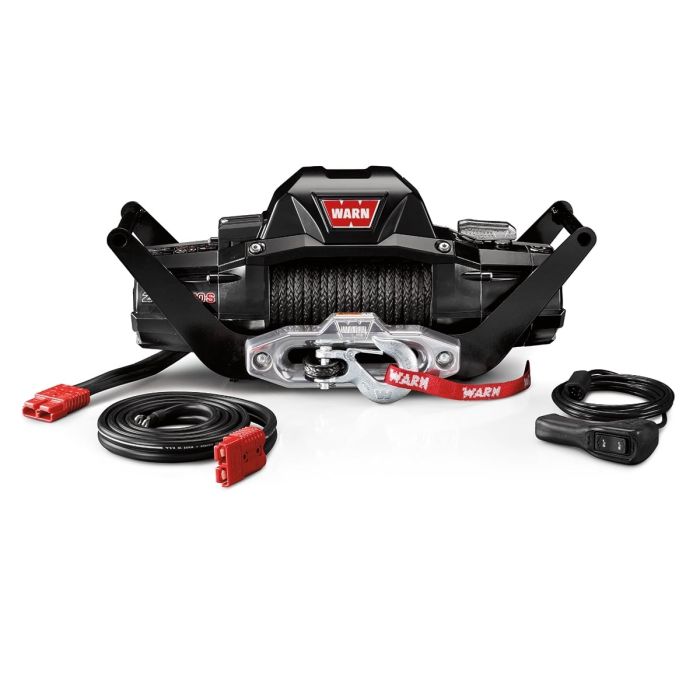

The Warn ZEON 10-S Multi-Mount Winch is tough enough to tackle your most extreme recovery needs, with a look that is advanced, capable and strong. Muck-busting sealing keeps out everything but the good times. Add a hyper-durable cast-aluminum housing, satin-black finish, and 10,000 lbs. single-line pulling capacity and, well, you've got a workhorse unit you can trust for years to come. This portable winch kit includes the winch, remote control, winch carrier, 7.5’ power leads with a Quick Connect plug, and a hawse fairlead.

Note: When mounting this winch on the rear of your vehicle a rear wiring harness is required, but is vehicle specific. Please contact customer service for wiring harness information.

More Information
Manufacturers Part Number 104179
Product Name WARN ZEON 10-S MULTI-MOUNT WINCH KIT
Prop 65 Message Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Length 27
Width 16
Depth 11
Weight 40.000000
Hazmat No
Brand WARN
Included Parts
  • (1) Warn ZEON Multi-Mount Winch - 10,000 lbs.
  • (1) Hawse Fairlead
  • (1) Spydura Synthetic Rope
  • (1) 7.5' of wiring for the front of vehicle
Winch Current Draw 353
Winch Intended Usage Frequent
Winch Max Line Speed 33
Winch Line Length 100
Winch Line Pull 10000
Winch Line Type Synthetic Rope
Winch Solenoid Integrated
Item Returns This item can be returned
