Legendary WARN reliability and performance; 12,000 lb. (5443 kg) capacity, perfect for the bigger vehicles
Includes 80' of 3/8" steel rope
Unique exterior styling and symmetrical design give this winch a look that is advanced, capable, and strong
New-design planetary geartrain and series-wound motor deliver fast, quiet, and reliable pulling power
Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion
Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately)
Large diameter, aluminum winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation
Robust aluminum housing is durable and helps dissipate heat
Improved winch sealing to keep the elements out; IP68 rated
Contactor control for extreme reliability and weather resistance
Automatic mechanical cone brake holds the full-rated load and offers excellent control while winching
Ultra-durable rubberized corded remote with 12' lead
Backed by the WARN Limited Lifetime Warranty
ZEON™ 10 SPECS/PART NUMBERS
Part Numbers: PN 89120 (12V DC)
Rated Line Pull: 12000 lbs. (5443 kgs.) single-line
Motor: 12V DC, Series Wound™
Electrical Controls: Contactor
Remote Control: Remote switch, 12" (3.7m) Lead
Geartrain: 3-Stage Planetary
Gear Ratio: 216.1
Clutch (freespooling): Rotating Ring Gear
Brake: Automatic Mechanical Cone
Drum Diameter/Length: 3.15"/9.0" (6.4cm/23cm)
Weight (kit shipping): 98 lbs. (44 kgs.)
Wire Rope: 3/8" x 80' (9.52mm x24.38m)
Fairlead: Roller
Recommended Battery: 650 CCA for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Satin-black Powder coat
Warranty: Limited Lifetime
12V DC PERFORMANCE SPECS
Line Pull Lbs.(Kgs.)
Line Speed FT./min(M/min.)
Motor Current
Pull by layer layer/Lbs(Kgs.)
0
30 (9.4)
50 amps
1/12000(5440)
2000(910)
13.4 (4.1)
128 amps
2/9894(4488)
4000(1810)
10.1 (3.1)
196 amps
3/8117 (3682)
6000(2720)
7.9 (2.4)
257 amps
4/7324 (3322)
8000(3630)
6.1 (1.8)
316 amps
5/6484 (2941)
10000(4540)
4.5 (1.4)
375 amps
12000(5440)
3.1 (0.9)
438 amps
Above performance specs are based on first layer of drum
Winch Dimensions:
Integrated configuration 24.25" L. x 7.15" D. x 10.52" H. (615.9mm L. x 181.6mm D. x 267.1mm H.)
Low-profile configuration 24.25" L. x 7.84" D. x 10.52" H. (615.9mm L. x 181.6mm D. x 199.02mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)

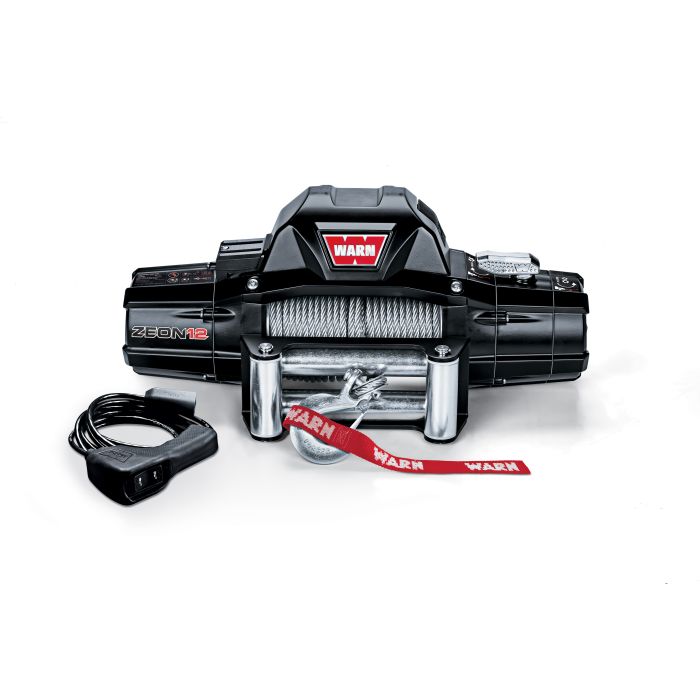

The next generation of winches is here: WARN® ZEON™. With a modern rugged design,
upgraded internal components, and increased performance and durability, ZEON™ is a new name from the most trusted name in winches. With a bold look and power to match, the
ZEON™ is like nothing you've ever seen before. The WARN ZEON 12 is the new face of winching. Bolt one on, and you'll be ready for anything. A top choice for those with heavily-loaded off-road vehicles, the ZEON 12 features innovative design, increased performance and durability, steel rope, and a hefty 12,000 lb. single-line pulling capacity. The ZEON 12 is a pulling machine you can rely on to rescue you-or your buddies, from nearly anything. Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required for remote mounting and sold separately).
