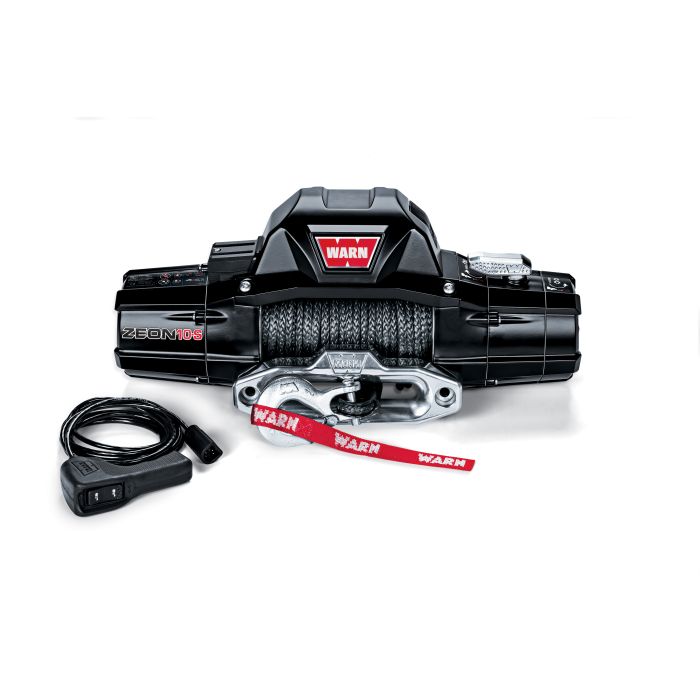

WARN ZEON 10-S WINCH W/SYNTHETIC ROPE
$1,249.98
In stock
SKU
92136-0203
| ZEON™ 10-S SPECS/PART NUMBERS |
| Part Numbers: PN 89611 (12V DC) |
| Rated Line Pull: 10000 lbs. (4536 kgs.) single-line |
| Motor: 12V DC, Series Wound™ |
| Electrical Controls: Contactor |
| Remote Control: Remote switch, 12" (3.7m) Lead |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 216.1 |
| Clutch (freespooling): Rotating Ring Gear |
| Brake: Automatic Mechanical Cone |
| Drum Diameter/Length: 3.15"/9.0" (6.4cm/23cm) |
| Weight (kit shipping): 75 lbs. (34 kgs.) |
| Rope: 3/8" x 100' (9.5mm x30.5m) Sypdura Synthetic |
| Fairlead: Hawse |
| Recommended Battery: 650 CCA for winching |
| Battery Leads: 2 gauge, 72" (1.83m) |
| Finish: Satin-black Powder coat |
| Warranty: Limited Lifetime |
| 12V DC PERFORMANCE SPECS | |||
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 33 (10.27) | 62 amps | 1/10000(4536) |
| 2000(910) | 14.9 (4.5) | 144 amps | 2/8245(3740) |
| 4000(1810) | 11.2 (3.4) | 215 amps | 3/7014(3181) |
| 6000(2720) | 8.5 (2.6) | 380 amps | 4/6103 (2768) |
| 8000(3630) | 6.5 (2.0) | 353 amps | 5/5402 (2450) |
| 10000(4536) | 4.8 (1.5) | 409 amps | |
 |
| Winch Dimensions: Integrated configuration 24.25" L. x 7.15" D. x 10.52" H. (615.9mm L. x 181.6mm D. x 267.1mm H.) Low-profile configuration 24.25" L. x 7.84" D. x 10.52" H. (615.9mm L. x 181.6mm D. x 199.02mm H.) |
| Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm) |
The next generation of winches is here: WARN® ZEON™. With a modern rugged design,
upgraded internal components, and increased performance and durability, ZEON™ is a new name from the most trusted name in winches. With a bold look and power to match, the
ZEON™ is like nothing you've ever seen before. Choose your way to conquer the terrain. The ZEON 10-S is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck-busting sealing keeps out everything but the good times. Add a hyper-durable cast-aluminum housing, satin-black finish, and 10,000 lbs. single-line pulling capacity and, well, you've got a workhorse unit you can trust for years to come. Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required for remote mounting and sold separately).
| Manufacturers Part Number | 89611 |
|---|---|
| Product Name | WARN ZEON 10-S WINCH W/SYNTHETIC ROPE |
| Dropdown Value 1 | WARN ZEON 10-S WINCH W/SYNTHETIC ROPE |
| Prop 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Length | 27 |
| Width | 18 |
| Depth | 9 |
| Weight | 81.000000 |
| Hazmat | No |
| Brand | WARN |
| Winch Current Draw | 353 |
| Winch Intended Usage | Frequent |
| Winch Max Line Speed | 33 |
| Winch Line Length | 100 |
| Winch Line Pull | 10000 |
| Winch Line Type | Synthetic Rope |
| Winch Remote | Wired |
| Winch Solenoid | Integrated |
| Item Returns | This item can be returned |
