Legendary WARN reliability and performance; 10,000 lb. (4536 kg) capacity, perfect for heavier trucks and SUVs
Includes 80' of 3/8" steel rope
Unique exterior styling and symmetrical design give this winch a look that is advanced, capable, and strong
New-design planetary geartrain and series-wound motor deliver fast, quiet, and reliable pulling power
Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion
Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately)
Large diameter, aluminum winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation
Robust aluminum housing is durable and helps dissipate heat
Improved winch sealing to keep the elements out; IP68 rated
Contactor control for extreme reliability and weather resistance
Automatic mechanical cone brake holds the full-rated load and offers excellent control while winching
Ultra-durable rubberized corded remote with 12' lead
Backed by the WARN Limited Lifetime Warranty

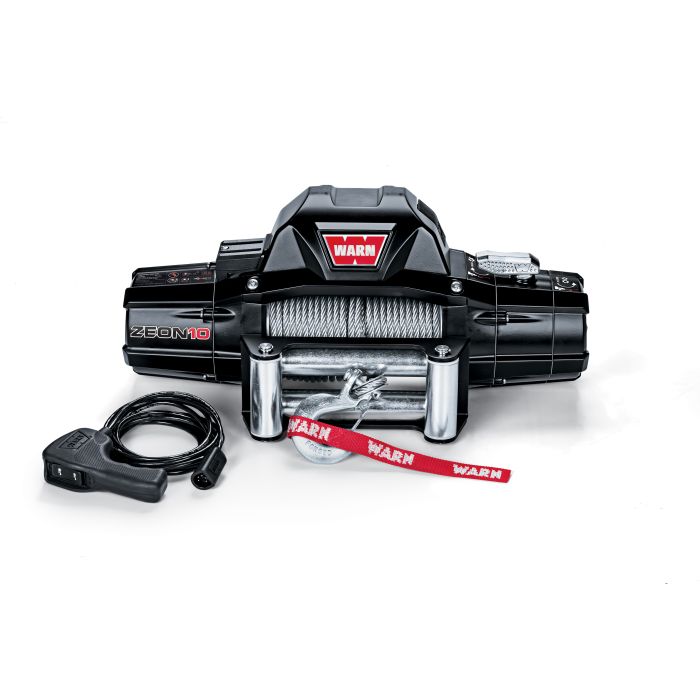

ZEON™ 10 SPECS/PART NUMBERS
Part Numbers: PN 88990 (12V DC)
Rated Line Pull: 10000 lbs. (4536 kgs.) single-line
Motor: 12V DC, Series Wound™
Electrical Controls: Contactor
Remote Control: Remote switch, 12" (3.7m) Lead
Geartrain: 3-Stage Planetary
Gear Ratio: 216.1
Clutch (freespooling): Rotating Ring Gear
Brake: Automatic Mechanical Cone
Drum Diameter/Length: 3.15"/9.0" (6.4cm/23cm)
Weight (kit shipping): 98 lbs. (44 kgs.)
Wire Rope: 3/8" x 80' (9.52mm x24.38m)
Fairlead: Roller
Recommended Battery: 650 CCA for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Satin-black Powder coat
Warranty: Limited Lifetime
12V DC PERFORMANCE SPECS
Line Pull Lbs.(Kgs.)
Line Speed FT./min(M/min.)
Motor Current
Pull by layer layer/Lbs(Kgs.)
0
33 (10.27)
62 amps
1/10000(4536)
2000(910)
14.9 (4.5)
144 amps
2/8245(3740)
4000(1810)
11.2 (3.4)
215 amps
3/7014(3181)
6000(2720)
8.5 (2.6)
380 amps
4/6103 (2768)
8000(3630)
6.5 (2.0)
353 amps
5/5402 (2450)
10000(4536)
4.8 (1.5)
409 amps
Above performance specs are based on first layer of drum
Winch Dimensions:
Integrated configuration 24.25" L. x 7.15" D. x 10.52" H. (615.9mm L. x 181.6mm D. x 267.1mm H.)
Low-profile configuration 24.25" L. x 7.84" D. x 10.52" H. (615.9mm L. x 181.6mm D. x 199.02mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
The next generation of winches is here: WARN® ZEON™. With a modern rugged design,
upgraded internal components, and increased performance and durability, ZEON™ is a new name from the most trusted name in winches. With a bold look and power to match, the
ZEON™ is like nothing you've ever seen before. Choose your way to conquer the terrain. The ZEON 10 is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck-busting sealing keeps out everything but the good times. Add a hyper-durable cast-aluminum housing, satin-black finish, and 10,000 lbs. single-line pulling capacity and, well, you've got a workhorse unit you can trust for years to come. Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required for remote mounting and sold separately).
