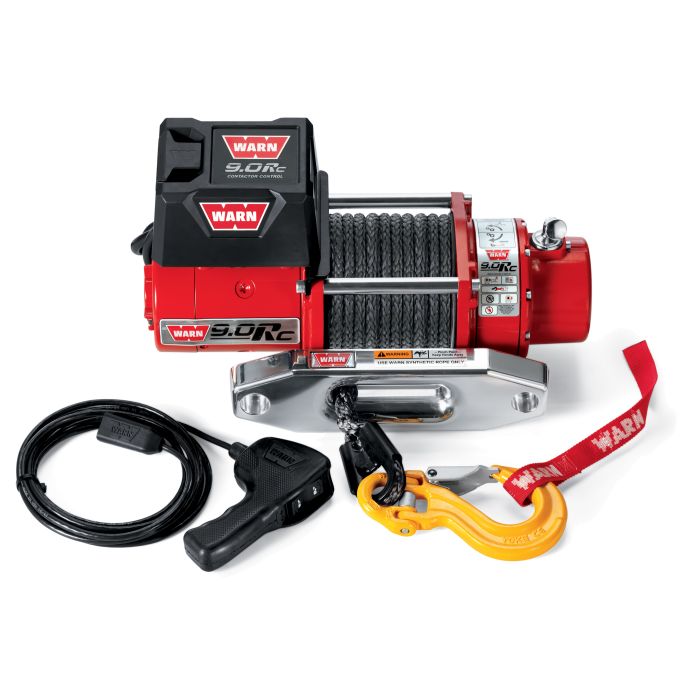

WARN 9.0 RC ROCK CRAWLER WINCH
$2,405.49
In stock
SKU
92134-200
Competitive rock crawling means tackling tough climbs and tight turns. That's why rock crawling rigs need a low-profile, lightweight winch like the WARN 9.0Rc that delivers maximum power in a compact, 54-lb. unit.
Like its professional counterpart, the 9.0R, the 9.0Rc is a short-drum, 9,000 lb. capacity winch that features a 4.8 hp Series Wound Motor for fast line speeds. An exclusive, multi-segment Cam Actuated Brake gives positive operator control during winching.
The 9.0Rc comes standard with 50' of 3/8" diameter synthetic rope. Other features include: a chromate undercoating and gloss red paint that provide superior corrosion resistance; a rugged, 360-degree swivel hook and thimble; an aluminum hawse fairlead; extreme duty winch sealing; and a "Ballistic Nylon" Sliding Sleeve that provides extra protection against abrasion and wear.
The 9.0Rc - a winch built for rock crawlers looking for efficiency, reliability and the legendary WARN performance.
Above performance specs are based on first layer of drum
Like its professional counterpart, the 9.0R, the 9.0Rc is a short-drum, 9,000 lb. capacity winch that features a 4.8 hp Series Wound Motor for fast line speeds. An exclusive, multi-segment Cam Actuated Brake gives positive operator control during winching.
The 9.0Rc comes standard with 50' of 3/8" diameter synthetic rope. Other features include: a chromate undercoating and gloss red paint that provide superior corrosion resistance; a rugged, 360-degree swivel hook and thimble; an aluminum hawse fairlead; extreme duty winch sealing; and a "Ballistic Nylon" Sliding Sleeve that provides extra protection against abrasion and wear.
The 9.0Rc - a winch built for rock crawlers looking for efficiency, reliability and the legendary WARN performance.
| 9.0Rc SPECS/PART NUMBER |
| Part Number: 71550 |
| Rated Line Pull: 9000 lbs. (4080 kgs.) single-line |
| Motor: Series Wound, 12V 4.8 hp |
| Remote Control: Remote switch, 12' (3.7m) lead, S2 elements, integrated flashlight |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 216:1 |
| Lubrication: Aeroshell #17 |
| Clutch (freespooling): Sliding Ring Gear |
| Brake: Automatic Direct Drive Cone |
| Drum Diameter/Length: 2.75"/4.75" (7.0cm/12cm) |
| Weight: 54 lbs. (24.8 kgs) |
| Rope: 50', 3/8" Synthetic Rope |
| Fairlead: Polished Aluminum Hawse |
| Recommended Battery: 650 CCA minimum for winching |
| Battery Leads: 2 gauge, 72" (1.83m) |
| Finish: Chromate with high-gloss red paint |
| Nuts/Bolts: PN 39625 |
| PERFORMANCE SPECIFICATIONS | |||
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 42 (12.8) | 80 amps | 1/900 (4082) |
| 2000 | 16 (4.88) | 200 amps | 2/7280 (3302) |
| 4000 | 11.9 (3.63) | 285 amps | 3/6670 (3026) |
| 6000 | 9.79 (2.98) | 350 amps | 4/6230 (2826) |
| 8000 | 8.01 (2.44) | 435 amps | |
| 9000 | 6.4 (1.94) | 465 amps | |
Above performance specs are based on first layer of drum
Competitive rock crawling rigs need a low-profile, lightweight winch like the WARN 9.0Rc that delivers maximum power in a compact, 54-lb. unit. The 9.0Rc is a short-drum, 9,000 lb. capacity winch that features a 4.8 hp series wound motor with fast line speeds. An exclusive, multi-segment cam actuated brake gives positive operator control during winching. The 9.0Rc comes complete with 50' of 3/8" diameter synthetic rope. Features include gloss red paint; a rugged, 360-degree swivel hook and thimble; an aluminum hawse fairlead; extreme duty winch sealing; and a "Ballistic Nylon" Sliding Sleeve that provides extra protection against abrasion and wear.
| Manufacturers Part Number | 71550 |
|---|---|
| Product Name | WARN 9.0 RC ROCK CRAWLER WINCH |
| Dropdown Value 1 | WARN 9.0 RC ROCK CRAWLER WINCH |
| Prop 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Length | 27 |
| Width | 19 |
| Depth | 8 |
| Weight | 40.000000 |
| Hazmat | No |
| Brand | WARN |
| Included Parts | 50' of 3/8" diameter Synthetic Rope Polished Aluminum Hawse Fairlead 12V 4.8 hp Series Wound Motor 2 gauge, 72" (1.83m) Battery Leads |
| Winch Current Draw | 435 |
| Winch Intended Usage | Frequent |
| Winch Max Line Speed | 42 |
| Winch Line Length | 50 |
| Winch Line Pull | 9000 |
| Winch Line Type | Synthetic Rope |
| Winch Remote | Wired |
| Winch Solenoid | Remote |
| Item Returns | This item can be returned |
