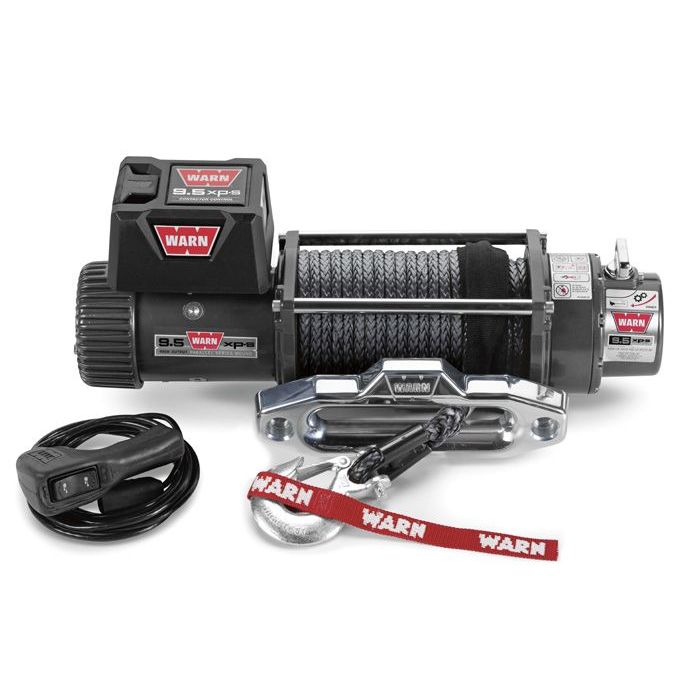

WARN 9.5XP-S WINCH
$2,811.89
In stock
SKU
92134-1010
The fast, powerful WARN 9.5xp is designed for the serious off-roader who demands a winch that will perform under the most extreme conditions in the world. With 9,500 lbs. of pulling power, the longest duty cycle and fastest line speed of any WARN winch under load, the 9.5xp delivers extreme performance that eats up the competition-even in competition.
The 9.5xp winch features an all new, High Output Parallel Series Wound winch motor that's the strongest and most durable in the industry. The 6 hp motor, 3-stage planetary gearing and continuous duty control pack work in sync to tackle the most demanding pulls. Full face contact drum seals, motor and end housing gaskets deliver extreme-duty water resistance. A high gloss, chip resistant powder coat finish over chromate coated alloys affords superior corrosion resistance.
The 9.5xp winch features an all new, High Output Parallel Series Wound winch motor that's the strongest and most durable in the industry. The 6 hp motor, 3-stage planetary gearing and continuous duty control pack work in sync to tackle the most demanding pulls. Full face contact drum seals, motor and end housing gaskets deliver extreme-duty water resistance. A high gloss, chip resistant powder coat finish over chromate coated alloys affords superior corrosion resistance.
|
||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
| Above performance specs are based on first layer of drum | ||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
| Winch Dimensions: 22.7" L. x 6.3" D. x 7.7" H. (577mm L. x 160mm D. x 196 mm H) |
||||||||||||||||||||||||||||||||
| Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm) | ||||||||||||||||||||||||||||||||
With 9,500 lbs of pulling power, the longest duty cycle and fastest line speed of any WARN winch under load, the 9.5 XP delivers extreme performance! The 9.5 XP winch features, High Output Parallel Series Wound winch motor that's the strongest and most durable in the industry. The 6 hp motor, 3-stage planetary gearing and continuous duty control pack work in sync to tackle the most demanding pulls. Full face contact drum seals, motor and end housing gaskets deliver extreme-duty water resistance.
| Manufacturers Part Number | 87310 |
|---|---|
| Product Name | WARN 9.5XP-S WINCH |
| Dropdown Value 1 | WARN 9.5XP-S WINCH |
| Prop 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Length | 27 |
| Width | 19 |
| Depth | 8 |
| Weight | 76.000000 |
| Hazmat | No |
| Brand | WARN |
| Included Parts | 100', 3/8" Spydura™ Synthetic Rope with Hook and Protective Sleeve 12V 6 hp, High Output Parallel Series Wound Polished Aluminum Hawse Fairlead Remote switch, 12' (3.7m) lead Spring- loaded control switches Automatic Direct Drive Cone Brake 3-Stage Planetary with a 156:1 ratio Sliding Ring Gear Clutch for freespooling Contactor Control Box Color-coded 2 gauge, 72" cables and connectors. |
| Winch Current Draw | 425 |
| Winch Intended Usage | Frequent |
| Winch Max Line Speed | 38 |
| Winch Line Length | 100 |
| Winch Line Pull | 9500 |
| Winch Line Type | Synthetic Rope |
| Winch Remote | Wired |
| Winch Solenoid | Remote |
| Item Returns | This item can be returned |
