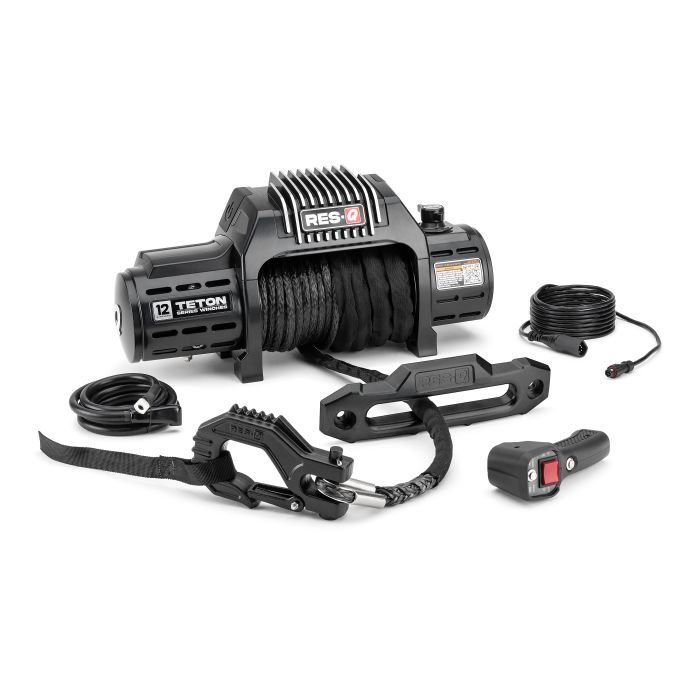

RES-Q WINCH 12K WITH SYNTHETIC WINCH CABLE
The all-new RES-Q Teton Series Winch is a superior performance tool every bit as powerful as it is beautiful and affordable. Engineered with a 4.9 HP series wound waterproof motor with wireless remote control, this unique winch also gives you two never-seen-before features in a removable clutch lever and amber LED winch spool light strip to make nighttime recoveries much easier. Includes die-cast finned aluminum solenoid housings that dissipate heat, as well as class-leading gear ratios for fast line speed, low current draw and a lightweight synthetic line that is stronger (and safer) than steel versions. Weather-beating IP68 rating means the winch is fully waterproof and submersible up to six feet for 30 minutes, while also being able to withstand dust, dirt and sand. Available in 10k and 12k pull ratings. Features a limited lifetime warranty on mechanical parts and one-year warranty on electrical components.
| RES-Q Teton 12K Performance Winch Specs |
| Rated Line Pull (Single Line): 12,000 lbs (5443 kgs) |
| Gear Reduction Ratio: 294:1 |
| Motor (Series Wound): 12 Volt / 4.9 Hp (3.65 Kw) |
| Drum Size: 2.64” x 8.35” (67mm x 212mm) |
| Winch Line: 3/8” x 82’ |
| Overall Dimension: 21” x 6.375” x 10” (533.4 mm x 162 mm x 254 mm) |
| Net Weight: 85.0 lbs. (38.55 kgs) for Steel Cable / 61.0 lbs. (27.67 kgs) for Synthetic Line |
| Mounting Bolt Pattern: 10” x 4.5” (254mm x 114.3mm) |
Safe Line Performance: Synthetic rope is both lighter and more durable than steel, and does not snap with dangerous recoil energy like a steel cable can. Plus, it is easier to handle and does not rust or kink like steel lines.
Superior Strength: Engineered with a 10,000-pound pull rating that can move more than double the weight of a 4-door Wrangler.
Mother Nature Defiant: Includes an IP68 rating — meaning the winch is waterproof and submersible in water up to 6 feet for 30 minutes, as well as being able to withstand dust, dirt and sand.
Security Strong: Features a patented removable clutch handle that doubles as a 'key' which can be temporarily removed to deter winch line theft, vandalism & pranksters.
Front Protection: Teton Winch includes an aluminum hawse fairlead for better hook and line security.
Light The Way: Unique LED dual color white or amber winch spool light strip can be activated when winch is in use for easier nighttime recoveries. Plus, light will time out after 10 minutes of non-use.
| Manufacturers Part Number | 92128-1101 |
|---|---|
| Product Name | RES-Q WINCH 12K WITH SYNTHETIC WINCH CABLE |
| Prop 65 Message | This product can expose you to chemicals including chromium (hexavalent compounds), which are kwn to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
| Length | 24 |
| Width | 16 |
| Depth | 10 |
| Weight | 70.000000 |
| Hazmat | No |
| Winch Max Line Speed | 16 |
| Winch Line Length | 82 |
| Winch Line Pull | 12000 |
| Winch Line Type | Synthetic Rope |
| Item Returns | This item can be returned |
