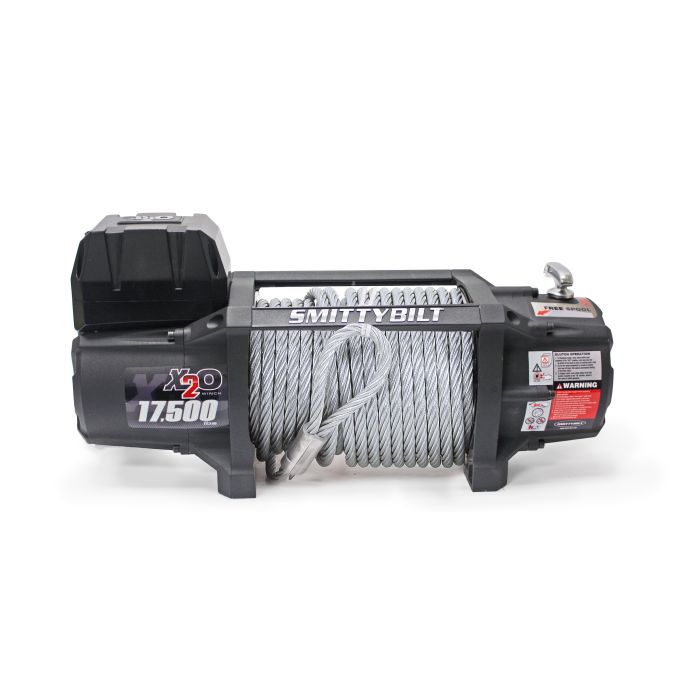

X2O 17.5 GEN 2 17500LB WINCH

$899.99
In stock
SKU
92122-1303
  • Waterproofing: IP68 Rating
  • Rated Line Pull: 17,500Lbs (7,954kgs) Single Line
  • Motor: 6.6hp Series Wound
  • Control: Remote Switch, 12' (3.7m) lead
  • Gear Train: 3-Stage Planetary
  • Gear Ratio: 430:1
  • Clutch: Sliding Ring Gear
  • Brake: Automatic Out-Of-Drum
  • Drum Size: Diameter 3.45”
  • Cable: 98.5' 3/8” Diameter
  • Fairlead: 4-Way Roller
  • Remote Control: Included
  • Recommended Battery: 650CCA Minimum for Winching
  • Battery Leads: 25mm2, 72”(1.83m)1
  • Finish: Textured Black
  • Weight: 150.0Lbs (45.0Kgs)
  • Mounting Bolt Pattern: 10.0” x 4.50”
  • Overall Dimensions: (L x W x H) 22.3” x 7.5” x 10.7”
The new Smittybilt X2O Winches have been enhanced in almost every area for increased performance and trouble free operation. Every X2O winch features a Series Wound 6.6 HP motor that is completely sealed, as well as a 3-Stage Planetary Gear System. The X2O line features a completely waterproof 500 AMP solenoid pack that can be mounted in 2 different locations, depending on your application needs. They also include a new controller that can be wired to the winch or unplugged for trouble-free wireless operation. The X2O also features optimized gear ratios that deliver lightning-fast line speeds. If you''re looking for something more versatile, check out the X2O Comp Series, which includes all of the features and benefits of the original series, and adds a synthetic winch rope. And finally, all X2O winches are covered by the Smittybilt Lifetime Warranty, providing peace of mind as well as unparalled performance. With all of these features, you can count on the X2O winch to be there every time, in every situation.
More Information
Manufacturers Part Number SB97517
Product Name X2O 17.5 GEN 2 17500LB WINCH
Dropdown Value 1 X2O 17.5 GEN 2 17500LB WINCH
Prop 65 Message WARNING- Cancer and Reproductive Harm- www.P65warnings.ca.gov
Length 25
Width 14
Depth 14
Weight 120.000000
Hazmat No
Brand Smittybilt
Included Parts Winch Wireless Remote
Winch Current Draw 450
Winch Intended Usage Occasional
Winch Max Line Speed 23
Winch Line Length 98
Winch Line Pull 17500
Winch Line Type Steel Cable
Winch Remote Wireless
Winch Solenoid Remote
Item Returns This item can be returned
