MULTI MOUNT XD9000I & FRAME 37441
$1,567.51
In stock
SKU
92113-00

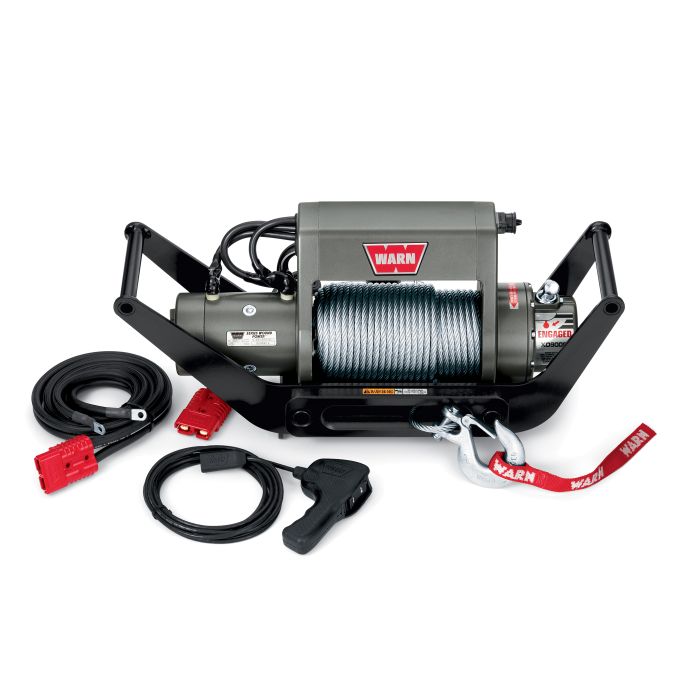

This Kit includes winch, remote, carrier, 7.5' power lead with quick connect plug for front of vehicle and hawse fairlead. Front receiver and rear power lead sold separately.
Above performance specs are based on first layer of drum
Copyright © 2013-present Magento, Inc. All rights reserved.
| XD9000i MULTI-MOUNT™ SPECS/PART NUMBERS |
| Part Number: PN 37441 |
| Rated Line Pull: 9000 lbs. (4080 kgs.) single-line |
| Motor: 12V 4.6hp, Series Wound™ |
| Remote Control: Remote switch, 12' (3.7m) lead |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 156:1 |
| Lubrication: Aeroshell #17 |
| Clutch (freespooling): Sliding Ring Gear |
| Brake: Automatic Direct Drive Cone |
| Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm) |
| Weight: 104 lbs. (47 kgs.) |
| Wire Rope: 125', 5/16" diameter (38m, 8mm diameter) |
| Fairlead: Hawse |
| Recommended Battery: 650 CCA minimum for winching |
| Battery Leads: Front heavy-duty 7.5' (2.2m) with quick connect plug |
| Finish: Argent Powder Coat |
| 12V DC PERFORMANCE SPECS | |||
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 38(11.6) | 70 amps | 1/9000(4082) |
| 2000(910) | 14.4(4.39) | 180 amps | 2/8190(3715) |
| 4000(1810) | 11(3.35) | 255 amps | 3/7500(3402) |
| 6000(2720) | 8.67(2.64) | 330 amps | 4/7010(3180) |
| 8000(3630) | 6.88(2.10) | 415 amps | 5/6570(2980) |
| 9000(4080) | 6.38(1.94) | 460 amps | |
Above performance specs are based on first layer of drum
All the power and reliability of the XD9000i in a portable package. No-load retrieval line speed is fast-38 feet/minute. Integrated control pack protects the winch's electrical components, and the 4.6hp Series Wound™ motor delivers big torque and power. Plugs into any standard 2" Class III receiver hitch and gives you the ability to move the winch from the front or back of your rig. Power is supplied through quick connect plugs. A good choice for full-size rigs and heavier recovery situations.
| Manufacturers Part Number | 37441 |
|---|---|
| Product Name | MULTI MOUNT XD9000I & FRAME 37441 |
| Dropdown Value 1 | MULTI MOUNT XD9000I & FRAME |
| Prop 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Length | 28 |
| Width | 18 |
| Depth | 17 |
| Weight | 119.000000 |
| Hazmat | No |
| Brand | WARN |
| Included Parts | XD9000i Winch 12V 4.6hp Series Wound Motor 125' 5/16" Wire Cable Hawse Fairlead 12' Wired Remote Winch Carrier 7.5' Power Lead with Quick Connect Plug |
| Winch Current Draw | 415 |
| Winch Intended Usage | Frequent |
| Winch Max Line Speed | 38 |
| Winch Line Length | 125 |
| Winch Line Pull | 9000 |
| Winch Line Type | Steel Cable |
| Winch Remote | Wired |
| Winch Solenoid | Integrated |
| Item Returns | This item can be returned |
