WINCH WARN M12000 W/FAIRLEAD

Be the first to review this product

$2,409.74

In stock

SKU

92107-00

M12000 SPECS/PART NUMBERS

Part Numbers: PN 17801 CE (12V DC)

Rated Line Pull: 12000 lbs. (5440 kgs.) single-line

Motor: 12V 4.6 hp Series Wound™

Remote Control: Remote switch, 12' (3.7m) lead

Geartrain: 3-Stage Planetary

Gear Ratio: 261:1

Lubrication: Aeroshell # 17

Clutch (freespooling): Rotating Ring Gear

Brake: Automatic Direct Drive Cone

Drum Diameter/Length: 3.5"/8.2" (9cm/21cm)

Weight: 136lbs. (62kgs.)

Wire Rope: 125', 3/8"diameter (38m, 9.5mm diam)

Fairlead: Roller

Recommended Battery: 650 CCA minimum for winching

Battery Leads: 2 gauge, 72" (1.83m)

Finish: Argent Gray Powder Coat

Nuts/Bolts: PN 39572

CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead, safety hook and thimble.

12V DC PERFORMANCE SPECS
Line Pull Lbs.(Kgs.)	Line Speed FT./min(M/min.)	Motor Current	Pull by layer layer/Lbs(Kgs.)
0	30(9.14)	67 amps	1/1200(5443)
2000(910)	14(4.27)	140 amps	2/11120(5044)
4000(1810)	8.62(2.63)	210 amps	3/10340(4690)
6000(2720)	6.92(2.11)	250 amps	4/9770(4432)
8000(3630)	5.80(1.77)	320 amps	5/9250(4196)
10000(4540)	4.39(1.34)	370 amps
12000(5440)	3.86(1.18)	440 amps

Above performance specs are based on first layer of drum

Winch Dimensions: 24.37" L. x 8.45" D. x 11" H.
(6.19mm L. x 214.63mm D. x 279mm H.)

Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)

Skip to the end of the images gallery

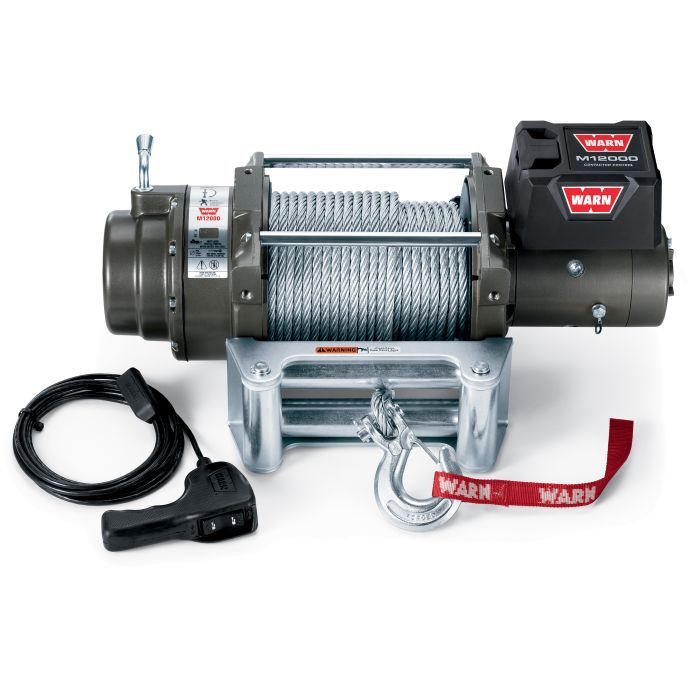

WARN 17801 M12000 Self-Recovery Winch (12V DC)

Skip to the beginning of the images gallery

Details

For heavy-duty winching needs, this winch is a champion workhorse. Big torque, power and quick no-load retrieval speed is 30 feet per minute. Its design is low profile, so it'll fit where you want. And it's powered by the 4.6-hp Series Wound™ motor and our proven three-stage planetary gear train. With 125 ft. of 3/8" wire rope, the WARN M12000 can solve most any pulling problem.

Wireless Remote Control System can be added which is also available separately.

More Information

More Information
Manufacturers Part Number	17801
Product Name	WINCH WARN M12000 W/FAIRLEAD
Dropdown Value 1	WINCH WARN M12000 W/FAIRLEAD
Prop 65 Message	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Length	27
Width	17
Depth	12
Weight	134.000000
Hazmat	No
Brand	WARN
Included Parts	125', 3/8"diameter (38m, 9.5mm diam) 12V 4.6 hp, 24V 2.5 hp Series Wound Motor Remote switch, 12' (3.7m) lead Direct Drive Cone Break Spring- loaded control switches Contactor Control Pack 3-Stage Planetary Gears with a 216.1 Ratio Sliding Ring Gear clutch for free spooling Weather-shielded solenoids. Color-coded cables and connectors. Roller Fairlead
Winch Current Draw	320
Winch Intended Usage	Frequent
Winch Max Line Speed	30
Winch Line Length	125
Winch Line Pull	12000
Winch Line Type	Steel Cable
Winch Remote	Wired
Winch Solenoid	Remote
