WINCH WARN XD9000 W/FAIRLEAD

Be the first to review this product

$2,299.99

In stock

SKU

92106-01

XD9000 SPECS/PART NUMBERS

Part Numbers: PN 28500 CE (12V DC) , PN 265012 CE (24V DC)

Rated Line Pull: 9000 lbs. (4080 kgs.) single-line

Motor: 12V 4.6 hp, 24V 2.5 hp Series Wound™

Remote Control: Remote switch, 12' (3.7m) lead

Geartrain: 3-Stage Planetary

Gear Ratio: 156:1

Lubrication: Aeroshell #17

Clutch (freespooling): Sliding Ring Gear

Brake: Automatic Direct Drive Cone

Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)

Weight: 78 lbs. (35 kgs.)

Wire Rope: 100', 5/16"diameter (30m, 8mm diameter)

Fairlead: Roller

Recommended Battery: 650 CCA minimum for winching

Battery Leads: 2 gauge, 72" (1.83m)

Finish: Argent Powder Coat

Nuts/Bolts: PN 39625

CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead, safety hook and thimble.

12V DC PERFORMANCE SPECS
Line Pull Lbs.(Kgs.)	Line Speed FT./min(M/min.)	Motor Current	Pull by layer layer/Lbs(Kgs.)
0	38(11.6)	70 amps	1/9000(4082)
2000(910)	14.4(4.39)	180 amps	2/8190(3715)
4000(1810)	11(3.35)	255 amps	3/7500(3402)
6000(2720)	8.67(2.64)	330 amps	4/7010(3180)
8000(3630)	6.88(2.10)	415 amps
9000(4080)	6.38(1.94)	460 amps

Above performance specs are based on first layer of drum

Winch Dimensions: 21.8" L. x 6.3" D. x 7.6" H.
(555mm L. x 160mm D. x 193mm H.) Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)

Skip to the end of the images gallery

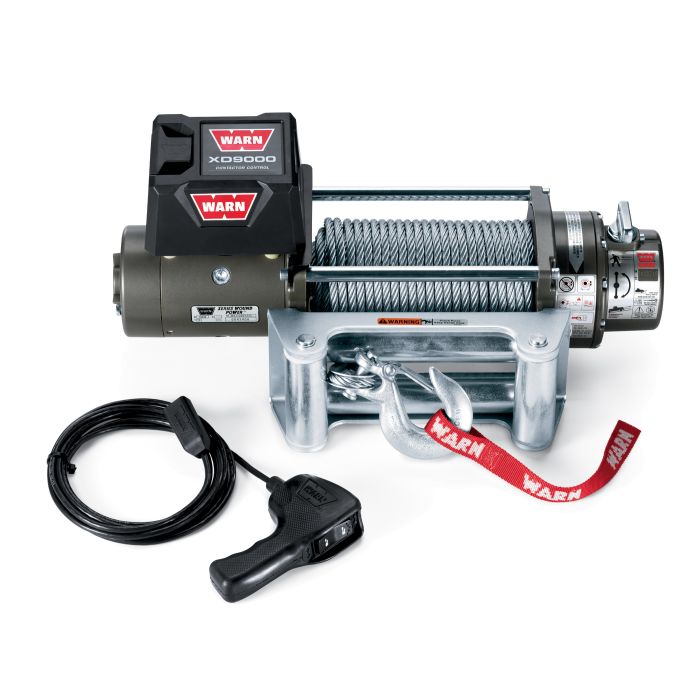

WARN 28500 XD9000 Self-Recovery Winch (12V DC)

Skip to the beginning of the images gallery

Details

A long-time best seller, the XD9000's compact body and separate control pack lets it work effectively in very tight spaces. It uses the 4.6 hp Series Wound™ motor and three-stage planetary gearing offered on most of their winches, so torque and line speed are outstanding. A quiet, double-durable winch, pure and simple.

Wireless Remote Control System can be added which is also available separately.

More Information

More Information
Manufacturers Part Number	28500
Product Name	WINCH WARN XD9000 W/FAIRLEAD
Dropdown Value 1	WINCH WARN XD9000 W/FAIRLEAD
Prop 65 Message	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Length	27
Width	19
Depth	9
Weight	90.000000
Hazmat	No
Brand	WARN
Included Parts	XD9000 Winch Series Wound Motor 100', 5/16" diam. (30m, 8mm diam.) Wire Rope Roller Fairlead 12' Wired Remote Control
Winch Current Draw	415
Winch Intended Usage	Occasional
Winch Max Line Speed	38
Winch Line Length	100
Winch Line Pull	9000
Winch Line Type	Steel Cable
Winch Remote	Wired
Winch Solenoid	Remote
Item Returns	This item can be returned
