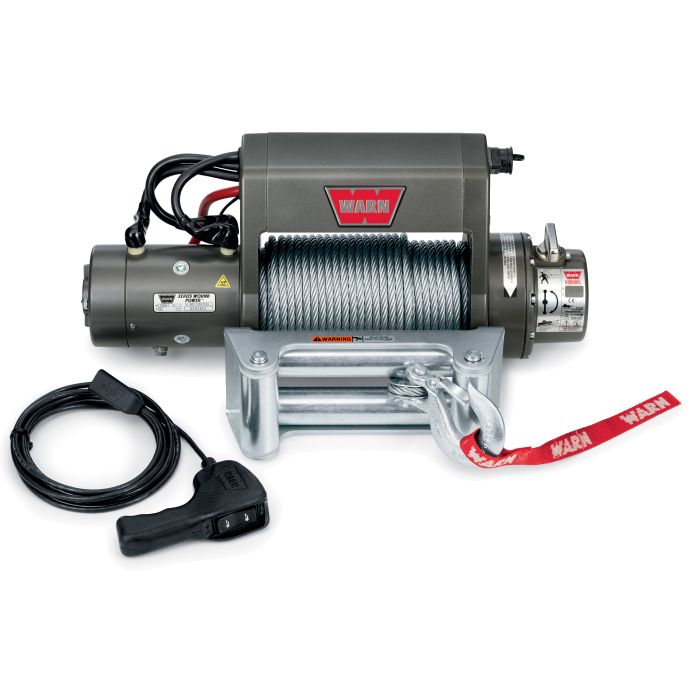

WINCH WARN XD9000I W/FAIRLEAD

Be the first to review this product

$2,519.99

In stock

SKU

92106-00

XD9000i SPECS/PART NUMBERS

Part Number: PN 27550 CE (12V DC)

Rated Line Pull: 9000 lbs. (4080 kgs.) single-line

Motor: 12V 4.6 hp, 24V 2.5 hp, Series Wound™

Remote Control: Remote switch, 12' (3.7m) lead

Geartrain: 3-Stage Planetary

Gear Ratio: 156:1

Lubrication: Aeroshell #17

Clutch (freespooling): Sliding Ring Gear

Brake: Automatic Direct Drive Cone

Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)

Weight: 85 lbs. (38.5 kgs.)

Wire Rope: 125', 5/16" diameter (38m, 8mm diameter)

Fairlead: Roller

Recommended Battery: 650 CCA minimum for winching

Battery Leads: 2 gauge, 72" (1.83m)

Finish: Argent Powder Coat

Nuts/Bolts: PN 39570

CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, Manuals, Safety Hook and Thimble.

12V DC PERFORMANCE SPECS
Line Pull Lbs.(Kgs.)	Line Speed FT./min(M/min.)	Motor Current	Pull by layer layer/Lbs(Kgs.)
0	38(11.6)	70 amps	1/9000(4082)
2000(910)	14.4(4.39)	180 amps	2/8190(3715)
4000(1810)	11(3.35)	255 amps	3/7500(3402)
6000(2720)	8.67(2.64)	330 amps	4/7010(3180)
8000(3630)	6.88(2.10)	415 amps	5/6570(2980)
9000(4080)	6.38(1.94)	460 amps

Above performance specs are based on first layer of drum

Winch Dimensions: 21.8" L. x 6.3" D. x 9.94" H.
(553mm L. x 160mm D. x 252mm H.)

Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

You'll probably see more XD9000i winches on trail rigs than any other winch. No load line speed of 38-feet per minute and three-stage planetary gearing and the ability to run cool with low amp draw for long winching cycles are just a few reasons why.

Wireless Remote Control System can be added which is also available separately.

More Information

More Information
Manufacturers Part Number	27550
Product Name	WINCH WARN XD9000I W/FAIRLEAD
Dropdown Value 1	WINCH WARN XD9000I W/FAIRLEAD
Prop 65 Message	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Length	36
Width	18
Depth	9
Weight	94.000000
Hazmat	No
Brand	WARN
Included Parts	125', 5/16" diameter (38m, 8mm diameter) Zinc plated Roller Fairlead 12V 4.8 hp Series Wound™ Motor Remote switch, 12' (3.7m) lead Spring- loaded control switches Automatic Direct Drive Cone Brake 3-Stage Planetary with a 156:1 ratio Sliding Ring Gear Clutch for freespooling Contactor Control Box Color-coded 2 gauge, 72" cables and connectors.
Winch Current Draw	415
Winch Intended Usage	Occasional
Winch Max Line Speed	38
Winch Line Length	125
Winch Line Pull	9000
Winch Line Type	Steel Cable
Winch Remote	Wired
Winch Solenoid	Integrated
