WINCH WARN M8000 W/ROLLER FAIRLEAD

Be the first to review this product

$1,169.58

In stock

SKU

92104-01

M8000 SPECS/PART NUMBERS

Part Number: PN 26502 CE (12V DC) 100' wire rope and roller fairlead

Rated Line Pull: 8000 lbs. (3630 kgs.) single-line

Motor: 12V 4.8 hp, Series Wound™

Remote Control: Remote switch, 12' (3.7m) lead

Geartrain: 3-Stage Planetary

Gear Ratio: 216:1

Lubrication: Aeroshell #17

Clutch (freespooling): Sliding Ring Gear

Brake: Automatic Direct Drive Cone

Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)

Weight: 74 lbs. (34 kgs.)

Wire Rope: 100', 5/16" diam. (30m, 8mm diam.)

Fairlead for PN 26502: Roller

Recommended Battery: 650 CCA minimum for winching

Battery Leads: 2 gauge, 72" (1.83m)

Finish: Argent Gray Powder Coat

Nuts/Bolts: PN 39625

12V DC PERFORMANCE SPECS
Line Pull Lbs.(Kgs.)	Line Speed FT./min(M/min.)	Motor Current	Pull by layer layer/Lbs(Kgs.)
0	42(12.8)	80 amps	1/8000(3629)
2000(910)	16(4.88)	200 amps	2/7280(3302)
4000(1810)	11.9(3.63)	285 amps	3/6670(3026)
6000(2720)	9.79(2.98)	350 amps	4/6230(2826)
8000(3630)	8.01(2.44)	435 amps

Above performance specs are based on first layer of drum

Winch Dimensions: 21.04" L. x 6.3" D. x 7.6" H.
(534mm L. x 160m D. x 193mm H.)

Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)

Skip to the end of the images gallery

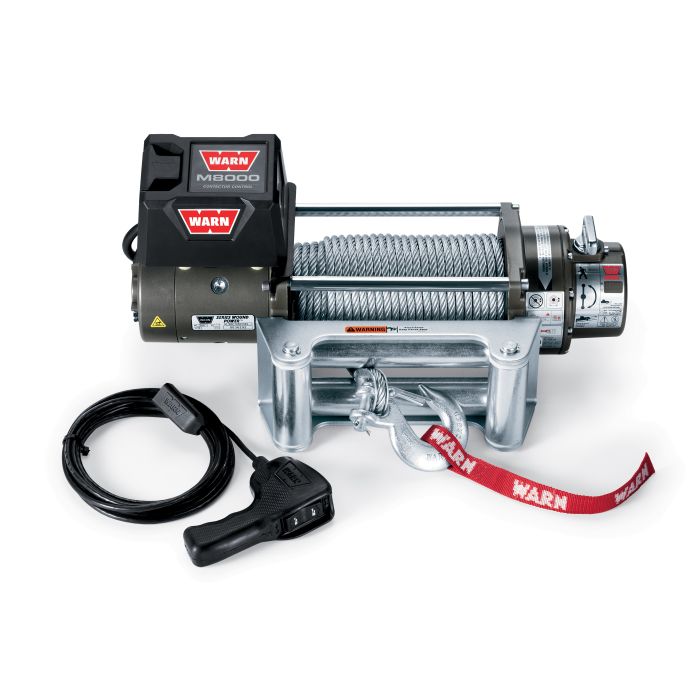

WARN 26502 M8000 Self-Recovery Winch (12V DC) 100' Wire Rope and Roller Fairlead

Skip to the beginning of the images gallery

Details

Compact. Tough. An outstanding value for trucks, sport utility vehicles and Jeeps. The M8000, with its 4.8-hp Series Wound motor and 3-stage planetary geartrain, packs 8,000 lbs. of pulling power to get the job done. Available with 100' of wire rope and roller fairlead. Pulls a fast 8 ft. per minute at rated load.

Wireless Remote Control System can be added which is also available separately.

More Information

More Information
Manufacturers Part Number	26502
Product Name	WINCH WARN M8000 W/ROLLER FAIRLEAD
Dropdown Value 1	WINCH WARN M8000 W/ROLLER FAIRLEAD
Prop 65 Message	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Length	26
Width	18
Depth	8
Weight	83.000000
Hazmat	No
Brand	WARN
Included Parts	100', 5/16" diam. (30m, 8mm diam.) Wire Rope 12V 4.8 hp Series Wound Motor Remote switch, 12' (3.7m) lead Spring- loaded control switches Automatic Direct Drive Cone Brake 3-Stage Planetary with a 216:1 ratio Sliding Ring Gear Clutch for freespooling Contactor Control Box Color-coded 2 gauge, 72" cables and connectors.
Winch Current Draw	435
Winch Intended Usage	Occasional
Winch Max Line Speed	42
Winch Line Length	100
Winch Line Pull	8000
Winch Line Type	Steel Cable
Winch Remote	Wired
Winch Solenoid	Remote
