WINCH CE M8274 24V 150 ROLLER 375832

Be the first to review this product

$2,239.72

In stock

SKU

92102-05

M8274-50 SPECS/PART NUMBERS

Part Numbers: PN 375832 CE (24V DC)

Rated Line Pull: 8000 lbs. (3630 kgs.) single-line

Motor: 24V 2.5 hp/3.43kw, Series Wound™

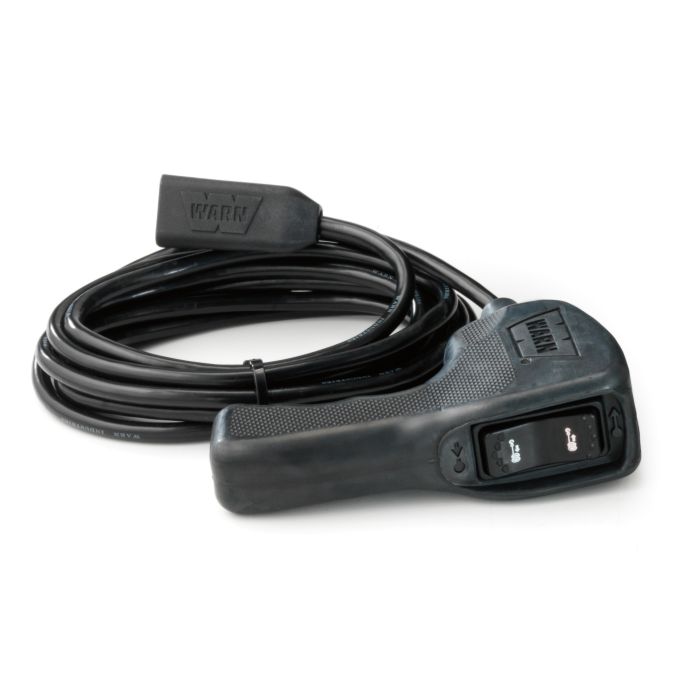

Remote Control: Remote switch, 12' (3.7m) lead

Geartrain: Spur Gear

Gear Ratio: 134:1

Lubrication: 6 oz. SAE 30 (non-detergent)

Clutch (freespooling): Sliding Motor Pinion Gear

Brake: Automatic, disc type

Drum Diameter/Length: 3.5"/8.5" (9cm/22cm)

Weight: 110 lbs. (50 kgs.)

Wire Rope: 150', 5/16" diameter (46m, 8mm diam.)

Fairlead: Roller

Recommended Battery: 650 CCA for winching

Battery Leads: 2 gauge, 72" (1.83m)

Finish: Argent Gray Powder Coat with Clear Coat

Nuts: PN 7616, L/W: PN 2146

Bolts: PN 7165

CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead, safety hook and thimble.

24V DC PERFORMANCE SPECS
Line Pull Lbs.(Kgs.)	Line Speed FT./min(M/min.)	Motor Current	Pull by layer layer/Lbs(Kgs.)
0	65(19.8)	24 amps	1/8000(3629)
2000(910)	23(7.01)	96 amps	2/7460(3384)
4000(1810)	17(5.18)	149 amps	3/6980(3168)
6000(2720)	13(3.96)	203 amps	4/6620(3005)
8000(3630)	7.9(2.41)	273 amps	5/6290(2855)

Above performance specs are based on first layer of drum

Winch Dimensions: 16.5" L. x 8.5" D. x 15" H.
(420mm L. x 220mm D. x 381 mm H.)

Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Loved by off-roaders who compete, it's our fastest winch. No load retrieval speed for the M8274-50 is 73.4 feet per minute and that's not all. At 150 feet of 5/16" cable, it also has a very long line capacity. Its unique spur-gear drive train and upright design are totally rugged. Its braking system delivers smooth operation with superior heat dissipation. Roller fairlead, remote control on 12-ft. lead, free spool clutch and battery cables are included.

Wireless Remote Control System can be added which is also available separately.

More Information

More Information
Manufacturers Part Number	375832
Product Name	WINCH CE M8274 24V 150 ROLLER 375832
Dropdown Value 1	WINCH CE M8274 24V 150 ROLLER
Length	22
Width	17
Depth	12
Weight	125.000000
Hazmat	No
Brand	WARN
Included Parts	150', 5/16" diam. (30m, 8mm diam.) Wire Rope 24V 4.8 hp Series Wound Motor Remote switch, 12' (3.7m) lead Spring- loaded control switches Automatic Direct Drive Cone Brake 3-Stage Planetary with a 216:1 ratio Sliding Ring Gear Clutch for freespooling Weather-shielded solenoids Four Solenoids provide emergency back up Color-coded 2 gauge, 72" cables and connectors.
Winch Current Draw	273
Winch Intended Usage	Frequent
Winch Max Line Speed	65
Winch Line Length	150
Winch Line Pull	8000
Winch Line Type	Steel Cable
Winch Remote	Wired
Winch Solenoid	Integrated
