VIAIR HEAVY DUTY SYSTEM 2.54CFM
$511.75
In stock
SKU
92043-602
400C Tire Inflation Rates |
|
| Begin/End PSI | 31" X 10.5" |
| 0 To 30 PSI | 2 Min. 28 Sec. |
| 15 To 30 PSI | 1 Min. 25 Sec. |
| Begin/End PSI | 33" X 12.5" |
| 0 To 30 PSI | 4 Min. 00 Sec. |
| 15 To 30 PSI | 2 Min. 00 Sec. |
| Begin/End PSI | 35" X 12.5" |
| 0 To 30 PSI | 4 Min. 50 Sec. |
| 15 To 30 PSI | 2 Min. 20 Sec. |
By ordering a single part number, you can take all of the guess-work out of getting all of the parts you'll need to install one of the most sophisticated, all-inclusive onboard air systems available today. The Heavy Duty Onboard Air System comes complete with a super fast 400C, 33% Duty Cycle compressor at its heart that will fill the supplied 2.5 gallon tank from 110-150 PSI in approximately 45 seconds. Included is everything you'll need to add a reliable air source to your vehicle as well as inflate tires with the included clip-on air chuck.
(For vehicles with up to 35-inch tires)
(For vehicles with up to 35-inch tires)
| Dropdown Value 1 | VIAIR HEAVY DUTY SYSTEM 2.54CFM |
|---|---|
| Manufacturers Part Number | 10005 |
| Product Name | VIAIR HEAVY DUTY SYSTEM 2.54CFM |
| Depth | 10 |
| Hazmat | No |
| Length | 26 |
| Weight | 31.000000 |
| Width | 14 |
| Brand | Viair |

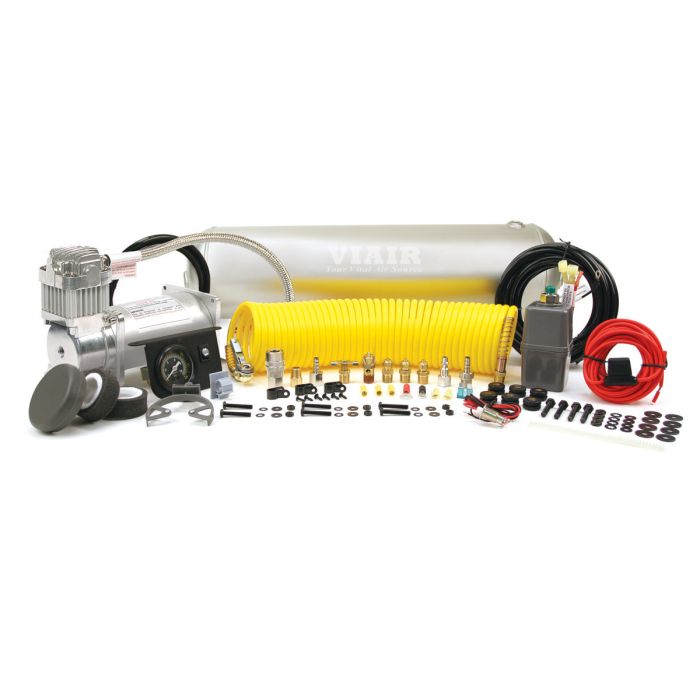

| Included Parts | (1) 2.5 Gallon Viair Air Tank (1) 400C model Viair Air Compressor (1) 35ft. Coil Hose (1) 1/4" Quick Connect Stud (F) (1) 1/4" NPT Quick Connect Coupler (F) (1) Dash Panel Gauge with ON/OFF Switch (1) Pressure Switch with Relay (110 PSI on, 150 PSI off) (1) Reducer (1/8" NPT F to 1/4" NPT M) (1) 1/4" NPT 175 PSI Safety Valve (1) 1/4" Drain Cock (3) 1/4" NPT Compression Fittings (1) 4-inch Strip of Continuous Grommet Material (1) 20ft. 12 Gauge Wire with Inline Fuse Holder |
| Item Returns | This item can be returned |
