VIAIR CONSTANT DUTY SYSTEM 1.66CFM
$532.95
In stock
SKU
92043-600
450C Tire Inflation Rates |
|
| Begin/End PSI | 31" X 10.5" |
| 0 To 30 PSI | 4 Min. 05 Sec. |
| 15 To 30 PSI | 2 Min. 10 Sec. |
| Begin/End PSI | 33" X 12.5" |
| 0 To 30 PSI | 5 Min. 30 Sec. |
| 15 To 30 PSI | 2 Min. 50 Sec. |
| Begin/End PSI | 35" X 12.5" |
| 0 To 30 PSI | 6 Min. 55 Sec. |
| 15 To 30 PSI | 3 Min. 30 Sec. |
By ordering a single part number, you can take all of the guess-work out of getting all of the parts you'll need to install one of the most sophisticated, all-inclusive onboard air systems available today. The Constant Duty Onboard Air System comes complete with a long-running 450C, 100% Duty Cycle compressor at its heart that will fill the supplied 2.5 gallon tank from 110-150 PSI in approximately one minute. Unlike our other systems, the Constant Duty Onboard Air System can operate for longer periods of time without needing to rest. Included is everything you'll need to add a reliable air source to your vehicle as well as inflate tires with the included clip-on air chuck.
(For vehicles with up to 37-inch tires)
(For vehicles with up to 37-inch tires)
| Dropdown Value 1 | VIAIR CONSTANT DUTY SYSTEM 1.66CFM |
|---|---|
| Manufacturers Part Number | 10007 |
| Product Name | VIAIR CONSTANT DUTY SYSTEM 1.66CFM |
| Depth | 10 |
| Hazmat | No |
| Length | 26 |
| Weight | 33.000000 |
| Width | 15 |
| Brand | Viair |

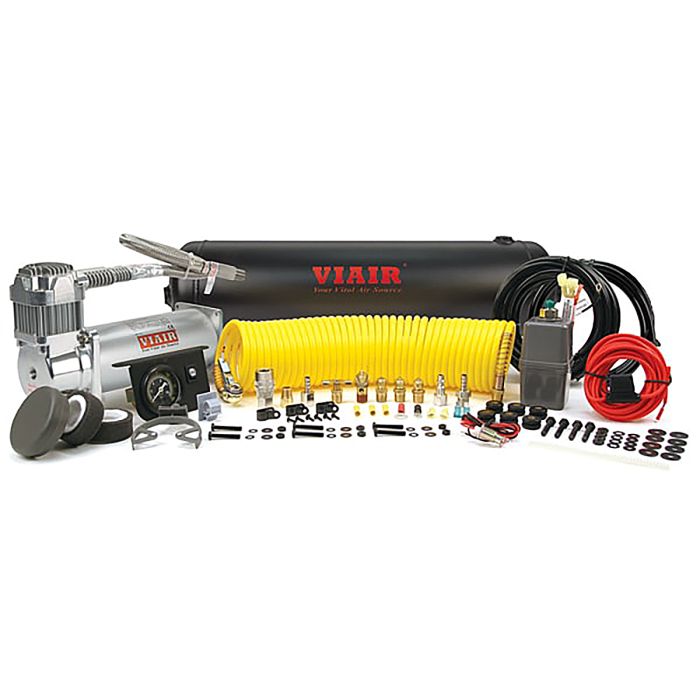

| Included Parts | (1) 2.5 Gallon Viair Air Tank in Black (1) 450C model Viair Air Compressor (1) 35ft. Coil Hose (1) 1/4" Quick Connect Stud (F) (1) 1/4" NPT Quick Connect Coupler (F) (1) Dash Panel Gauge with ON/OFF Switch (1) Pressure Switch with Relay (110 PSI on, 150 PSI off) (1) Reducer (1/8" NPT F to 1/4" NPT M) (1) 1/4" NPT 175 PSI Safety Valve (1) 1/4" Drain Cock (3) 1/4" NPT Compression Fittings (1) 4-inch Strip of Continuous Grommet Material (1) 20ft. 12 Gauge Wire with Inline Fuse Holder |
| Item Returns | This item can be returned |
