VIAIR 200 PSI OBA SYSTEM 23 AMP
$719.50
In stock
SKU
92043-0110
SPECIFICATIONS
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 200 PSI
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 5.0 Gallon
- Combined Max. Amp Draw: 23 Amps
- Ingress Protection Rating: IP67
- Dimensions: 10.63″L x 4.1″W x 6.44″H
- Net Weight: 11.10 lbs.
The Viair Continuous Duty On-Board Air System handles everything a Jeep owner needs off-road. The system includes a 12v compressor that fills up the 2.5 gallon tank in about 5 minutes (from empty). The holding tank has 6 ports allowing the system to handle multiple task simultaneously. Operate axle lockers, inflate tires and even the air tools. A dash mounted gauge monitors the systems pressure and a convenient switch locates the power at your fingertips without having to leave the driver seat. A complete installation kit is included to mount both tank and compressor as well as all electrical connectors, tire gauge and air lines.
| Manufacturers Part Number | 20002 |
|---|---|
| Product Name | VIAIR 200 PSI OBA SYSTEM 23 AMP |
| Depth | 10 |
| Hazmat | No |
| Length | 26 |
| Weight | 34.000000 |
| Width | 14 |
| Prop 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Brand | Viair |
| Color | Black |
| Features | 12 Volt |

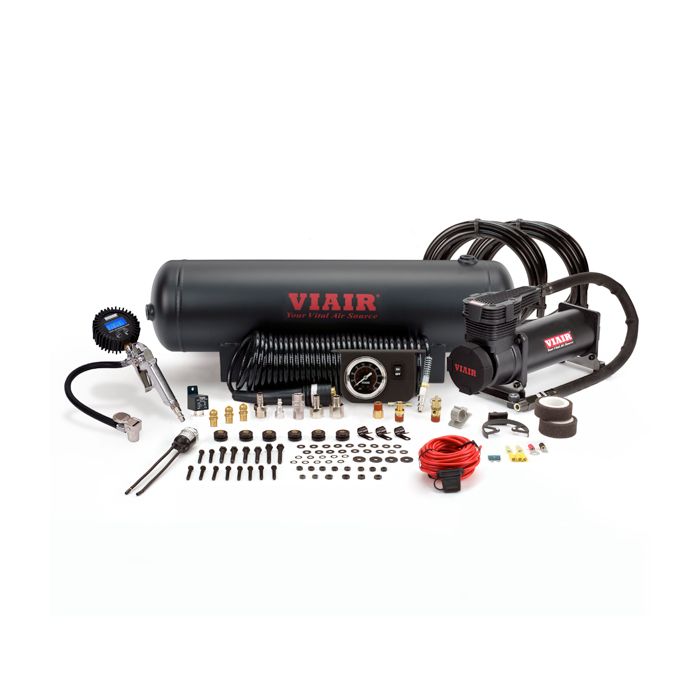

| Included Parts | 1 2.5 Gallon, 200 PSI-rated 6 port VIAIR Air Tank 1 485C model VIAIR compressor 1 36-ft. Length of 1/4” Air Line (for accessory and gauge installation) 1 30-foot Coil Accessory Hose 1 Digital Tire Inflation Gun with 180 PSI gauge 1 Sealed Pressure Switch 1 Reducer (1/8” NPT F to 1/4” NPT M) 1 40 Amp Relay 1 Remote Mount Air Filter Assembly w/ Filter Cover 2 Compressor and Air Filters 1 Leader Hose Bracket Clip 1 Air Line for Remote Mounting Air Filter 1 4-inch Strip of continuous Grommet Material 1 Reducer – compressor-to-tank connection 1 (3/8” NPT F to 1/4” NPT M) 1 Fuse Holder & 20 ft. 12 Gauge Wire Installation Hardware |
| Item Returns | This item can be returned |
