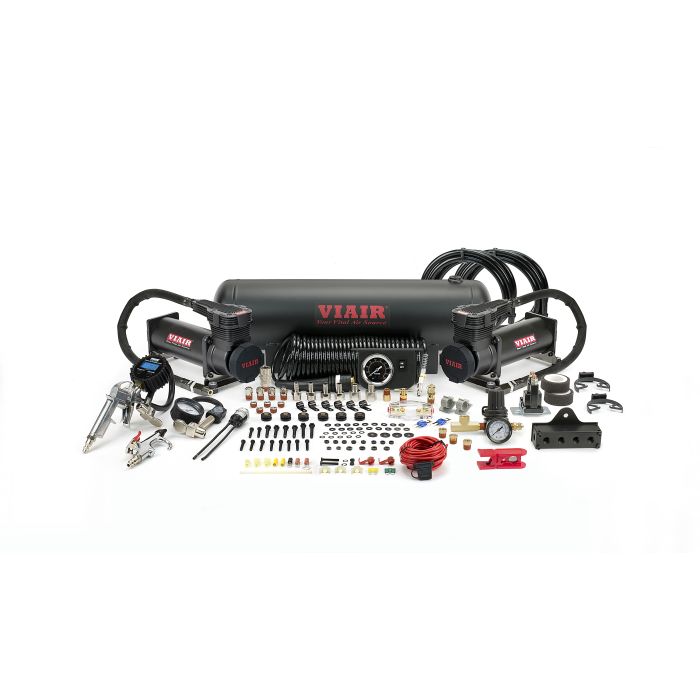

Viair Dual Stealth Black 485C Onboard Air System
Viair’s Dual 485C Gen 2 Onboard Air System has you covered for all of your Jeep's air source needs. Whenever you hit the trail, rest assured that you have the very best onboard air system for your tires, lockers, air horn, air-powered tools, or any other pneumatic applications.
This system comes with two compressors providing a 100% duty cycle at 200 PSI along with its 2.5-gallon air tank. This second-generation onboard air system has upgraded internal components making it a true 200 PSI-rated working pressure pump for all of your airing needs. Comes in your choice of platinum or stealth black.
Specifications:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 200 PSI
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 10.0 Gallons
- Ingress Protection Rating: IP67
- Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit)
- Net Weight: 22.10lbs
485C Tire Inflation Rates |
|
| Begin/End PSI | 37" X 12.5" |
| 0 To 30 PSI | 3 Min. 46 Sec. |
| 15 To 30 PSI | 1 Min. 52 Sec. |
| Begin/End PSI | 40" X 15.5" |
| 0 To 30 PSI | 4 Min. 39 Sec. |
| 15 To 30 PSI | 2 Min. 02 Sec. |
All-in-One Solution: This Dual Onboard Air System is a full and powerful, pre-packaged compressed air solution capable of tire inflation and air locker actuation.
Multiple Mounting Locations: VIAIR’s Escapade can be placed in numerous locations to ensure you always have the air you need thanks to its dual compressor and 2.5-gallon air tank.
Complete Kit: Available in Platinum or Stealth Black, this system comes with everything needed to mount and use right away.
| Dropdown Value 1 | Stealth Black |
|---|---|
| Manufacturers Part Number | 20185 |
| Product Name | Viair Dual Stealth Black 485C Onboard Air System |
| Depth | 11 |
| Hazmat | No |
| Length | 27 |
| Weight | 56.000000 |
| Width | 23 |
| Prop 65 Message | This product can expose you to chemicals including chromium (hexavalent compounds), which are kwn to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
| Brand | Viair |
| Item Returns | This item can be returned |
