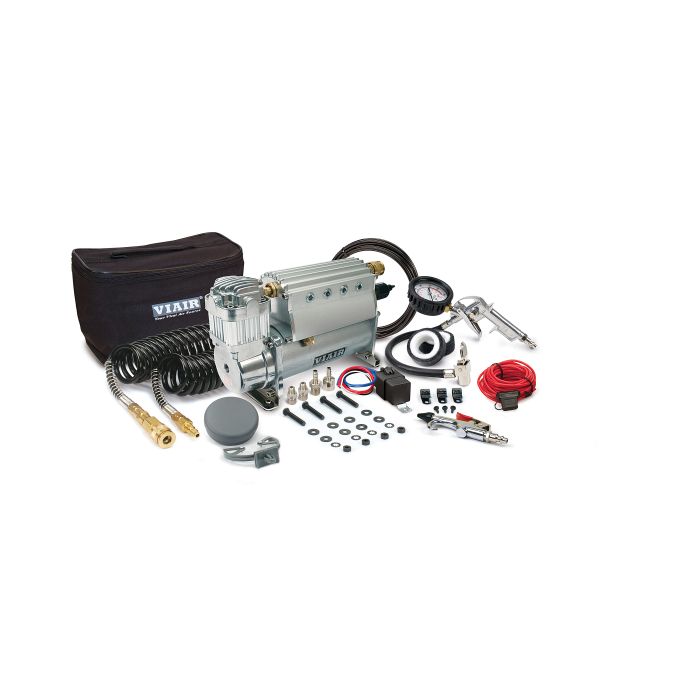

Viair Escapade Constant-Duty Ultra Compact OBA
When searching for a great solution to your Jeep's onboard air needs, Viair's Escapade Constant Duty Compact 450C Onboard Air System comes up in a big way. Don't let its compact looks fool you, this system features an industry-leading 150 PSI rated 100% duty 450C compressor along with all the components necessary for you to install a working system capable of tire inflation and air locker actuation— all to help you conquer any off-road situation.
Specifications:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Amp Draw: 23-Amps
- Ingress Protection Rating: IP67
- Dimensions: 9.38″L x 4″W x 6.75″H
- Net Weight: 12.5 lbs
450C Tire Inflation Rates |
|
| Begin/End PSI | 31" X 10.5" |
| 0 To 30 PSI | 4 Min. 05 Sec. |
| 15 To 30 PSI | 2 Min. 10 Sec. |
| Begin/End PSI | 33" X 12.5" |
| 0 To 30 PSI | 5 Min. 30 Sec. |
| 15 To 30 PSI | 2 Min. 50 Sec. |
| Begin/End PSI | 35" X 12.5" |
| 0 To 30 PSI | 6 Min. 55 Sec. |
| 15 To 30 PSI | 3 Min. 30 Sec. |
| Begin/End PSI | 37" X 12.5" |
| 0 To 30 PSI | 7 Min. 56 Sec. |
| 15 To 30 PSI | 4 Min. 09 Sec. |
All-in-One Solution: This onboard air system is a compact, pre-packaged compressed air solution with enough power to tire inflation and air locker actuation.
Mountable: VIAIR’s Escapade can be placed in multiple locations to ensure you always have the air you need.
Complete Kit: System comes with everything to mount and use right away.
| Manufacturers Part Number | 50003 |
|---|---|
| Product Name | Viair Escapade Constant-Duty Ultra Compact OBA |
| Depth | 10 |
| Hazmat | No |
| Length | 15 |
| Weight | 20.000000 |
| Width | 12 |
| Prop 65 Message | Prop 65 warning WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. |
| Brand | Viair |
| Item Returns | This item can be returned |
