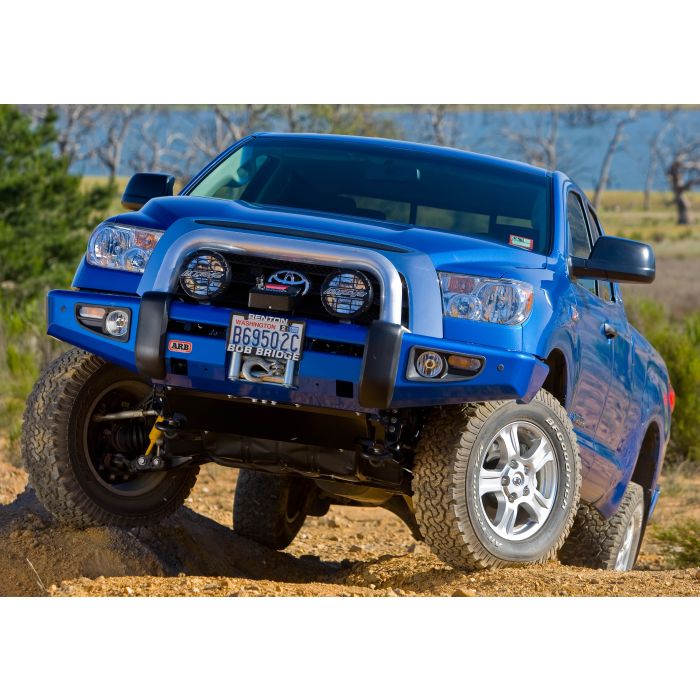

ARB FRONT SAHARA BAR 07-10 TOY TUN/SEQU
$1,796.00
In stock
SKU
72900-8303
Need more lighting? Optional fog lights can be installed into this bumper for even greater lighting
performance. Don't plan to install a winch? A color matched included plate can be optioned to cover the winch opening.
The new model Tundra features a design where the grill is attached to the hood instead of the body, so ARB Engineers were confronted with the challenge of producing a bar which offered high levels of protection, while conveniently allowing the hood to be opened. This required additional clearance between the grill and the polished center tube which would result in the bumper sitting further forward, reducing the approach angle. To overcome this, the center tube is uniquely engineered to pivot forward, by simply pulling the release lever located beside the passenger side rubber buffer, allowing sufficient clearance to raise the hood, without compromising impact strength or appearance.
Constructed from premium sheet steel with a tapered wing design, this bar has been crafted for optimum strength and an improved approach angle. ARB's unique airbag compatible mounting system ensures both occupant and vehicle safety. A hard-wearing Millennium Gray powder coat finish completes the look of this stylish new bar. As with all ARB Sahara Bars, the utmost attention to detail has resulted in a variety of built-in features including recessed indicators, optional recessed fog lamps, Warn Winch compatibility, Hi-Lift jacking points, driving light provisions and twin CB antenna mounting positions.
Other Key Features:
5115030 (1): 90mm Polished Center Tube.
5100140 (1): Buffer Kit with Holes (Use when fitting chrome tube).
5100150 (1): Buffer Kit Without Holes (Use when not fitting chrome tube).
6821201 (2): ARB Fog Light Kit.
MD02 (3): Modular Driving Light Loom.
180209 & 180215 (3): Switch Base and Cap.
(1). Installation requires part # 5100140 & 5115030 when fitting optional chrome center tube. If not fitting optional chrome tube, buffer kit part # 5100150 required to complete installation.
(2). ARB fog light kit includes lights, connectors and fasteners, but does not include a wiring loom and switch. For vehicles without factory fog lights, MD02, 180209 and 180215 are required.
(3). Required for models without factory fitted fog lights.
The new model Tundra features a design where the grill is attached to the hood instead of the body, so ARB Engineers were confronted with the challenge of producing a bar which offered high levels of protection, while conveniently allowing the hood to be opened. This required additional clearance between the grill and the polished center tube which would result in the bumper sitting further forward, reducing the approach angle. To overcome this, the center tube is uniquely engineered to pivot forward, by simply pulling the release lever located beside the passenger side rubber buffer, allowing sufficient clearance to raise the hood, without compromising impact strength or appearance.
Constructed from premium sheet steel with a tapered wing design, this bar has been crafted for optimum strength and an improved approach angle. ARB's unique airbag compatible mounting system ensures both occupant and vehicle safety. A hard-wearing Millennium Gray powder coat finish completes the look of this stylish new bar. As with all ARB Sahara Bars, the utmost attention to detail has resulted in a variety of built-in features including recessed indicators, optional recessed fog lamps, Warn Winch compatibility, Hi-Lift jacking points, driving light provisions and twin CB antenna mounting positions.
Other Key Features:
- Optional 90mm polished aluminum center tube for added protection.
- Suitable for Warn M8000, M9000, XP9500, M12000, M15000 low mount electric winches.
- Suits up to IPF 930 Series round driving lights
- OEM Recovery points re-used.
- Cover panel supplied for use when no winch is installed.
- Comprehensive fitting instructions provided to allow reinstallation of OEM parking sensors (where fitted)
Required & Optional Accessories
3915030 (1): 07+ Toyota Tundra & Sequoia Sahara Bar. (Shown)5115030 (1): 90mm Polished Center Tube.
5100140 (1): Buffer Kit with Holes (Use when fitting chrome tube).
5100150 (1): Buffer Kit Without Holes (Use when not fitting chrome tube).
6821201 (2): ARB Fog Light Kit.
MD02 (3): Modular Driving Light Loom.
180209 & 180215 (3): Switch Base and Cap.
(1). Installation requires part # 5100140 & 5115030 when fitting optional chrome center tube. If not fitting optional chrome tube, buffer kit part # 5100150 required to complete installation.
(2). ARB fog light kit includes lights, connectors and fasteners, but does not include a wiring loom and switch. For vehicles without factory fog lights, MD02, 180209 and 180215 are required.
(3). Required for models without factory fitted fog lights.
Considering ARB's twenty-year history manufacturing both original equipment and aftermarket
accessories for vehicles around the world, you can be sure to expect a customized mounting system and
a sleek, yet functional Sahara Bar designed specifically to enhance the look and operation of your Tundra
or Sequoia. This year ARB has gone even further by developing the first modular design Sahara bar in ARB
history. To meet the demands of versatility, ARB is offering this bar in pieces so the customer can decide
whether or not they would like to have just the lower section of the bumper that replaces the original or
they can choose to install the chrome hoop top bar for even greater protection and styling.
| Manufacturers Part Number | 3915030 |
|---|---|
| Wheel Tire Builder | No |
| White Letter Available | No |
| Product Name | ARB FRONT SAHARA BAR 07-10 TOY TUN/SEQU |
| Hazmat | No |
| Length | 83 |
| Width | 34 |
| Depth | 15 |
| Weight | 151.000000 |
| Brand | ARB |
| Included Parts | Sahara Bar |
| Item Returns | This item can be returned |
