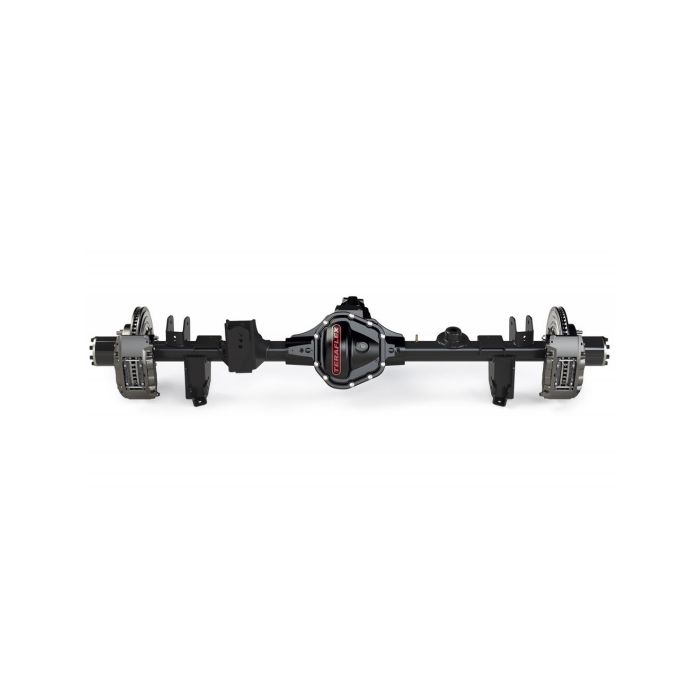

JL: 70” CRD60 HD Rear Axle w/ Semi-Float – (0–6" Lift) - 4.88
CRD60 Wide Axle Housing Specifications:
- Axle Diameter - 3.25" O.D. x 0.375" wall DOM axle tube for superior strength vs. weight
- Bolt Pattern -70" WMS-WMS and 8x6.5" wheel bolt pattern
- Proper Pinion Angle and Raised Track Bar Bracket- for lifted JL Applications
- Lift Height - 0 to 6 inches
- Pinion Yoke - 1350 series
- Axle Spline - 35 spline inner & outer
- Oversized outer pinion bearing handles increased torque and high-load conditions
- Reinforced Rear Track Bar Mount-Includes multiple mounting locations
- High-Capacity Housing- Holds maximum amount of oil
- Made in the USA
Heavy-Duty CRD60 Housing: Built to withstand extreme off-road conditions, the CRD60 housing offers superior strength and rigidity. The 3.5" axle tubes are crafted from high-quality steel to reduce flex under load, helping to protect vital components and extend axle life.
Full-Float Design: The full-float construction distributes the weight to the axle housing rather than the axle shafts, enhancing the vehicle’s load capacity and ensuring even weight distribution across the wheels. This design provides a higher degree of stability and makes wheel removal much easier for maintenance.
70" Wide Track: With a 70" wide track, this rear axle provides enhanced stability and increased traction on and off the road. The wider stance improves handling, especially during cornering or when navigating tough off-road trails.
Performance-Driven Gear Ratio: Optimized for Jeeps with up to a 6" lift, the CRD60 axle enables a balanced gear ratio that supports larger tires, maximizing traction and delivering smooth, controlled power for all terrains.
| Manufacturers Part Number | 3320488 |
|---|---|
| Product Name | JL: 70” CRD60 HD Rear Axle w/ Semi-Float – (0–6" Lift) - 4.88 |
| Dropdown Value 1 | 4.88 Gear Ratio |
| Prop 65 Message | This product can expose you to chemicals including chromium (hexavalent compounds), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
| Length | 81 |
| Width | 25 |
| Depth | 24 |
| Weight | 500.000000 |
| Hazmat | No |
| Axle Model | CRD60 |
| Axle Position | Rear |
| Brand | Teraflex |
| Features | 4.88 Ratio |
| Item Returns | This item can be returned |
