52447-1601-T
$2,620.99
In stock
SKU
52447-1601-T
- Forged Heavy Duty Inner Knuckles with greater upper and lower section strength
- 1/4" Thick CNC laser cut axle brackets for extreme strength
- Reinforced front trackbar mount (ties into spring pad) for greater strength
- Integrated lower FlexArm skid plates
- Pre-tapped hole on spring perch for bump stop extensions
- Pre-drilled holes for limit straps and lower spring retainers
- Heavy duty ductile iron differential cover
- Axles Seals pre-installed
- Pre-installed upper control arm bushings
- Retains all JK ESP, ABS & Speedometer sensor capability
- Proper pinion angle for lifted JK applications
- Premium UV protected triple-stage powder coat process for superior corrosion resistance
- Ductile cast iron housing with increased rib gussets
- Smooth radius bottom design to glide over rocks & obstacles
- Asymmetric housing design, for extra long tube side strength
- Bottom oil drain hole for simple fluid changes
- Integrated factory location upper control arm mount
- 3.25" x 0.25" axle tube increases strength to resist bending and torsion with minimal weight increase (6.7lbs more than factory tubes, 8.9lbs less than sleeved axle tubes)
- 100% engineered, designed, and built in the USA
- 100% new components
- No Excuses warranty - 1 year, unlimited mileage

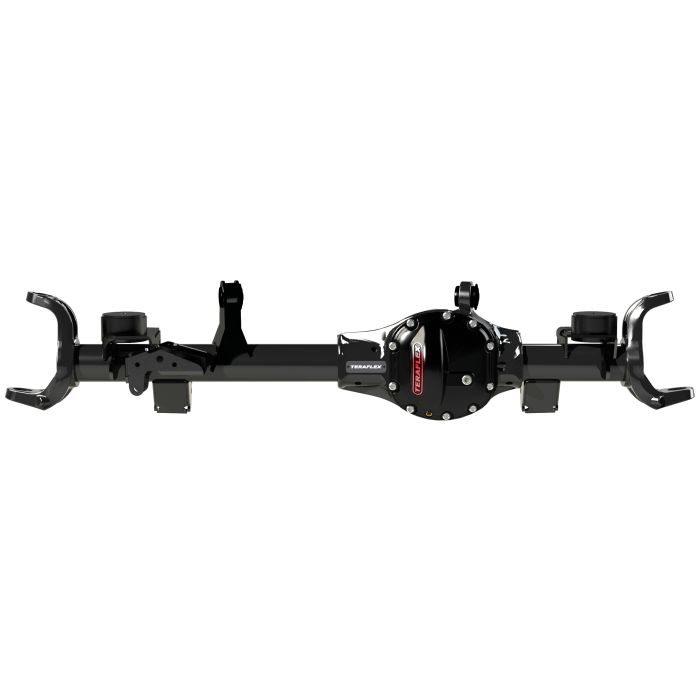

TeraFlex JK Heavy Duty Replacement Axles are the perfect solution for bent, broken or damaged front axles in JK Wrangler and Rubicon vehicles. The Tera30 offer a direct bolt-in upgrade for Jeep JK owners looking to beef up the weak areas of their front axle. These axles have been engineered for extreme use and feature 3.25" OD x .25" wall DOM tubing for superior strength. Forged inner knuckles increase section strength to eliminate ball joint separation. The replacement housing includes a heavy duty housing, tubes, axle bracketry, and forged inner knuckles. Pre-installed inner seals and upper control arm bushings make the upgrade seamless. Simply transfer your existing internal components, outer knuckle assembly, and brakes to the new housing!
| Manufacturers Part Number | 3503004 |
|---|---|
| Product Name | 52447-1601-T |
| Dropdown Value 1 | 4" & Up with Raised Track Bar Bracket |
| Prop 65 Message | This product can expose you to chemicals including chromium (hexavalent compounds), which are kwn to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
| Length | 61 |
| Width | 23 |
| Depth | 20 |
| Weight | 196.000000 |
| Hazmat | No |
| Brand | Teraflex |
| Color | Black |
| Included Parts | Axle Housing Locker, Ring & Pinion are Not Included. |
| Item Returns | This item can be returned |
