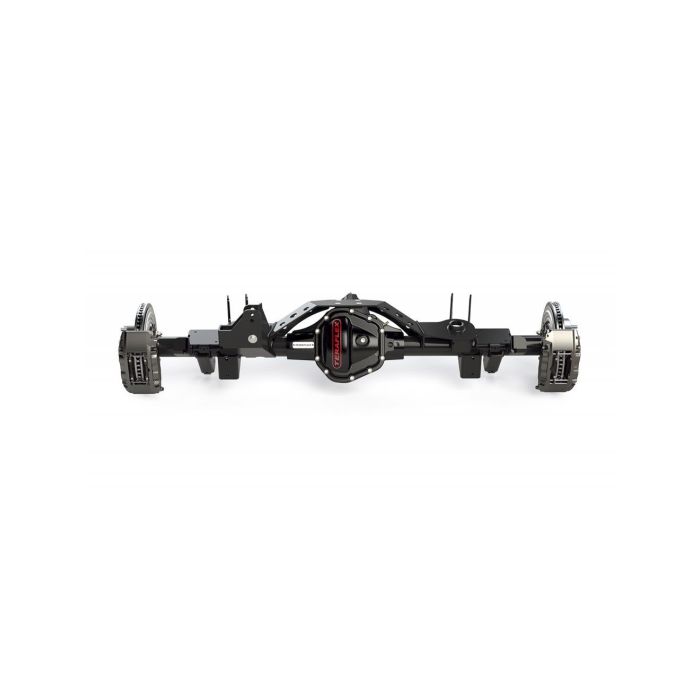

JT: 68” CRD60 HD Rear Axle w/ Semi-Float & 4.30 R&P & ARB Locker (0–6" Lift)

The TeraFlex Rear CRD60 Semi-Float Axle Assembly is a direct bolt-on upgrade for Jeep Gladiator JT owners looking to replace weakened, strained, or damaged Rear axles in Gladiator JT's. The heavy-duty TeraFlex Rear CRD60 Semi-Float Axle Housing provides maximum protection, performance, and durability, while the exclusive Constant Radius Design (CRD) provides high ground clearance that is unaffected by pinion angle adjustments. The CRD60 Semi-float axle design is constructed to conquer the utmost Off-Road conditions. The CRD60 Axle has features including heavy-duty housing with heavy-duty axle tubes and bearing caps, high-flow oil passages, bracketry, seamless lines, and increased cover mounting area. Pre-installed seals and upper control arm bushings make the upgrade perfectly consistent. This CRD60 Axle is Compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring and pinion strength.

CRD60 Axle Assembly Specifications:

• Axle Diameter - 3.25" OD
• Axle Tube Thickness - .375" wall
• Bolt Pattern - 5x5" (factory pattern)
• Axle Width - 68" or 70"
• High Pinion - Factory-style semi-float design
• Lift Height - 0 to 6 inches
• Spicer bearings & install kits
• Pinion Yoke - 1350 series
• Axle Spline - 35 spline inner & outer
• High-capacity Hosing: Holds maximum amount of oil
• Made in the USA
