TERA 60 FR FLOAT HUB EMPTY 8X6.5 TJ
$8,596.99
In stock
SKU
52447-1144
Tera60 Wide Axle Housing Specifications:
- Axle Diameter - 3.25" OD
- Axle Tube Thickness - .375" wall
- Bolt Pattern - 8x6.5"
- Axle Width - 67" (extra wide)
- Lift Height - 0 to 6 inches
- Pinion Yoke - 1350 series
- Axle Spline - 35 spline inner & outer
- Brakes - Big Rotor Kit w/ 13.3” rotors
- Locking Hub Assembly (sealed)
- Shipping Dims - 78" x 25" x 24"
- Shipping Weight - 667 lbs
- Made in the USA

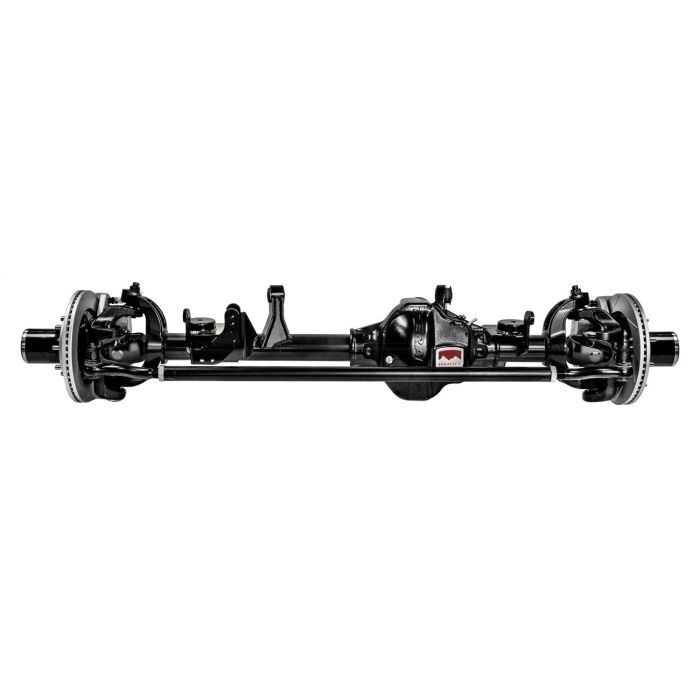

The TeraFlex Front Wide Tera60 Full-Float Axle Housing Assembly with Locking Hubs & 8x6.5 Bolt Pattern for TJ Wrangler & Unlimited with 0-6" Lift is a direct bolt-on upgrade for TJ Wrangler owners looking to replace weakened, strained, or damaged front axles in TJ Wrangler and Unlimited vehicles. By integrating the driver side upper control arm mount into the housing assembly, the Tera60 Assembly has gained an additional 2” of maximum up travel and suspension compression. The Tera60 is equipped with high-quality extreme-duty components such as heavy-duty axle tubes, bearing caps, forged inner knuckles, high-flow oil passages, bracketry, seamless lines, and increased cover mounting area. The Full-float axle design with sealed locking hub assemblies and 8x6.5” wheel bolt pattern is constructed to conquer the utmost Off-Road conditions. Pre-installed inner seals and upper control arm bushings make the upgrade perfectly consistent. This Teraflex Tera60 Axle Assembly is compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring and pinion strength.
Please Note:
*** Carrier/Locker, Ring & Pinion and Bearings are NOT included in this package.
*** This axle assembly requires a new driveshaft or driveshaft modification.
*** The bolt pattern is 8x6.5 which is different from the factory original 5x4.5 bolt pattern. New wheels will be required.
| Manufacturers Part Number | 3870000 |
|---|---|
| Product Name | TERA 60 FR FLOAT HUB EMPTY 8X6.5 TJ |
| Prop 65 Message | This product can expose you to chemicals including chromium (hexavalent compounds), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
| Length | 78 |
| Width | 25 |
| Depth | 24 |
| Weight | 667.000000 |
| Hazmat | No |
| Axle Model | Tera60 |
| Axle Position | Front |
| Brand | Teraflex |
| Color | Black |
| Features | With Brakes, With Differential Cover, With Steering Knuckles, With Unit Bearings |
| Included Parts | Axle Housing |
| Item Returns | This item can be returned |
