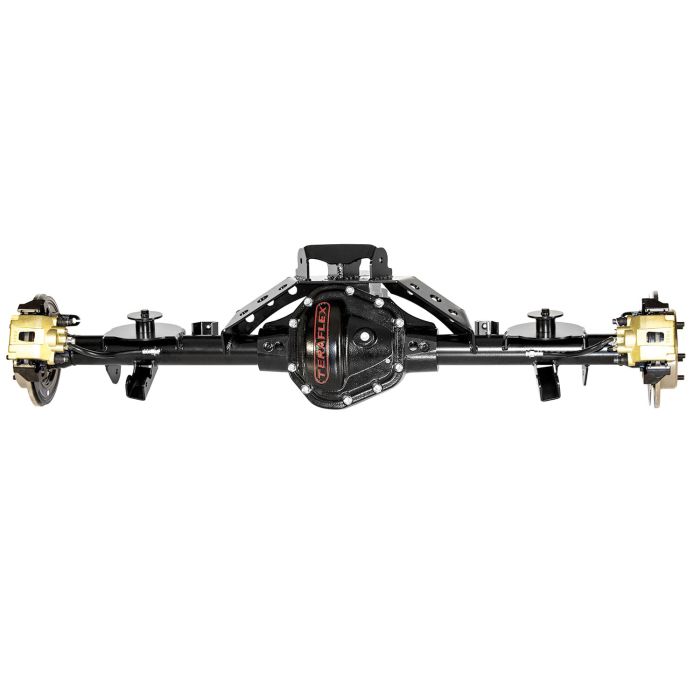

TERA CRD60 RR SFLCG EMPTY 5X5.5 TJ
CRD60 w/Truss Axle Housing Specifications:
- Axle Diameter - 3.25" OD
- Axle Tube Thickness - .375" wall
- Bolt Pattern - 5x5.5"
- Axle Width - 63.5" (factory width)
- High Pinion - Factory-style semi-float design
- Lift Height - 0 to 6 inches
- Pinion Yoke - 1350 series
- Axle Spline - 35 spline inner & outer
- Brakes - Big Rotor Kit w/ 13.5” rotors
- High-capacity housing - Holds 3 quarts of oil
- Shipping Dims - 78" x 25" x 24"
- Shipping Weight - 459 lbs
- Made in the USA
Pro LCG 4-Link Axle Truss: Engineered from CNC laser cut 1/4" steel, precision bent and stitch welded for ultimate strength. Designed to work with the Teraflex Pro LCG suspension system that has a 4-link triangulation. This system eliminates the need for a rear track bar. The rear upper truss bracket features adjustable anti-squat tuning for your suspension. Giving ultimate rock crawling articulation and high speed off-road agility.
Please Note:
*** Carrier/Locker, Ring & Pinion and Bearings are NOT included in this package.
*** This axle assembly requires a new driveshaft or driveshaft modification.
*** The bolt pattern is 5x5.5 which is different from the factory original 5x4.5 bolt pattern. New wheels will be required.
| Manufacturers Part Number | 3320100 |
|---|---|
| Product Name | TERA CRD60 RR SFLCG EMPTY 5X5.5 TJ |
| Prop 65 Message | This product can expose you to chemicals including chromium (hexavalent compounds), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
| Length | 78 |
| Width | 25 |
| Depth | 24 |
| Weight | 459.000000 |
| Hazmat | No |
| Axle Model | CRD60 |
| Axle Position | Rear |
| Brand | Teraflex |
| Color | Black |
| Included Parts | Axle Housing |
| Item Returns | This item can be returned |
