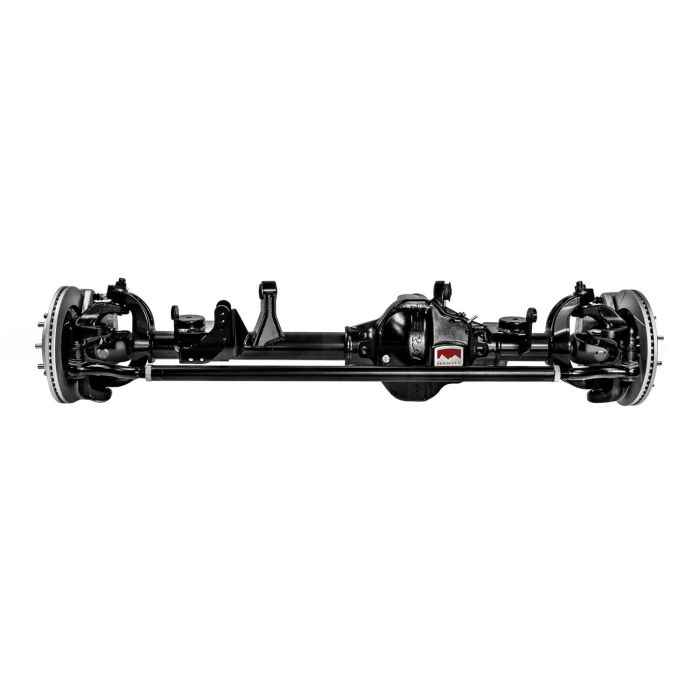

TERA 60 FR AXLE UNIBEAR EMPTY 5X5.5 TJ

The TeraFlex Front Tera60 Unit Bearing Axle Housing Assembly with 5x5.5 Bolt Pattern for TJ Wrangler & Unlimited with 0-6" Lift is a direct bolt-on upgrade for TJ Wrangler owners looking to replace weakened, strained, or damaged front axles in TJ Wrangler and Unlimited vehicles. By integrating the driver side upper control arm mount into the housing assembly, the Tera60 Assembly has gained an additional 2” of maximum up travel and suspension compression. The Tera60 is equipped with high-quality extreme-duty components such as heavy-duty axle tubes, bearing caps, forged inner knuckles, high-flow oil passages, bracketry, seamless lines, and increased cover mounting area. The Unit Bearing axle Housing design with 5.5.5” wheel bolt pattern is constructed to conquer the utmost Off-Road conditions. Pre-installed inner seals and upper control arm bushings make the upgrade perfectly consistent. This Teraflex Tera60 Axle Assembly is compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring and pinion strength.

Please Note:

*** Carrier/Locker, Ring & Pinion and Bearings are NOT included in this package.

*** This axle assembly requires a new driveshaft or driveshaft modification.

*** The bolt pattern is 5x5.5 which is different from the factory original 5x4.5 bolt pattern. New wheels will be required.

The TeraFlex Front Tera60 Unit Bearing Axle Housing Assembly with 5x5.5 Bolt Pattern for TJ Wrangler & Unlimited with 0-6" Lift is the perfect Replacement Axle Housing for replacing bent, broken, or damaged front axles in TJ Wrangler and Unlimited vehicles. This Teraflex Tera60 is the ultimate upgrade for the TJ Wrangler requiring maximum up travel and suspension compression. By integrating the driver side upper control arm mount into the housing assembly, The Tera60 Assembly has gained an additional 2” of up travel compared to other aftermarket Dana 60 Series replacement axle housings. The Tera60 is equipped with high-quality extreme-duty components which include a heavy-duty housing with heavy-duty axle tubes and bearing caps, forged inner knuckles, high-flow oil passages, bracketry, smooth profile surfaces, and increased cover mounting area. Pre-installed inner seals and upper control arm bushings make the upgrade seamless. This Teraflex Tera60 Axle Assembly is compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring and pinion strength.

Please Note:

*** Carrier/Locker, Ring & Pinion and Bearings are NOT included in this package.

*** This axle assembly requires a new driveshaft or driveshaft modification.

*** The bolt pattern is 5x5.5 which is different from the factory original 5x4.5 bolt pattern. New wheels will be required.
