TERA CRD60 RR WIDEFLOAT EMPTY 8X6.5 JK
$5,412.99
In stock
SKU
52447-1122
CRD60 Wide Axle Housing Specifications:
- Axle Diameter - 3.25" OD
- Axle Tube Thickness - .375" wall
- Bolt Pattern - 8x6.5"
- Axle Width - 70" (extra wide)
- Lift Height - 0 to 6 inches
- Pinion Yoke - 1350 series
- Axle Spline - 35 spline inner & outer
- Brakes - Big Rotor Kit w/ 13.5” rotors
- Shipping Dims - 73" x 24" x 21"
- Shipping Weight - 450 lbs
- Made in the USA

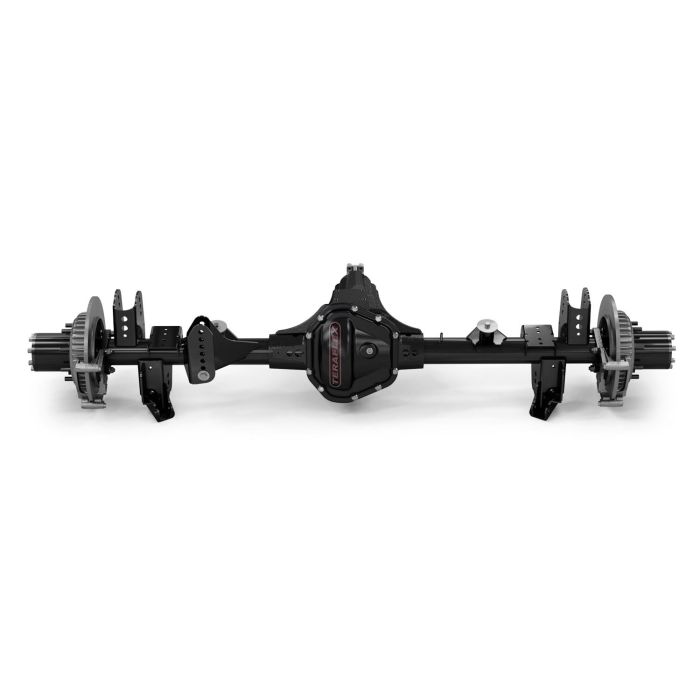

The TeraFlex Rear Wide CRD60 Full-Float Axle Housing with 8x6.5 Bolt Pattern is a direct bolt-on upgrade for JK Wrangler owners looking to replacing weakened, strained, or damaged stock rear axle in JK Wrangler and Rubicon vehicles. The heavy-duty TeraFlex JK Wide Rear CRD60 Full-Float Axle Housing provides maximum protection, performance, and durability for the JK Wrangler, while the exclusive Constant Radius Design (CRD) provides high ground clearance that is unaffected by pinion angle adjustments. The CRD60 Full-float axle design and 8x6.5” wheel bolt pattern is constructed to conquer the utmost Off-Road conditions. The CRD60 Axle is equipped with features that include a heavy-duty housing with heavy-duty axle tubes and bearing caps, high-flow oil passages, bracketry, seamless lines, and increased cover mounting area. Pre-installed seals and upper control arm bushings make the upgrade perfectly consistent. This CRD60 Axle is Compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring and pinion strength.
Please Note:
*** Carrier/Locker, Ring & Pinion and Bearings are NOT included in this package.
*** This axle assembly requires a new driveshaft or driveshaft modification.
*** The bolt pattern is 8x6.5 which is different from the factory original 5x5 bolt pattern. New wheels will be required.
| Manufacturers Part Number | 34700004 |
|---|---|
| Product Name | TERA CRD60 RR WIDEFLOAT EMPTY 8X6.5 JK |
| Prop 65 Message | This product can expose you to chemicals including chromium (hexavalent compounds), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
| Length | 73 |
| Width | 24 |
| Depth | 21 |
| Weight | 450.000000 |
| Hazmat | No |
| Axle Model | CRD60 |
| Axle Position | Rear |
| Brand | Teraflex |
| Color | Black |
| Features | With Brakes, With Differential Cover |
| Included Parts | Axle Housing |
| Item Returns | This item can be returned |
