TERA CRD60 FR FLOAT 4.30 ARB 8X6.5 JK
$11,189.99
In stock
SKU
52447-1118
Tera60 Wide Axle Assembly Specifications:
- Axle Diameter - 3.25" OD
- Axle Tube Thickness - .375" wall
- Bolt Pattern - 8x6.5"
- Axle Width - 70" (extra wide)
- Lift Height - 0 to 6 inches
- Locker - ARB Super 60
- Spicer bearings & install kits
- Pinion Yoke - 1350 series
- Axle Spline - 35 spline inner & outer
- Brakes - Big Rotor Kit w/ 13.3” rotors
- Steering - HD Complete Wide Steering Kit w/ Flipped Drag Link
- Locking Hub Assembly (sealed)
- Integrated lower control arm skid plates
- Shipping Dims - 70" x 30" x 24"
- Shipping Weight - 440 lbs
- Made in the USA

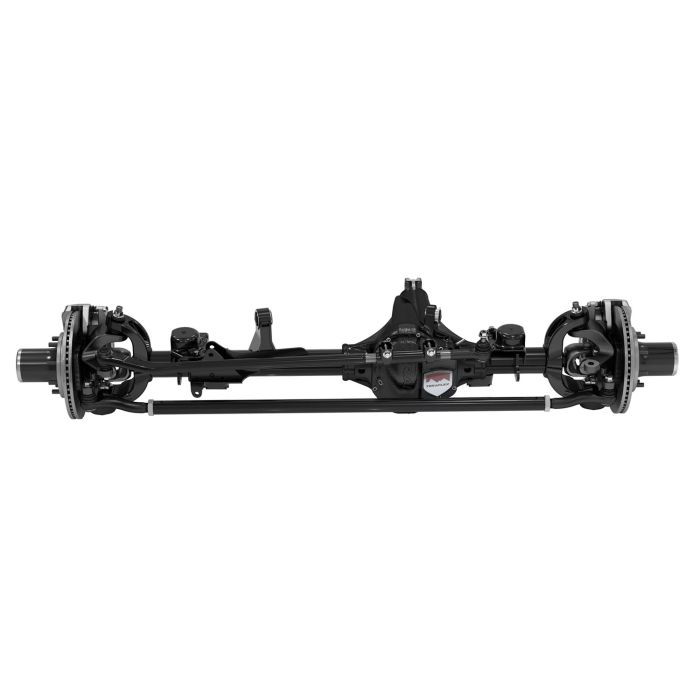

The TeraFlex Front Wide Tera60 Full-Float Axle Housing Assembly with ARB Locker, Locking Hubs & 8x6.5 Bolt Pattern for JK Wrangler & Unlimited with 0-6" Lift is a direct bolt-on upgrade for JK Wrangler owners looking to replace weakened, strained, or damaged front axles in JK Wrangler and Unlimited vehicles. By integrating the driver side upper control arm mount into the housing assembly, the Tera60 Assembly has gained an additional 2” of maximum up travel and suspension compression. The Tera60 is equipped with high-quality extreme-duty components such as heavy-duty axle tubes, bearing caps, forged inner knuckles, high-flow oil passages, bracketry, seamless lines, and increased cover mounting area. The Full-float axle design with ARB Locker,sealed locking hub assemblies and 8x6.5” wheel bolt pattern is constructed to conquer the utmost Off-Road conditions. Pre-installed inner seals and upper control arm bushings make the upgrade perfectly consistent. This Teraflex Tera60 Axle Assembly is compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring and pinion strength.
Please Note:
*** This axle assembly requires a new driveshaft or driveshaft modification.
*** The bolt pattern is 8x6.5 which is different from the factory original 5x5 bolt pattern. New wheels will be required.
| Manufacturers Part Number | 36064304 |
|---|---|
| Product Name | TERA CRD60 FR FLOAT 4.30 ARB 8X6.5 JK |
| Dropdown Value 1 | 4.30 Gear Ratio |
| Prop 65 Message | This product can expose you to chemicals including chromium (hexavalent compounds), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
| Length | 70 |
| Width | 30 |
| Depth | 24 |
| Weight | 440.000000 |
| Hazmat | No |
| Axle Model | Tera60 |
| Axle Position | Front |
| Brand | Teraflex |
| Color | Black |
| Features | Air Locker, With Brakes, With Differential Cover, With Steering Knuckles |
| Included Parts | Axle Assembly |
| Item Returns | This item can be returned |
