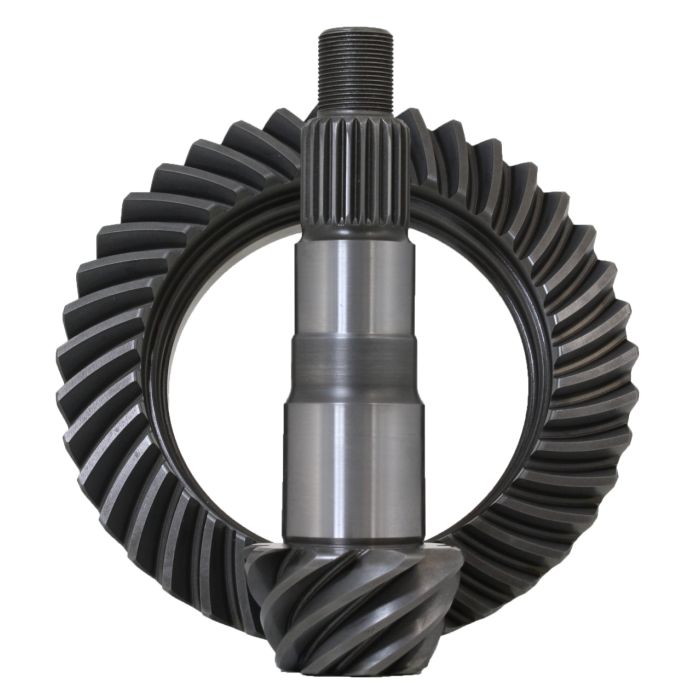

Dana 30 Front Axle Wrangler JK and JL 4.88 Ratio Ring and Pinion Revolution Gear
Upgrade your Jeep Wrangler JK or JL with the Revolution Gear & Axle Dana 30 Front Axle Ring and Pinion, designed specifically for non-Rubicon models. This high-performance gear set offers optimized gear ratios ranging from 4.10 to 5.38, enhancing torque delivery for better traction and control during off-road adventures and towing. Made from high-grade steel and precision-engineered, these gears ensure superior strength, durability, and quiet operation, meeting or exceeding OEM standards. Additionally, the correct gear ratio can improve fuel efficiency by optimizing engine RPM at highway speeds.
Ring and Pinion Specs:
- Ring Gear Rotation: Reverse
- Pinion Splines: 26
- Material: 8620
- Ring Gear Diameter: 7.2 Inch
- Ring Gear Bolt Thread: 10 x 3/8 Inch
- Differential: Dana 30|Dana 186MM
- Carrier Break: 3.55/3.73 Ratio
- Cover Bolts: 10 Bolt|12 Bolt
Optimized Gear Ratios: Available in ratios from 4.10 to 5.38, these gears improve torque delivery to the wheels, providing better traction and control. This is especially beneficial for off-road adventures and towing heavy loads.
Better Towing Performance: The correct gear ratio increases torque at lower speeds, making it easier to pull heavy loads without straining the engine. Enjoy smoother, more efficient towing for all your gear and trailers.
Superior Strength and Durability: Made from premium-grade 8620 steel and subjected to precision gear cutting and heat treatment processes, these gears meet or exceed OEM standards. They are built to withstand daily driving and extreme off-road conditions.
| Manufacturers Part Number | D30JK-JL-488R |
|---|---|
| Product Name | Dana 30 Front Axle Wrangler JK and JL 4.88 Ratio Ring and Pinion Revolution Gear |
| Dropdown Value 1 | 4.88 Gear Ratio |
| Prop 65 Message | This product can expose you to chemicals including chromium (hexavalent compounds), which are kwn to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
| Length | 15 |
| Width | 11 |
| Depth | 6 |
| Weight | 5.000000 |
| Hazmat | No |
| Axle Model | Dana 30 |
| Axle Position | Front |
| Features | 4.88 Ratio |
| Item Returns | This item can be returned |
