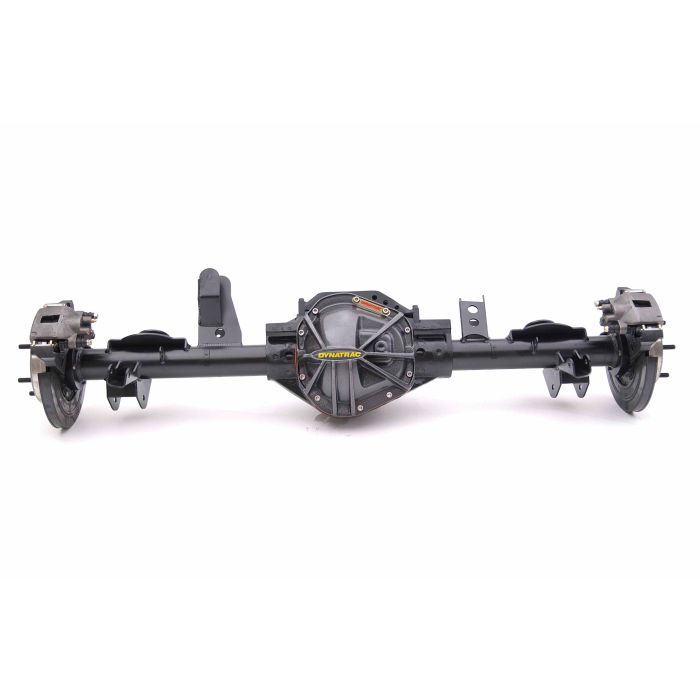

DYNATRAC TRAIL 60 REAR TJ 4.56 ARB
$4,797.99
In stock
SKU
52442-201
Dynatrac Pro-Series Differential Covers offer top-notch protection for your axle's differential. Cast from Dynatrac's own proprietary, nodular iron, Pro-Series Covers provide not only excellent differential protection and unrivaled strength, but also enhance the look of your undercarriage.
- Bullet Proof Differential Protection for your Dana or Dynatrac ProRock 60
- Built in Ribbing for protecting vital differential components
- Adds an aggressive look to your HD Axles
- Promotes greater housing rigidity
- Outstanding Dynatrac Quality
- Manufactured from 100% high-strength, proprietary nodular iron
- Lateral Ribbing cast into the cover for added rigidity
- Lower Ribbing protects delicate differential parts from damage
- Raised fill plug for increased fluid capacity on high pinion angles
- Complete Dynatrac 60 axle assembly with 6 month limited warranty
- Dynatrac Pro 60 Hi-pinion housing
- 35-spline 1.5 induction hardened 1541-H alloy steel axle shafts
- Dual sump/high volume oil system
- Rear disc brake assemblies with parking brake Dual 5 on 4.5" &
- Stock pinion angle
- D60 heavy-duty steel differential cover
- 1310 U-Joint U-Bolt style yoke
- Width 60.5 (stock)
- Billet steel housing ends, large tapered roller axle bearings, and
- Dynatrac Hi-strength TJ Coil Spring Bracket Package
- Assembly is finely detailed with a hi-gloss black finish
All Dynatrac axle assemblies are built from the finest materials and components available, with quality-control checks at 115 points. Hardware is US-sourced Grade 8, with thread locker used on all housing fasteners. Gears are genuine Dana/Spicer or Precision Gear. Dynatrac axle tubes, housings and knuckles are machined to ultra-precise tolerances joined on a special 100-ton press, and heliarc welded for superior strength and longevity. All housings are deburred by hand, painted inside and out, given a smooth finish from housing to axle (for oil flow) and housing bores are fully blueprinted.
| Manufacturers Part Number | QE60-4001-E |
|---|---|
| Product Name | DYNATRAC TRAIL 60 REAR TJ 4.56 ARB |
| Dropdown Value 1 | 4.56 Gear Ratio |
| Prop 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Length | 0 |
| Width | 0 |
| Depth | 0 |
| Weight | 500.000000 |
| Hazmat | No |
| Axle Model | Dana 60 |
| Axle Position | Rear |
| Brand | Dynatrac |
| Features | Locker |
| Included Parts | Trail Series Rear Axle (60.5" Width) Dynatrac Pro 60 High Pinion Housing filled with Gear Fluid Disc Brakes with Dual Bolt Pattern 1310 U-Joint U-Bolt Style Yoke D60 Heavy Duty Differential Cover ARB Air Locker ARB Air Line, Switch & Solenoid |
| Item Returns | This item can be returned |
