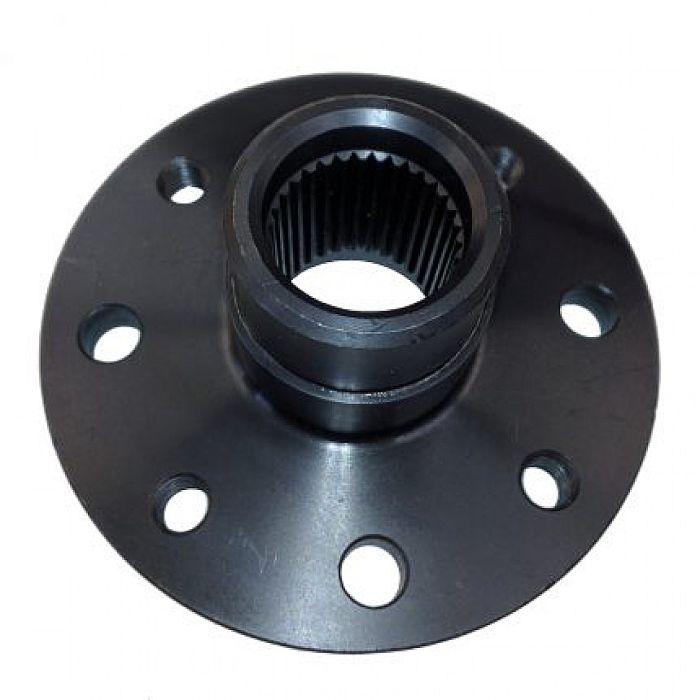

JE REEL TRANSFER CASE FLANGE TJ REAR
$156.75
In stock
SKU
52301-9655
Aftermarket Upgrade For J.E. Reel Drive Shaft Conversions on JK Wrangler Front and TJ Rubicon Rear
Factory Dimensions With a 32 Spline Center and 2" Pilot Diameter, Overall Flange Diameter is 5.5"
Dual Bolt Pattern 4.25" Bolt Circles for Both 12mm Threaded and Non-Threaded Studs
Factory Dimensions With a 32 Spline Center and 2" Pilot Diameter, Overall Flange Diameter is 5.5"
Dual Bolt Pattern 4.25" Bolt Circles for Both 12mm Threaded and Non-Threaded Studs
The J.E. Reel Transfer Case Flange is for TJ era Rubicons and all JK Wranglers that are upgrading their drive shafts and need to eliminate the CV joints from the factory. The dual bolt patterns accommodate both generations of Jeep vehicles for an easy installation.
| Manufacturers Part Number | 3-1-32R-BFGD |
|---|---|
| Product Name | JE REEL TRANSFER CASE FLANGE TJ REAR |
| Length | 11 |
| Width | 9 |
| Depth | 6 |
| Weight | 15.000000 |
| Hazmat | No |
| Brand | J.E. Reel |
| Included Parts | 1 Flange |
| Transfer Case | NV241, NV241OR |
| Item Returns | This item can be returned |
