AAI AX5 EXT SLAVE TO AX15 RETRO FIT CONV
$474.34
In stock
SKU
52251-99
Note: This retro-fit does require some parts from your old AX5 transmission. You'll need to retain the AX5 bell housing and shifter housing.
Note: This adapter plate assembly is for exclusive use with the 1994 & newer AX5 bell housing with the external slave cylinder only!!!
Transfer Case
The NP231 transfer case always used a 21 spline input gear with the AX5 transmission. When installing the AX15, the transfer case must have a new 23 spline input installed. We offer two 23 spline input gears for the Jeep NP231: P/N 716054 1988 to 1994 NP231 P/N 716095 1995 & UP NP231 (when using this gear with the AX15, the input gear must be shortened).

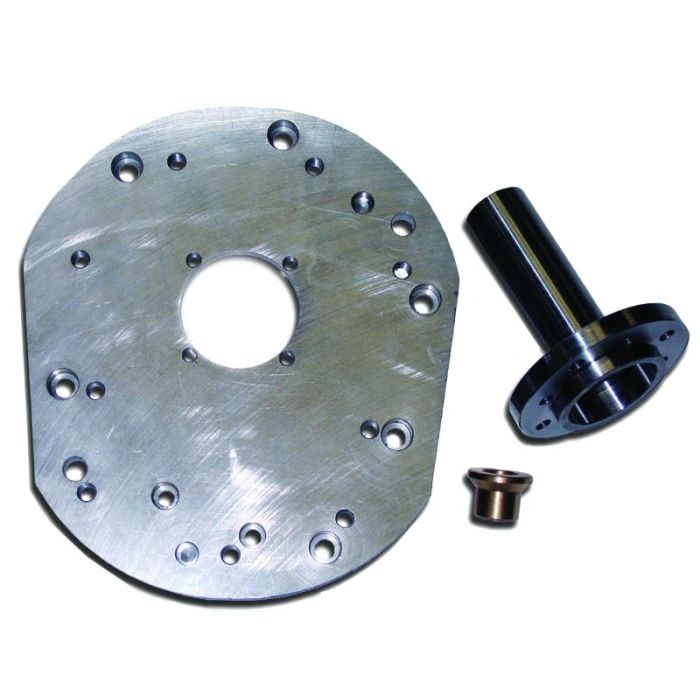

This adapter plate kit allows you to upgrade from the AX5 to a AX15 transmission. The adapter kit includes a adapter plate, throw-out bearing snout, throw-out bearing assembly, crossmember spacers, AX5 dowel pin, pilot bushing (fits late AX15 1997 & newer), AX15 seal, clutch disc, fastening hardware and adapter instructions.
| Manufacturers Part Number | 712563 |
|---|---|
| Product Name | AAI AX5 EXT SLAVE TO AX15 RETRO FIT CONV |
| Dropdown Value 1 | AAI AX5 EXT SLAVE TO AX15 RETRO FIT CONV |
| Depth | 0 |
| Hazmat | No |
| Length | 0 |
| Weight | 20.000000 |
| Width | 0 |
| Prop 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Brand | Advance Adapters |
| Transmission | AX15, AX5 |
| Item Returns | This item can be returned |
